LR7-72HGD 585~620M
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
50,000 PCS/Month

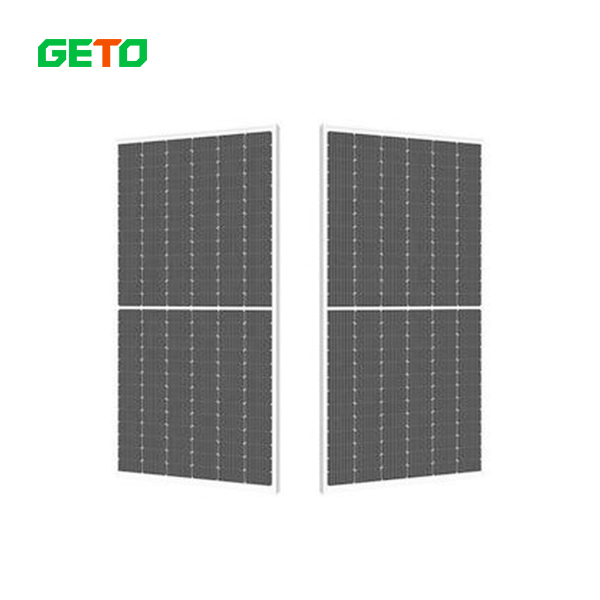

PRODUCT DESCRIPTION

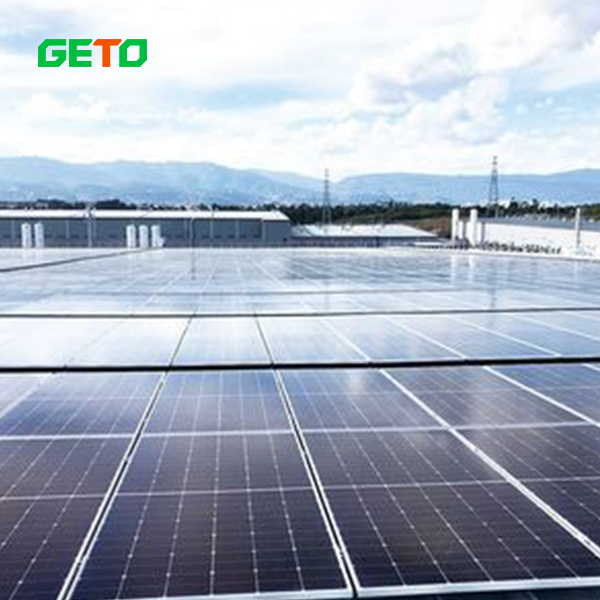

● High-performance PV modules for utility power plants
● Advanced HPDC cell technology delivers superior moduleefficiency and power
● High bifaciality and excellent power temperature coefficient achieves high energy yield
● LONGi lifecycle quality ensures long term performance
PRODUCT SPECIFICATION
| Cell Orientation | 144(6×24) | |||||||
| Junction Box | IP68, three diodes | |||||||
| Output Cable | 4mm², +400, -200mm/±1400mm(length can be customized) | |||||||
| Glass | Dual glass, 2.0+2.0mm semi-tempered glass | |||||||
| Frame | Anodized aluminum alloy frame | |||||||
| Weight | 33.5kg | |||||||
| Dimension | 2382×1134×30mm | |||||||
| Packaging | 36pcs per pallet/144pcs per 20'GP/720pcs per 40'HC | |||||||
| Operational Temperature | -40°C~+85°C | |||||||
| Power Output Tolerance | 0~3% | |||||||
| Maximum System Voltage | DC1500V (IEC/UL) | |||||||
| Maximum Series Fuse Rating | 30A | |||||||
| Nominal Operating Cell Temperature | 45±2℃ | |||||||
| Protection Class | Class ll | |||||||
| Bifaciality | 80士5% | |||||||
| Fire Rating | UL type 29l EC Class C | |||||||
| Front Side Maximum Static Loading | 5400Pa | |||||||
| Rear Side Maximum Static Loading | 2400Pa | |||||||
| Hailstone Test | 25mm Hailstone at the speed of 23m/s | |||||||
| Temperature Coefficient of lsc | -0.045%/℃ | |||||||
| Temperature Coefficient of Voc | -0.230%/℃ | |||||||
| Temperature Coefficient of Pmax | -0.280%/℃ | |||||||
