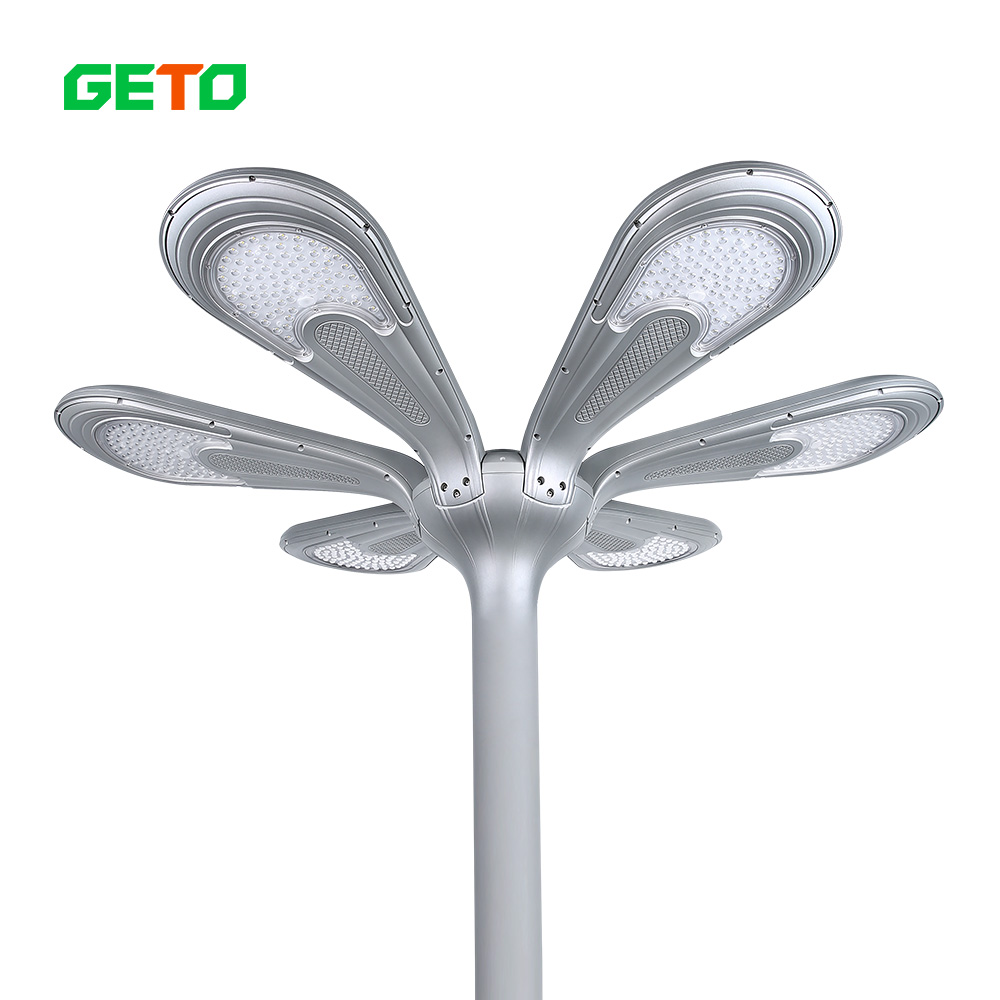

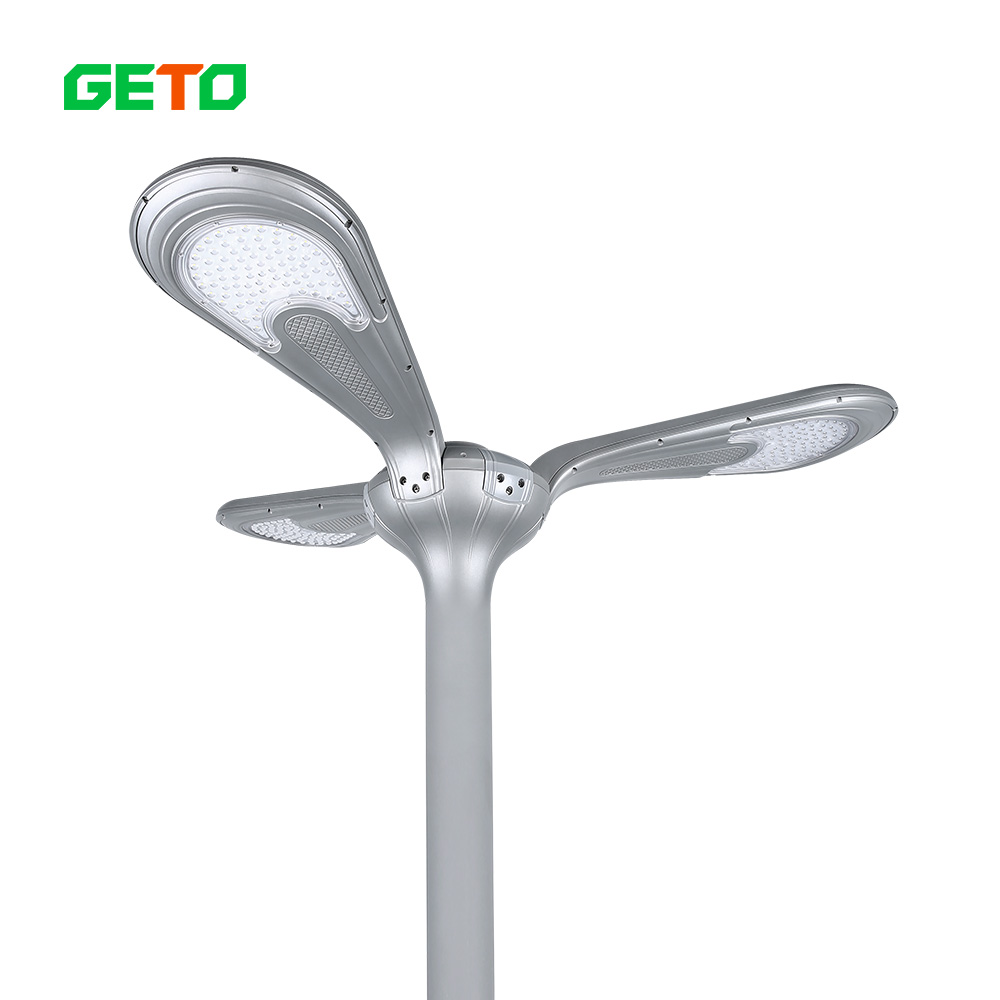

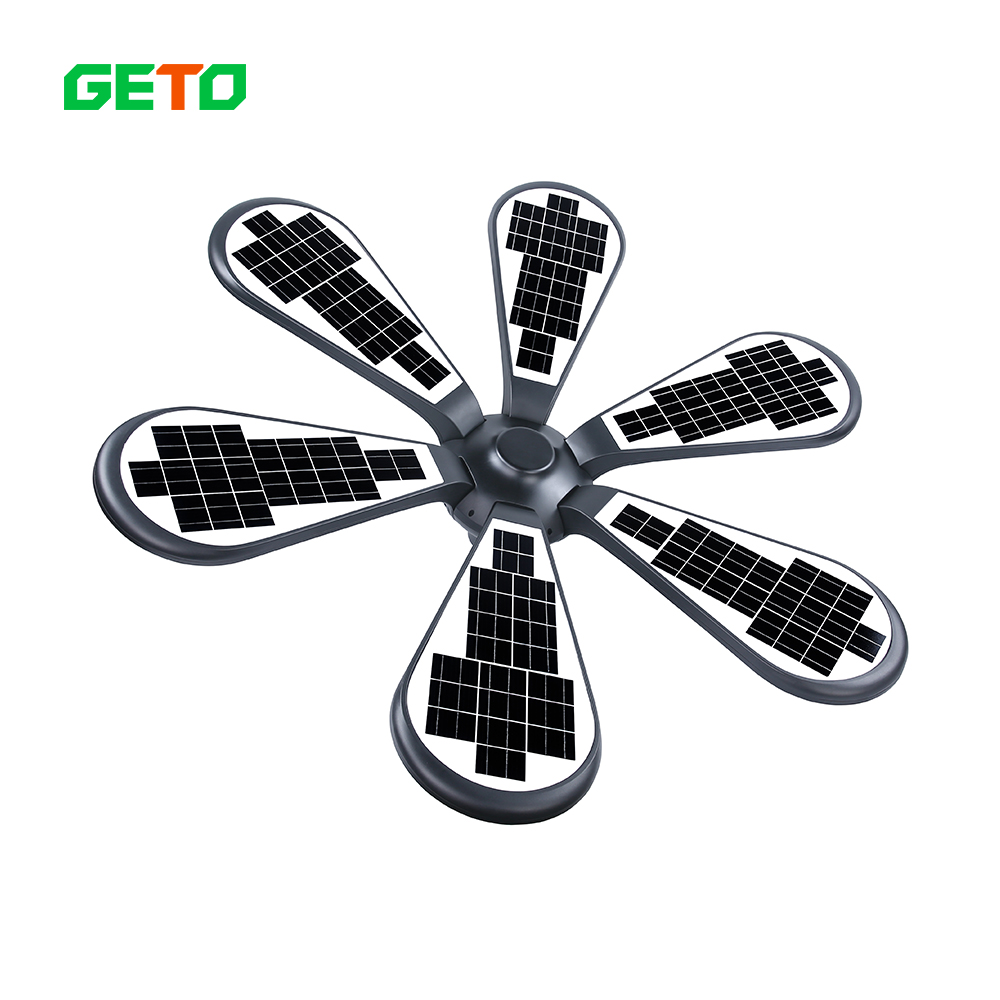

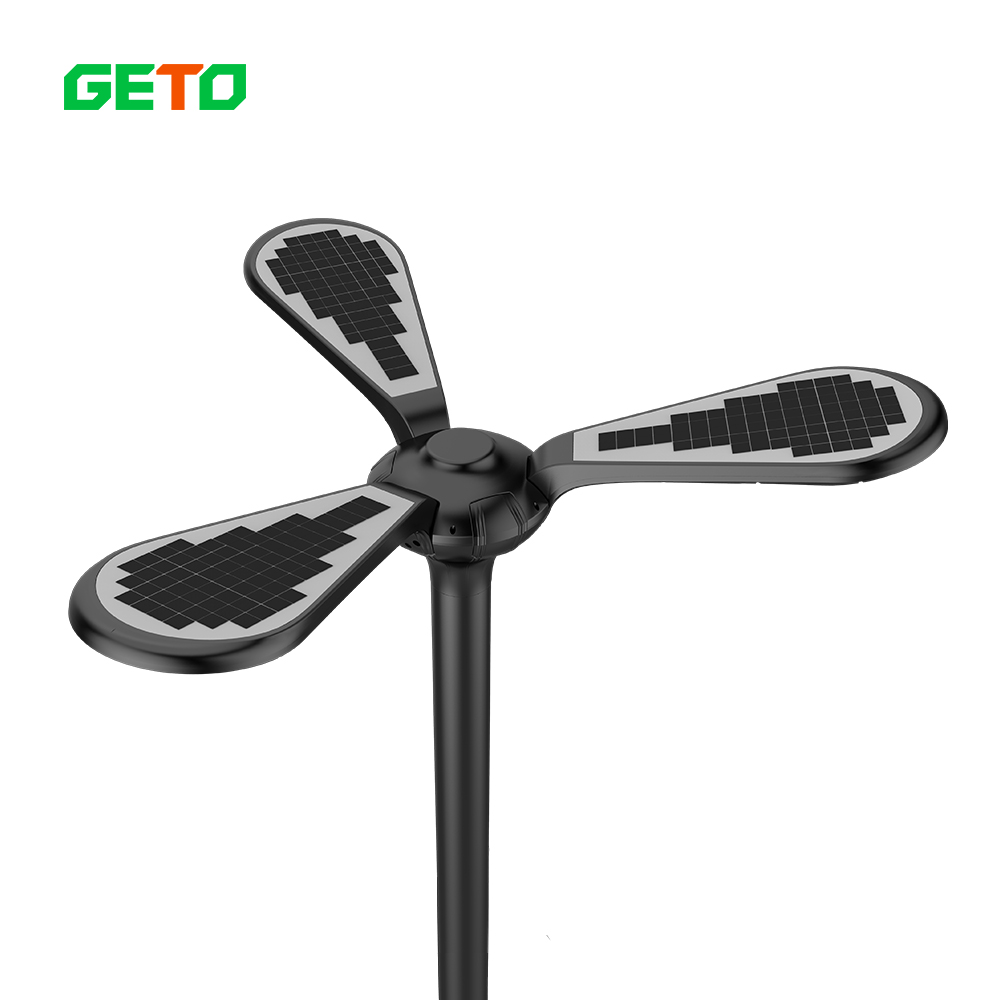

Solar Garden Light TYD-5105
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
5000 PCS/Month
PRODUCT DESCRIPTION

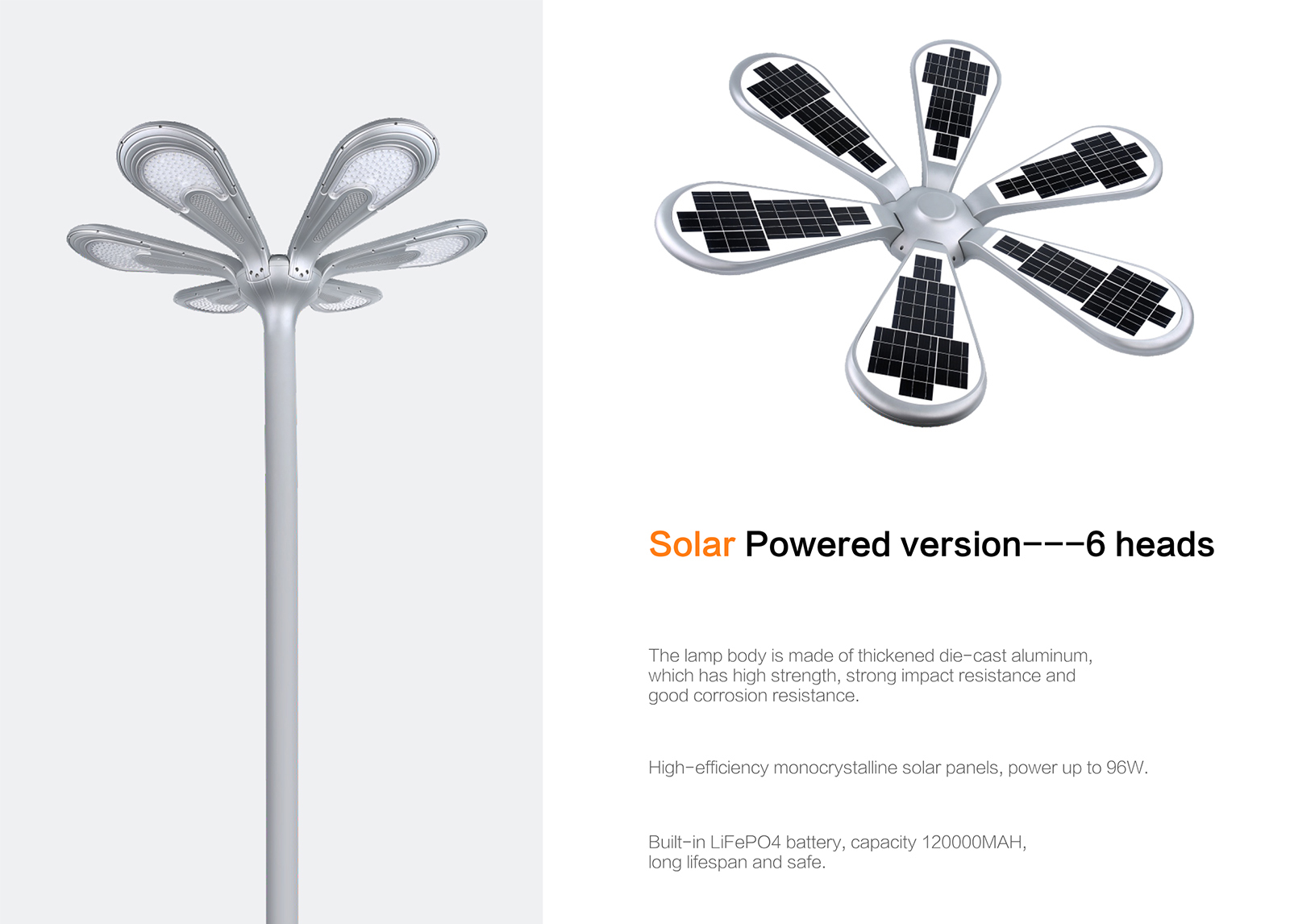

Color Temperature Data-Solar Powered Version
TYPE:
This light type is mainly used in villa gardens, parking areas, park squares community scenic spots, villa courtyards, and modern architectural lighting environments. 360-degree light, the lamp is suitable for installation height of 4~12 meters.
Parameter-Solar Powered Version
| Solar Garden Light | TYD-5105 |
| Monocrystalline Solar Panel(W) | 96W15V(6 Heads), 48W15V(3 Heads) |
| Battery(MAH) | 3.2V/120000mAh, 3.2V/60000mAh |
| Light Source | 3030 SMD LED Chip |
| LED Chip Quantity(pcs) | 480pcs(6 Heads), 240pcs(3 Heads) |
| Material | Die-Casting Aluminum+PC Lens |
| Lamp Color | Grey, Black(Other Colors Can Be Customized) |
| Net Weight(kg) | 27.84kg(6 Heads), 16.50kg(3 Heads) |
| Size(mm) | 1660mmxH435mm |
| Installation Diameter(mm) | Φ 89mm |
| Installation Height | 4m-10m |
| Rated Power(w) | 96W, 48W |
| Input Voltage(V) | DC 3.2V |
| Color Temperature(K) | 3000K-6500K |
| Lumen (lm) | 4325.55lm(3000K), 4648.87lm(6500K) |
| Color Rendering Index | CRI>80 |
| Working Hours(Lighting Sensor) | 12hours(3~5 Rainy Days) |
| Waterproof Level | IP65 |
| Beam Angle | 180° |
| Operating Temperature | -25℃~50℃ |
| Working Humidity | 10%-90% |

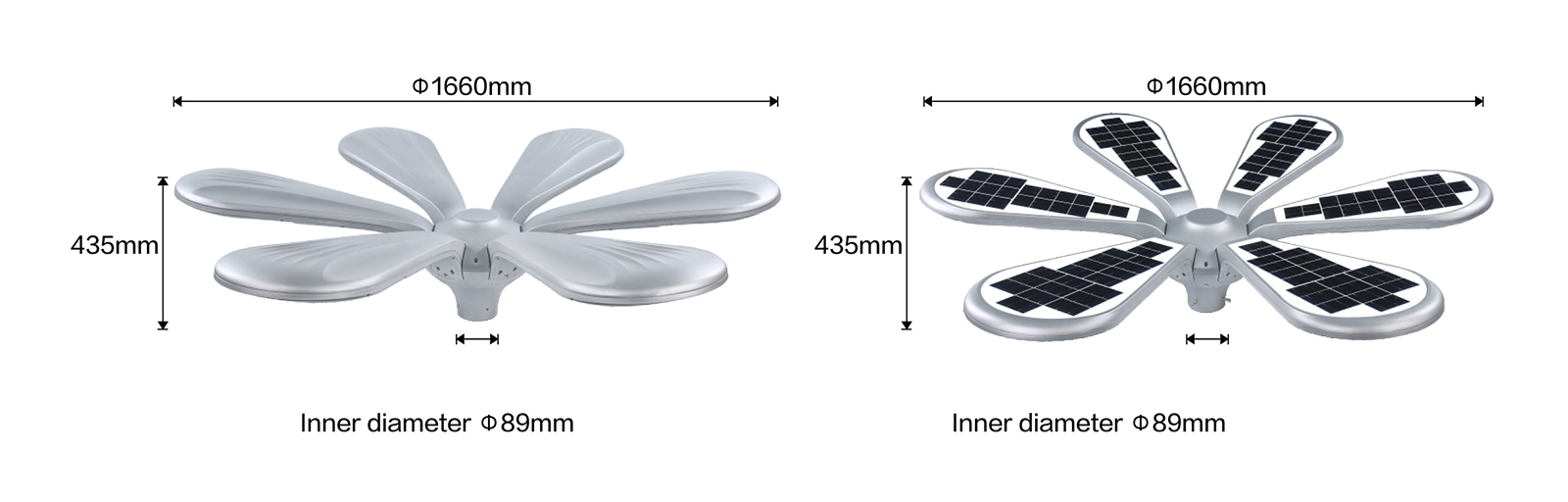

Lamp Size Diagram

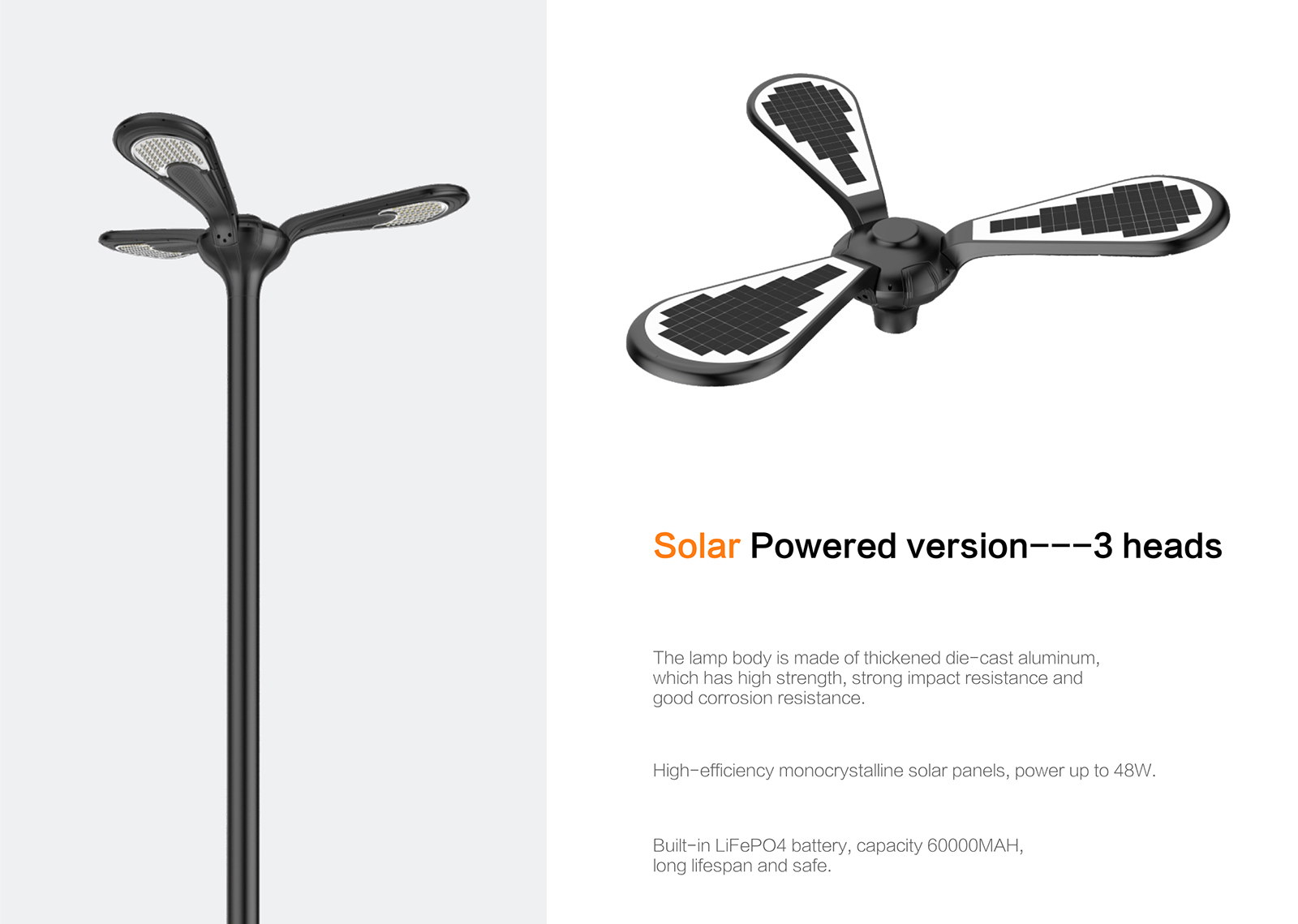

Lighting Features

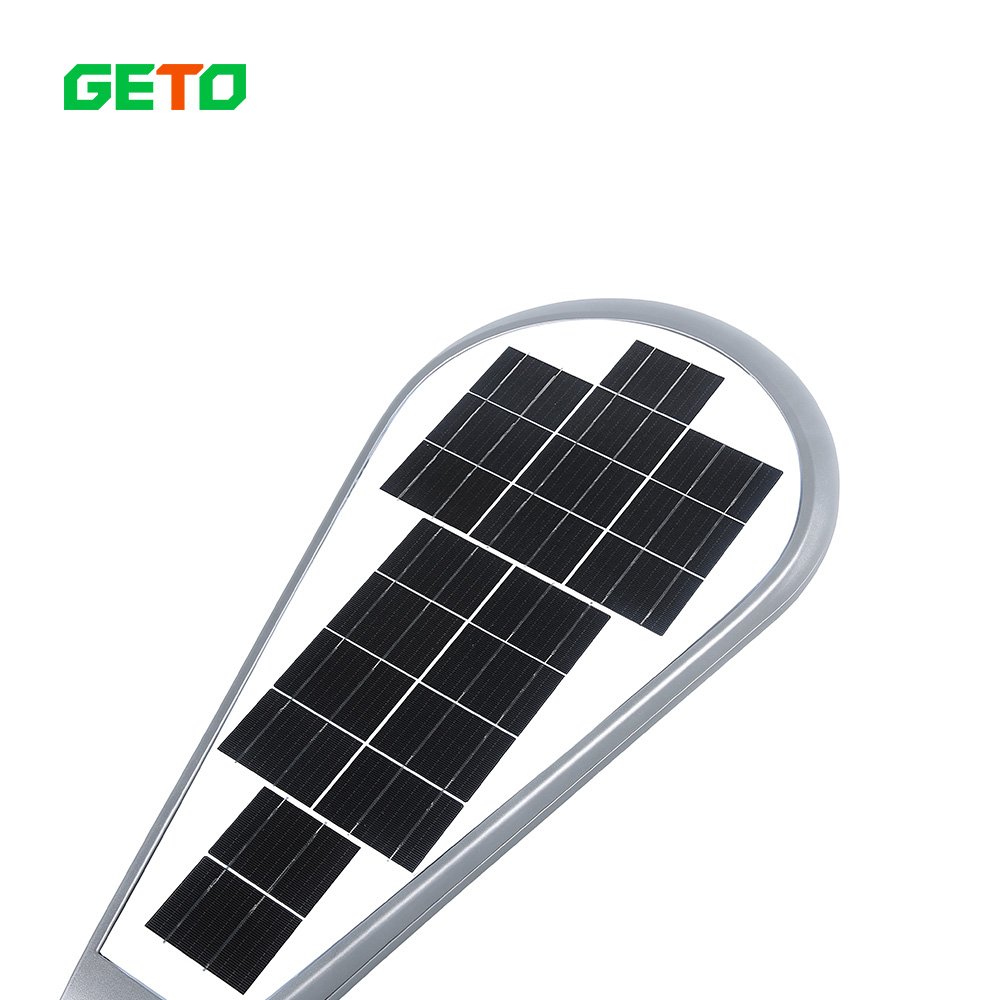

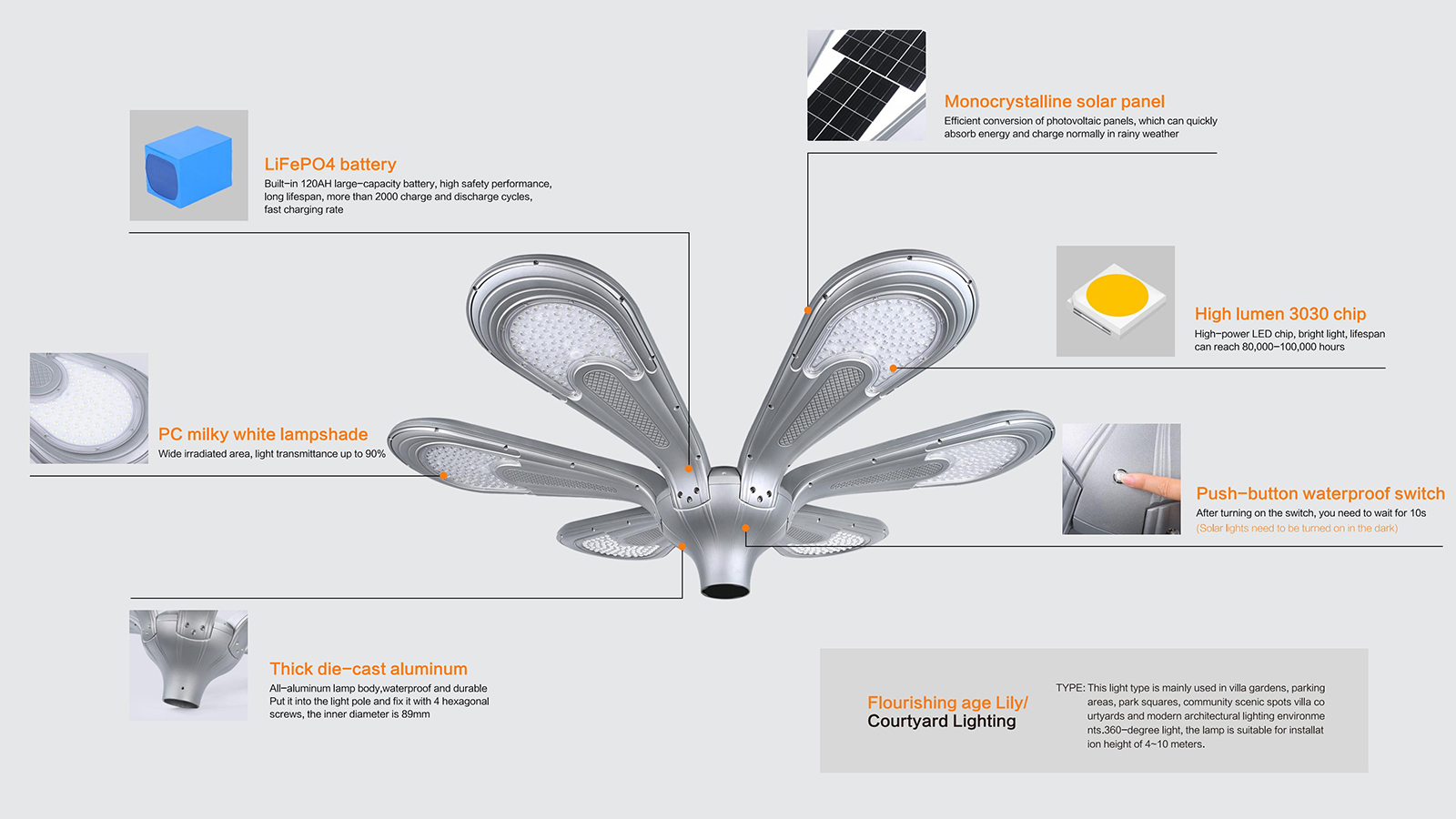

Lamp Details

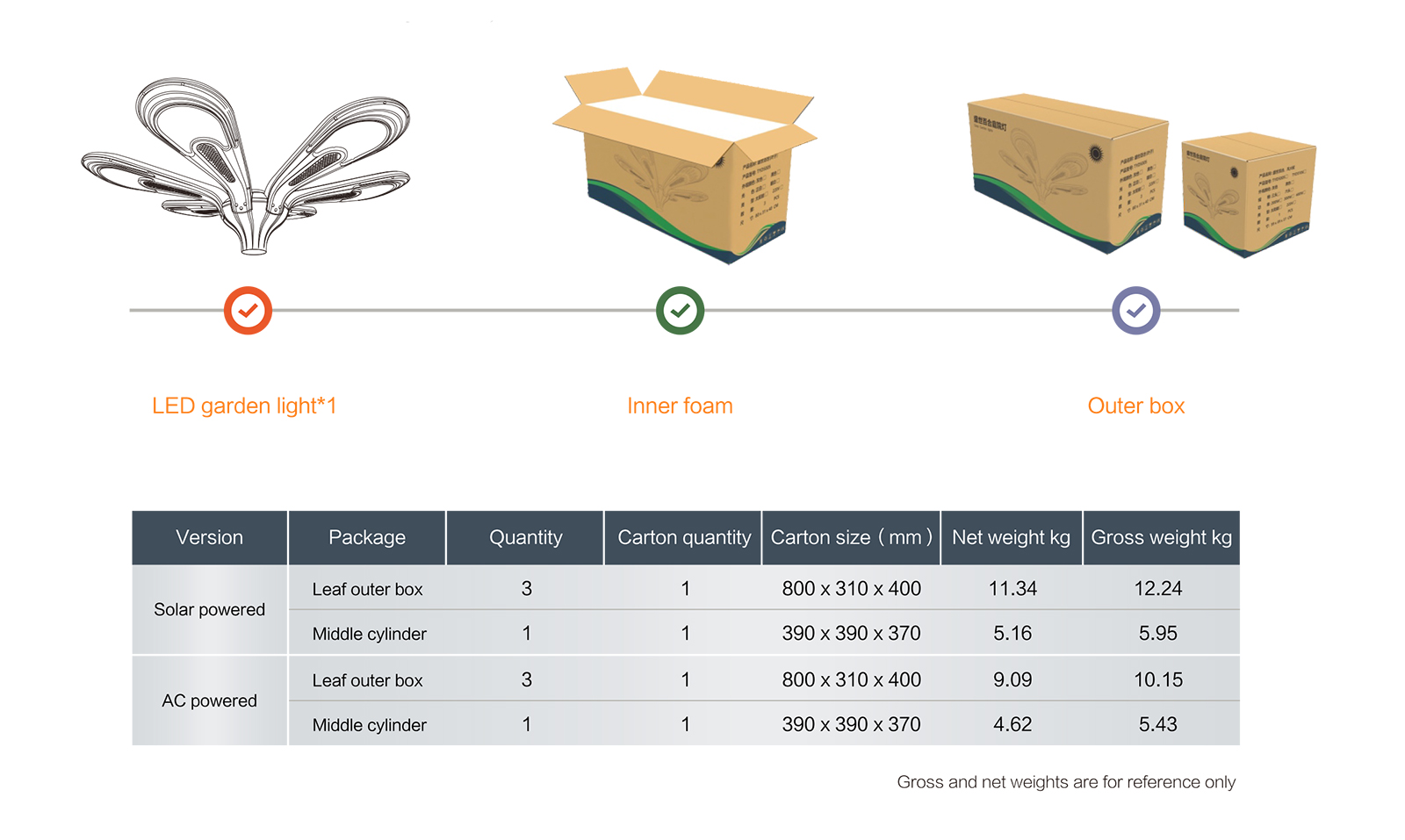

Packaging Information

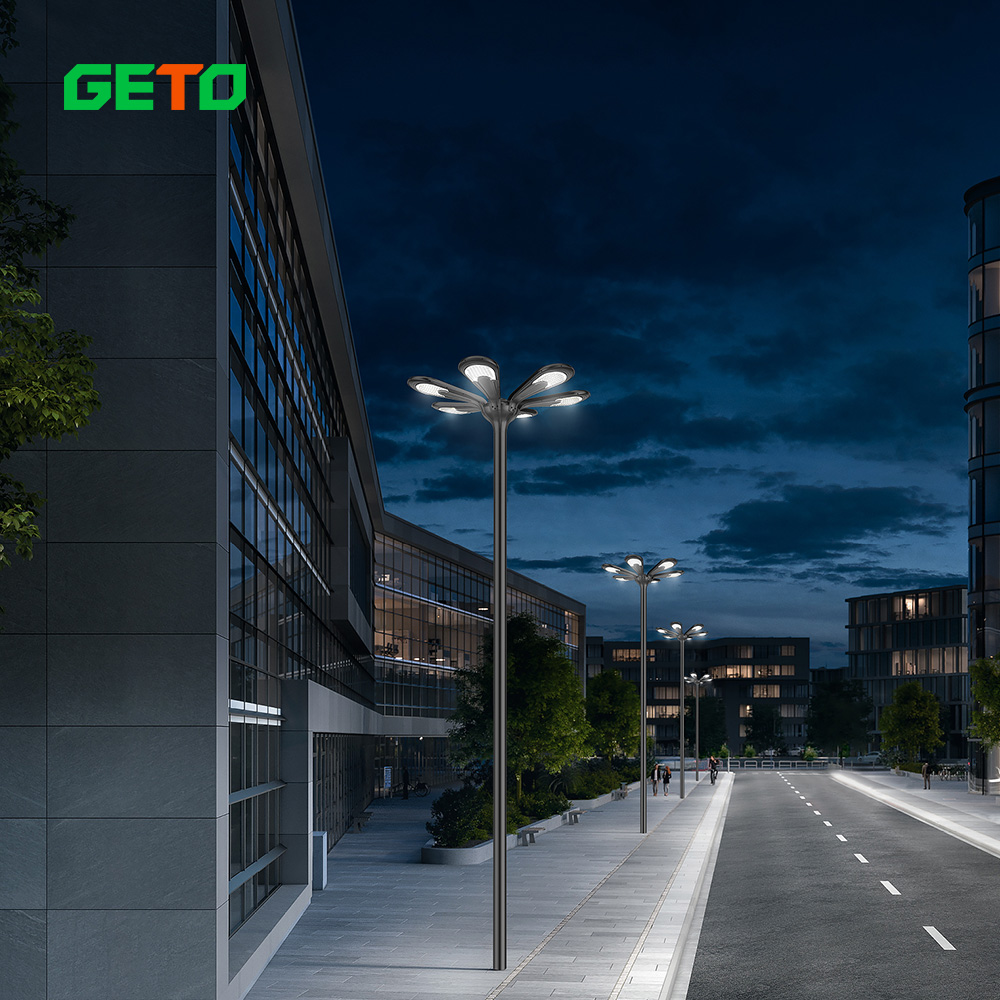

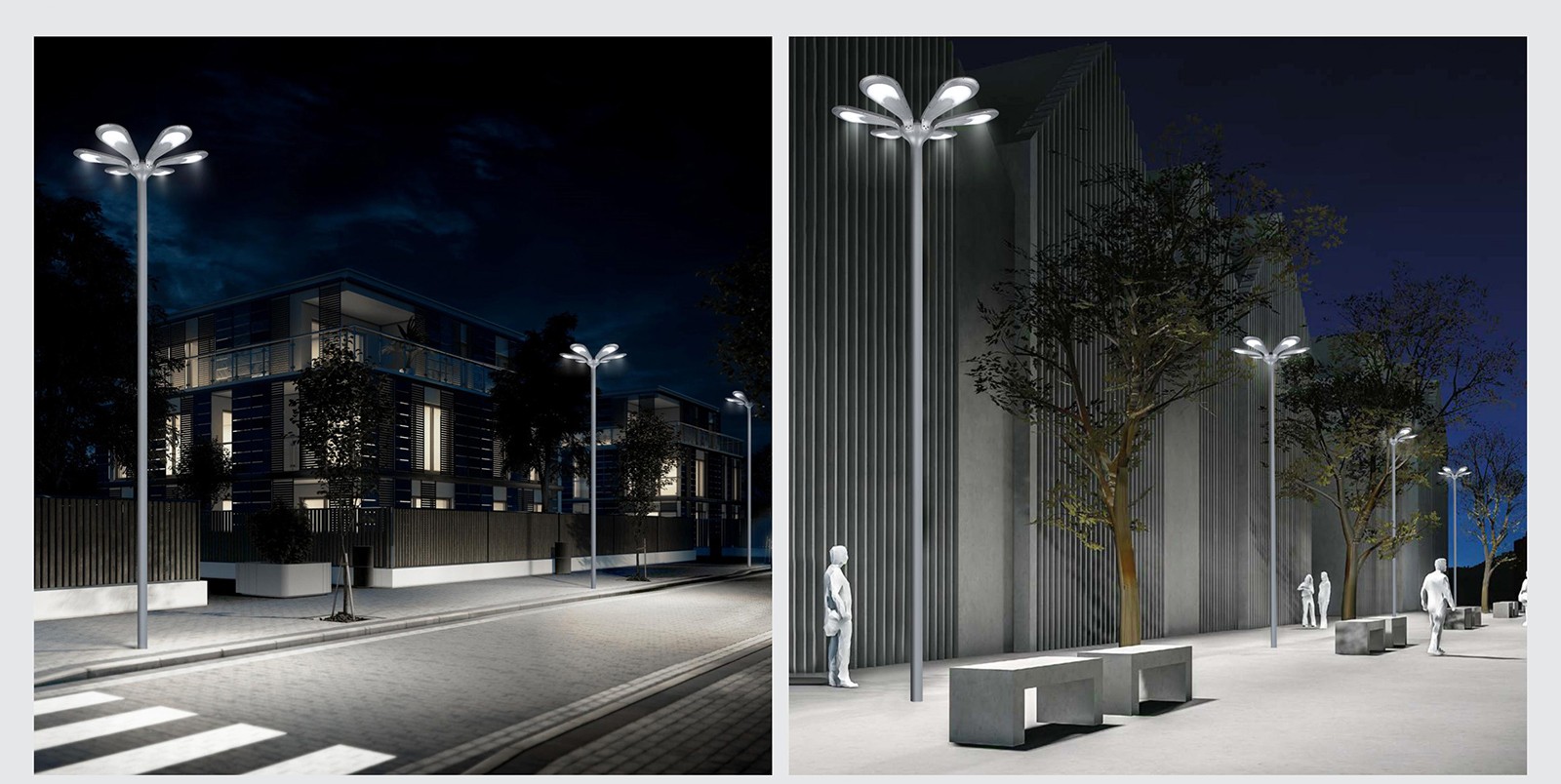

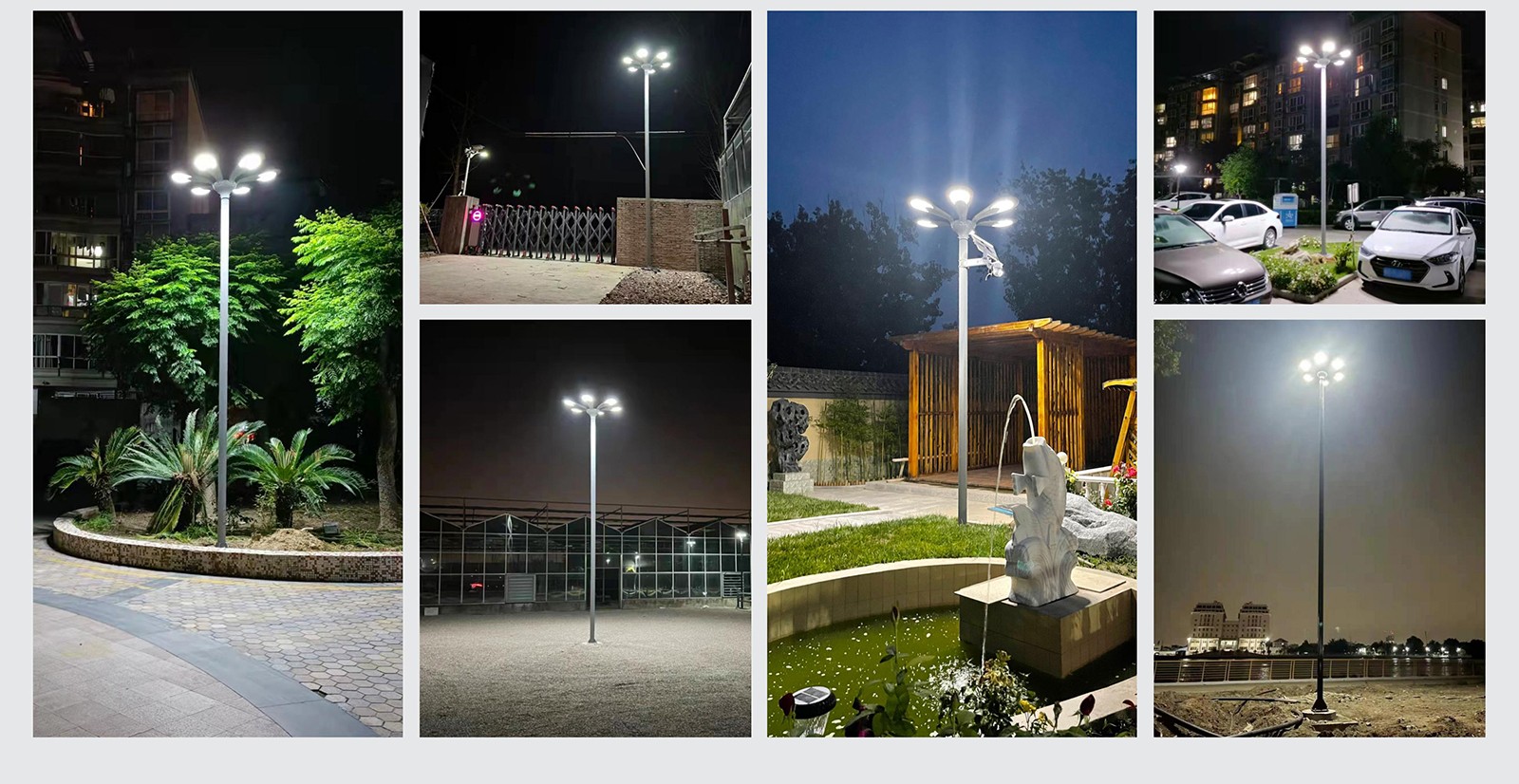

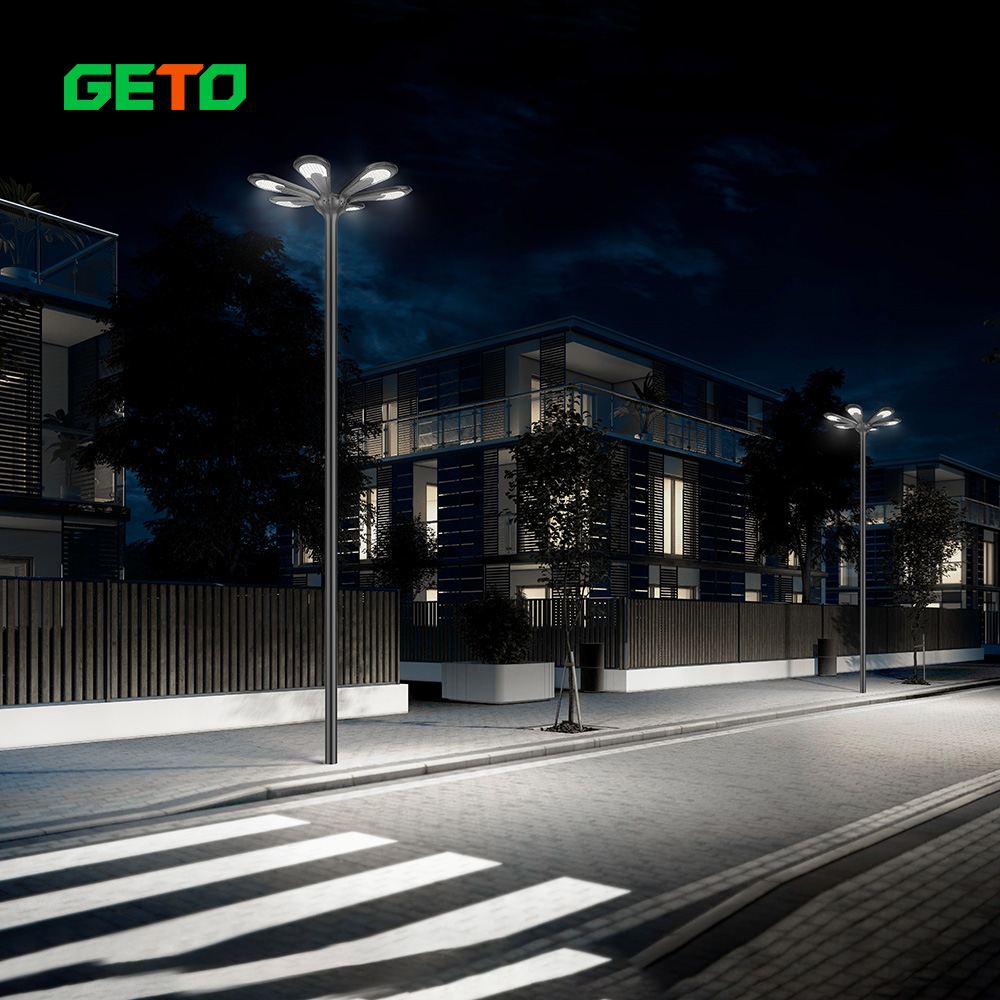

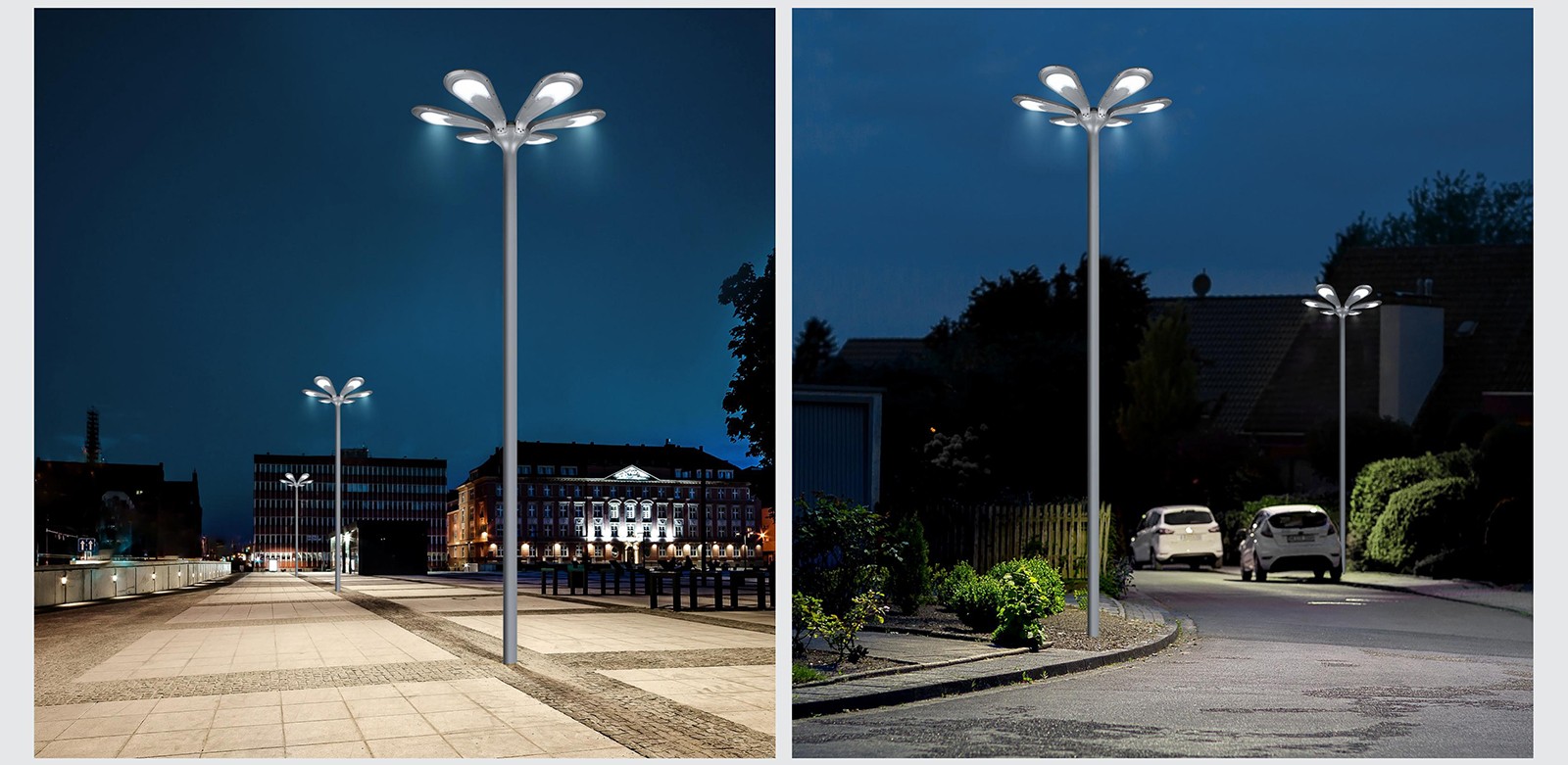

Application
