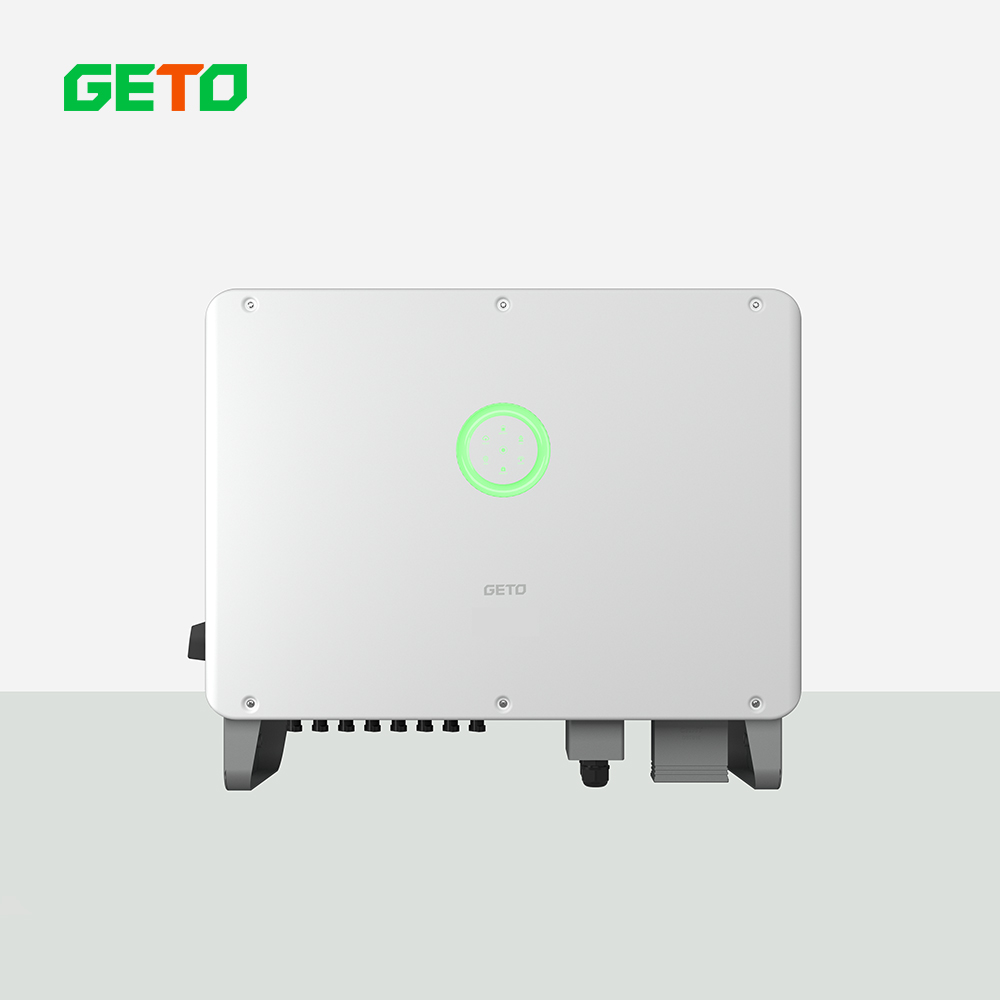

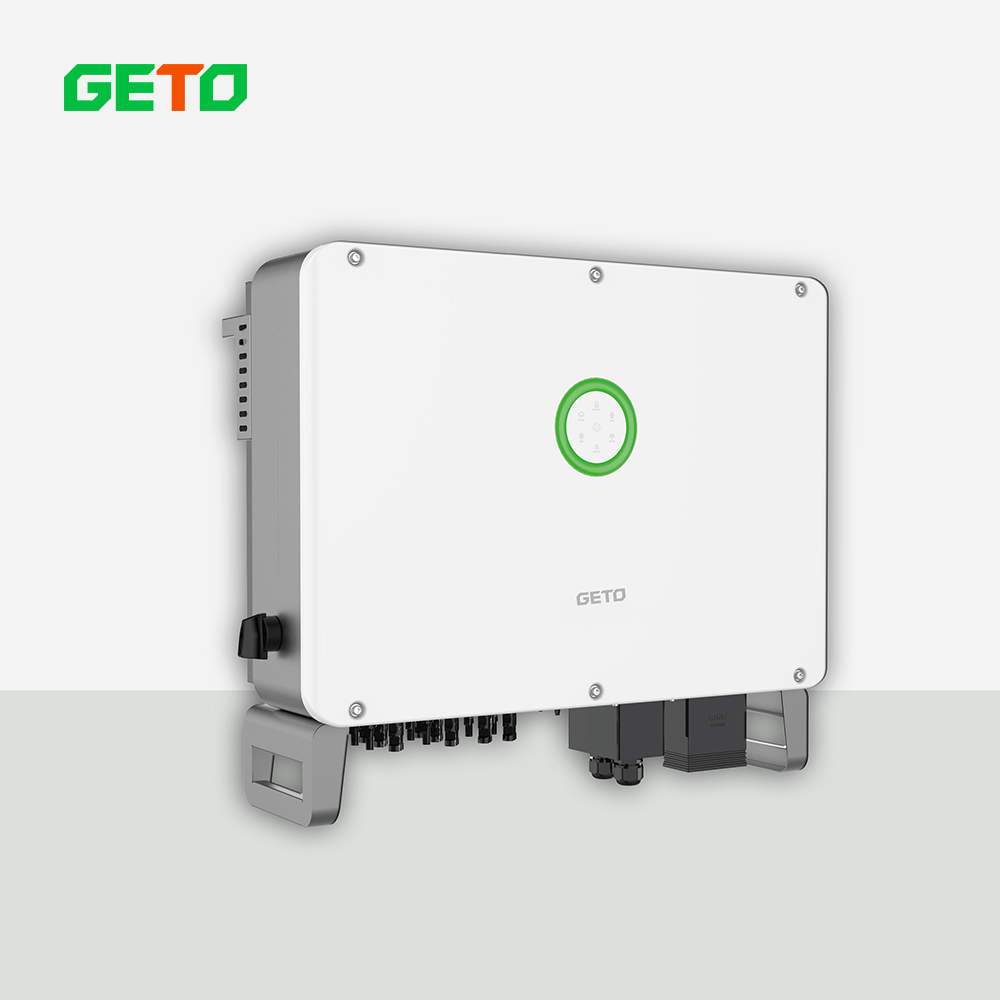

H2 Three Phase Hybrid Inverter
Solar Hybrid Inverter
Three Phase (Single Phase available)
Option: 10KW, 12KW, 15KW, 20KW, 25KW, 30KW
Others: IP65 / 5 Years Warranty / VPP / Smart Energy Management

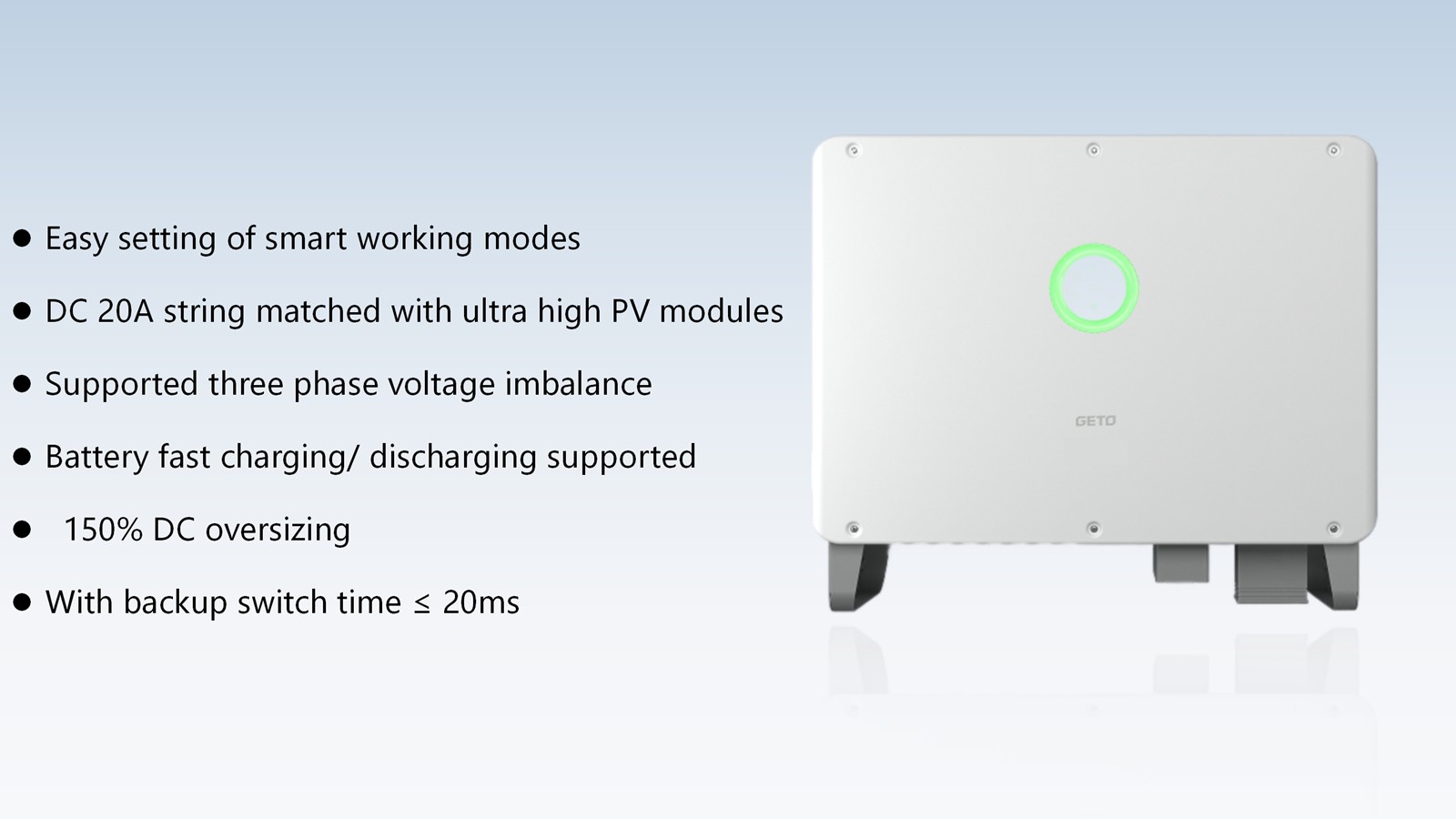

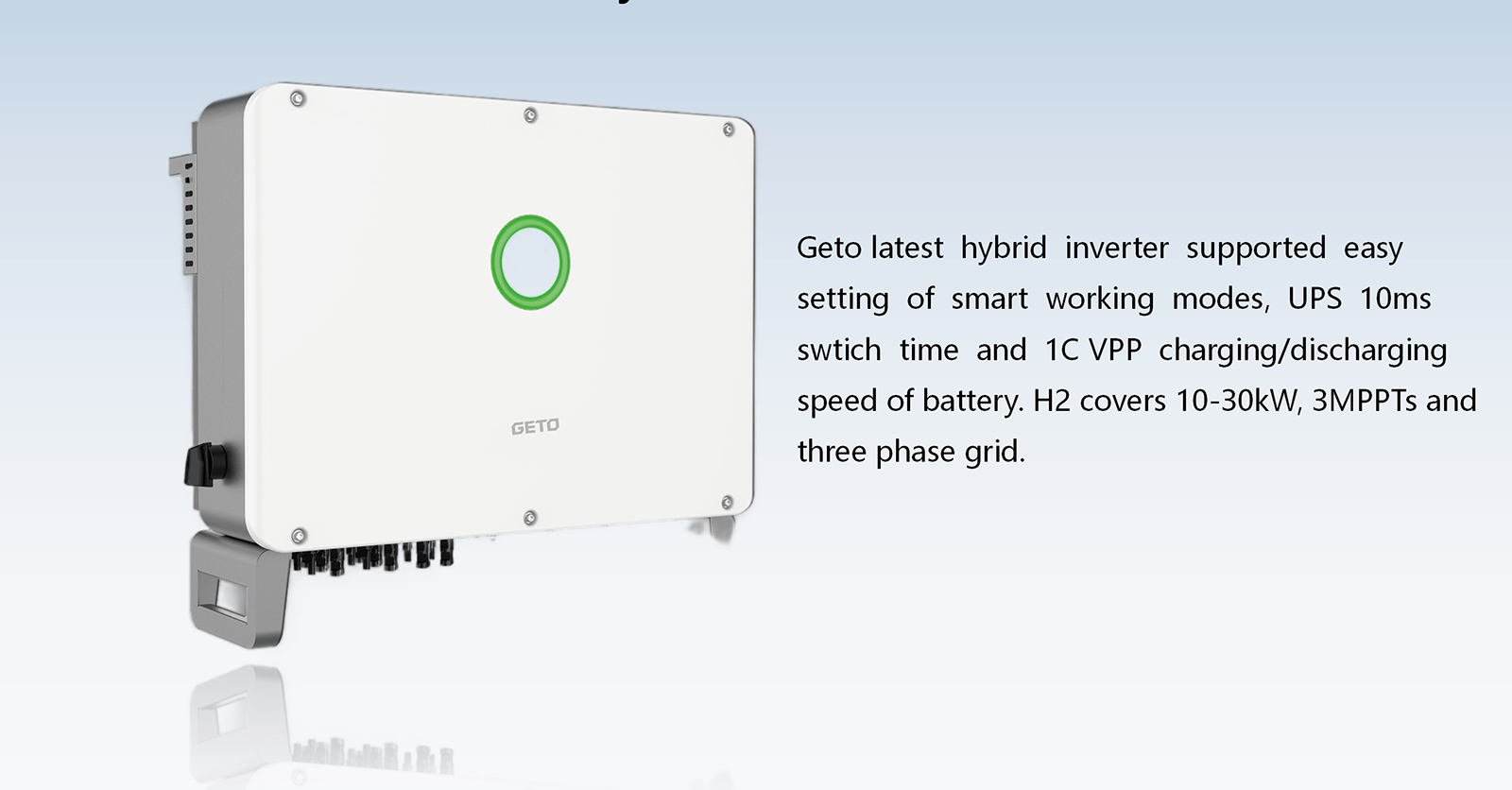

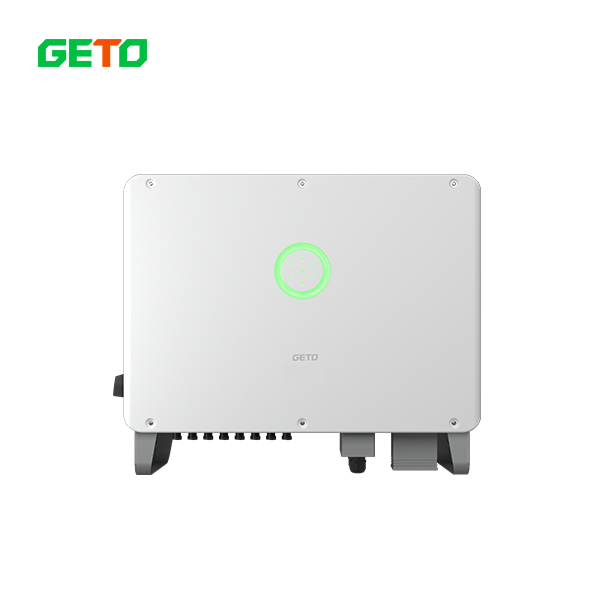

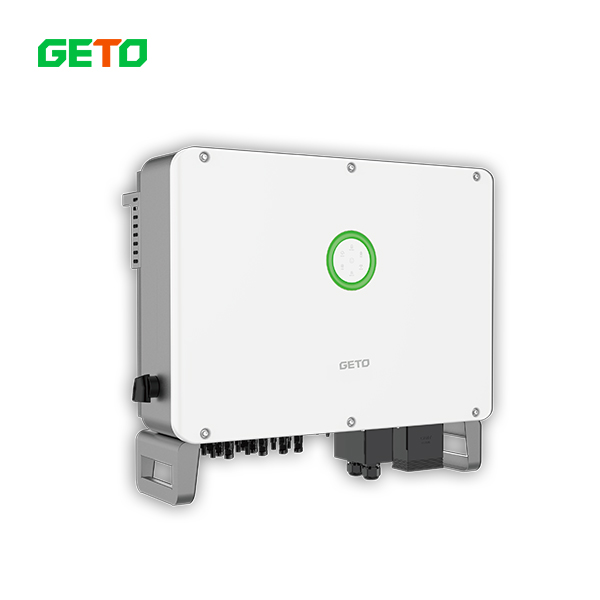

H2 10-30K Three Phase Hybrid inverter

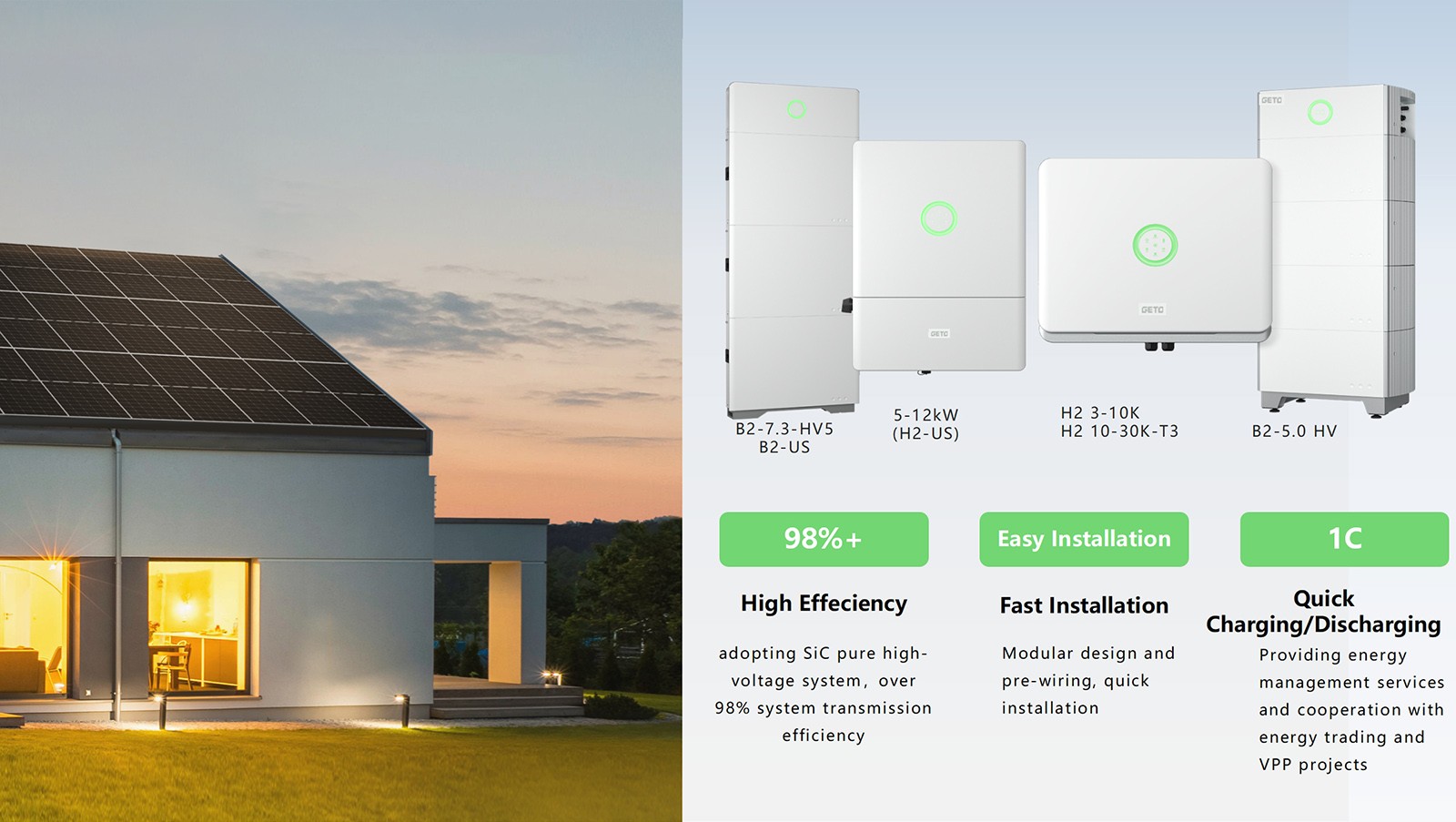

High Voltage Family: H2 Inverter + B2 Battery Module-HV

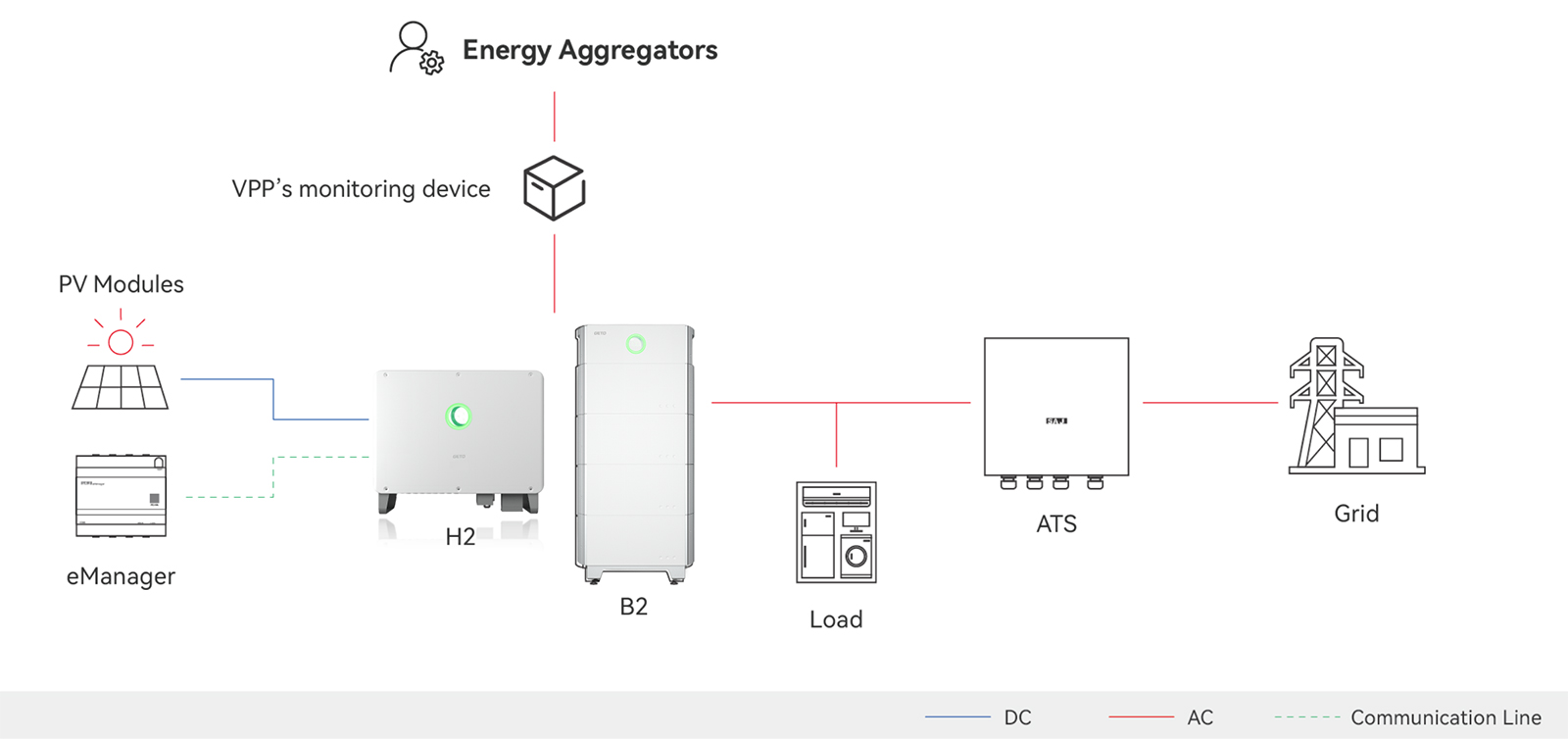

Solution 1:H2+ B2
Cloud-to-Cloud Integration

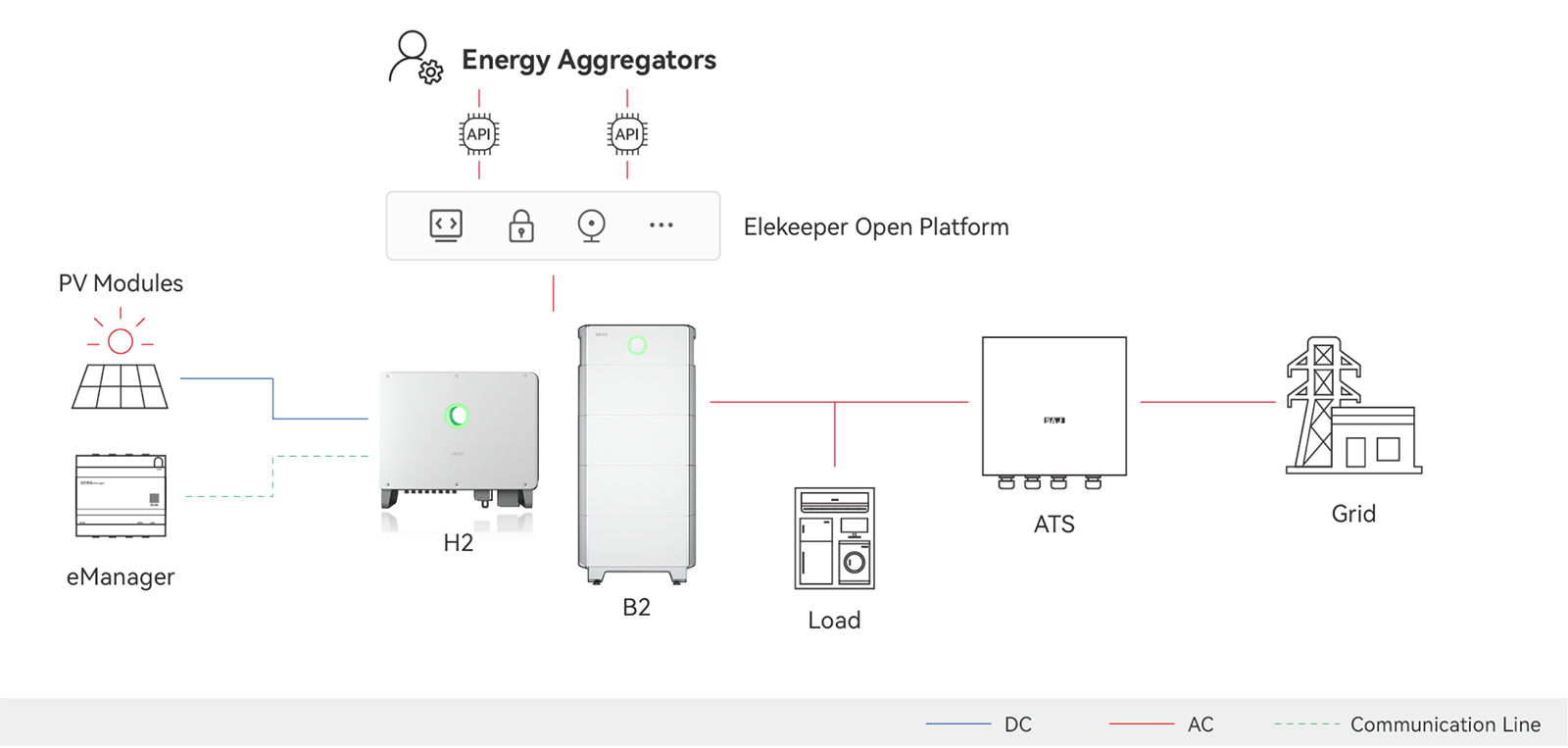

Solution 2: H2+B2
Hardware Integration

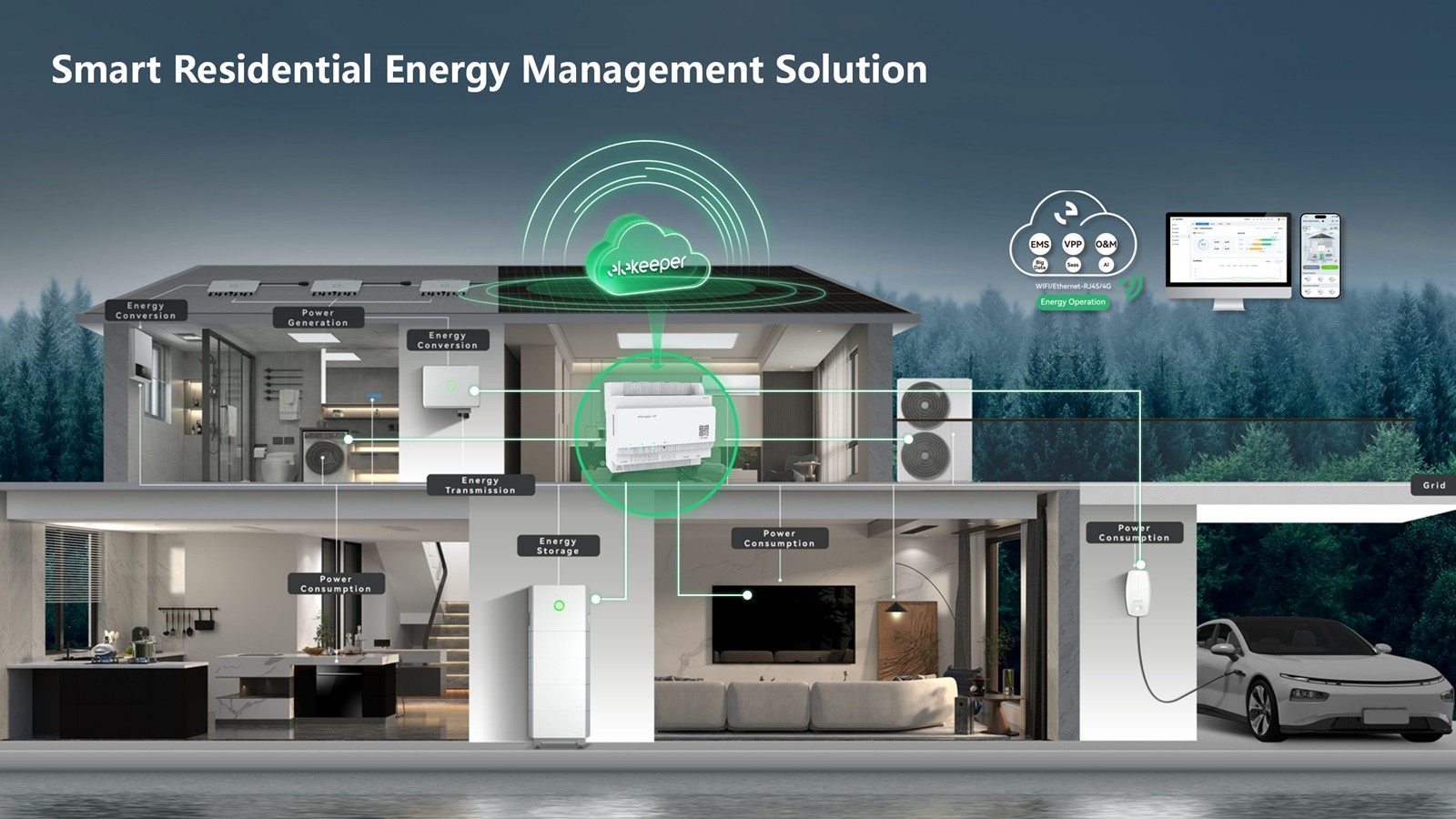

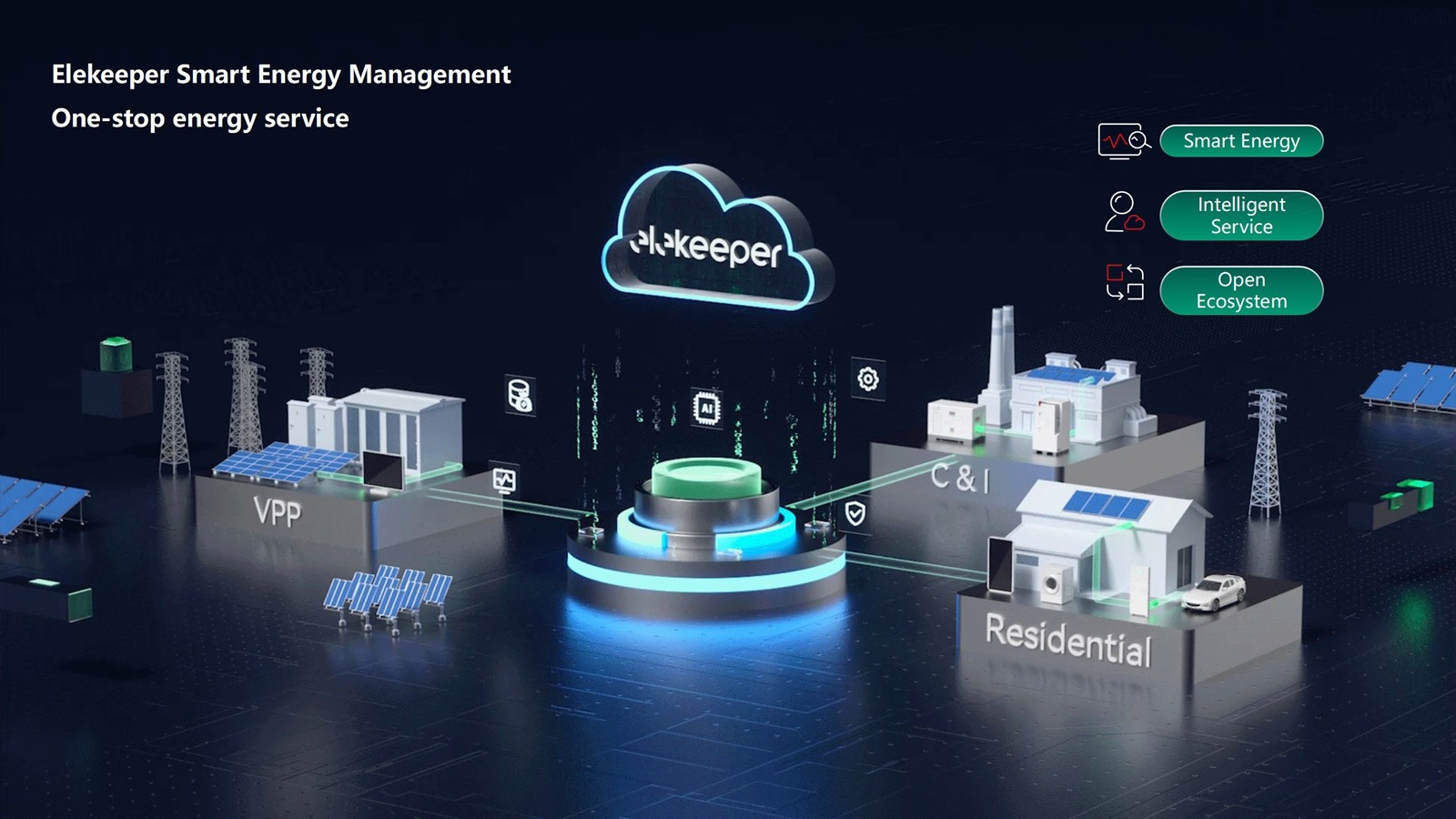

The eleX residential energy management solution, powered by advanced Al-based technology ellanager, is specifically designed for residential scenario and offers a holistic software and hardware integration solution that covers energy generation, storage, consumption, and operation, enabling effective closed-loop energy management and operation within residential settings. By leveraging three core algorithms - power generation prediction, load prediction, and optimal energy utilization strategy - eleX can achieve Al-driven energy savings by 20% with just one click, helping users minimize energy costs while maximizing return on investment.

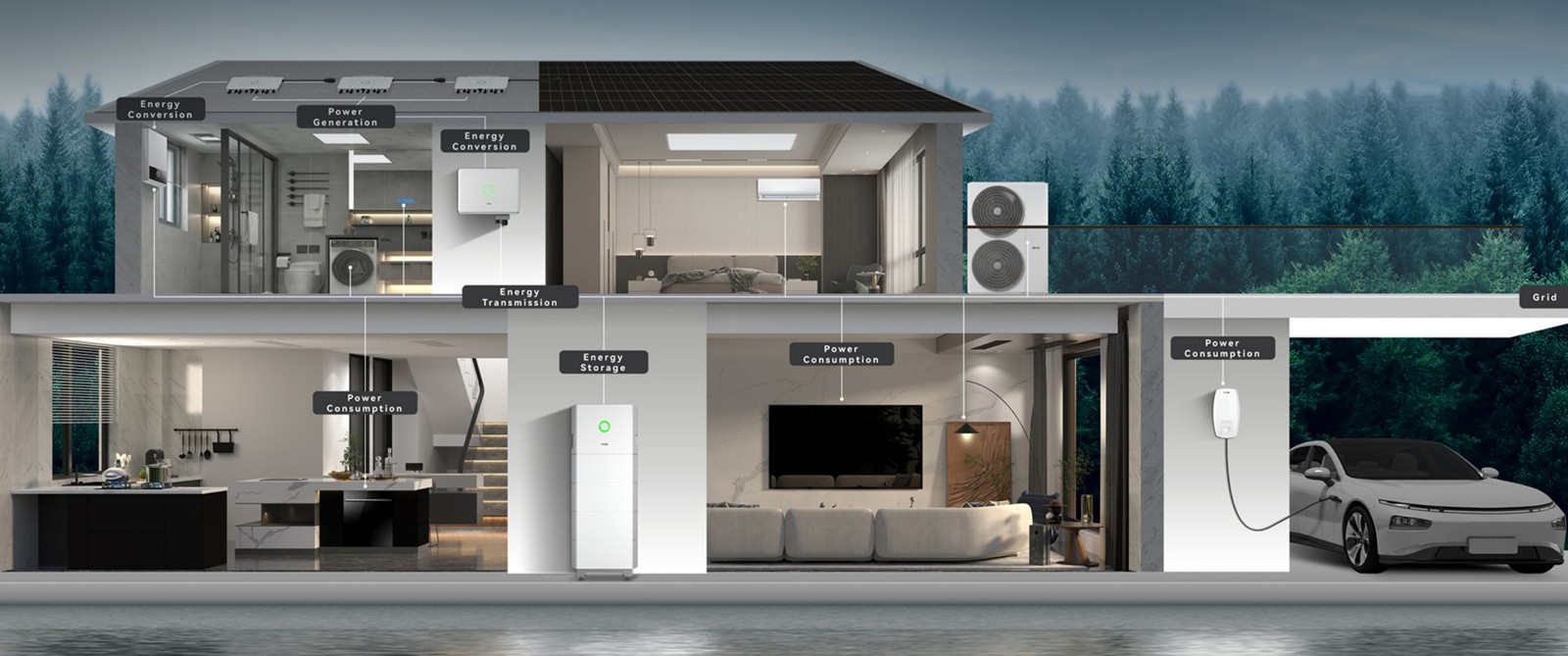

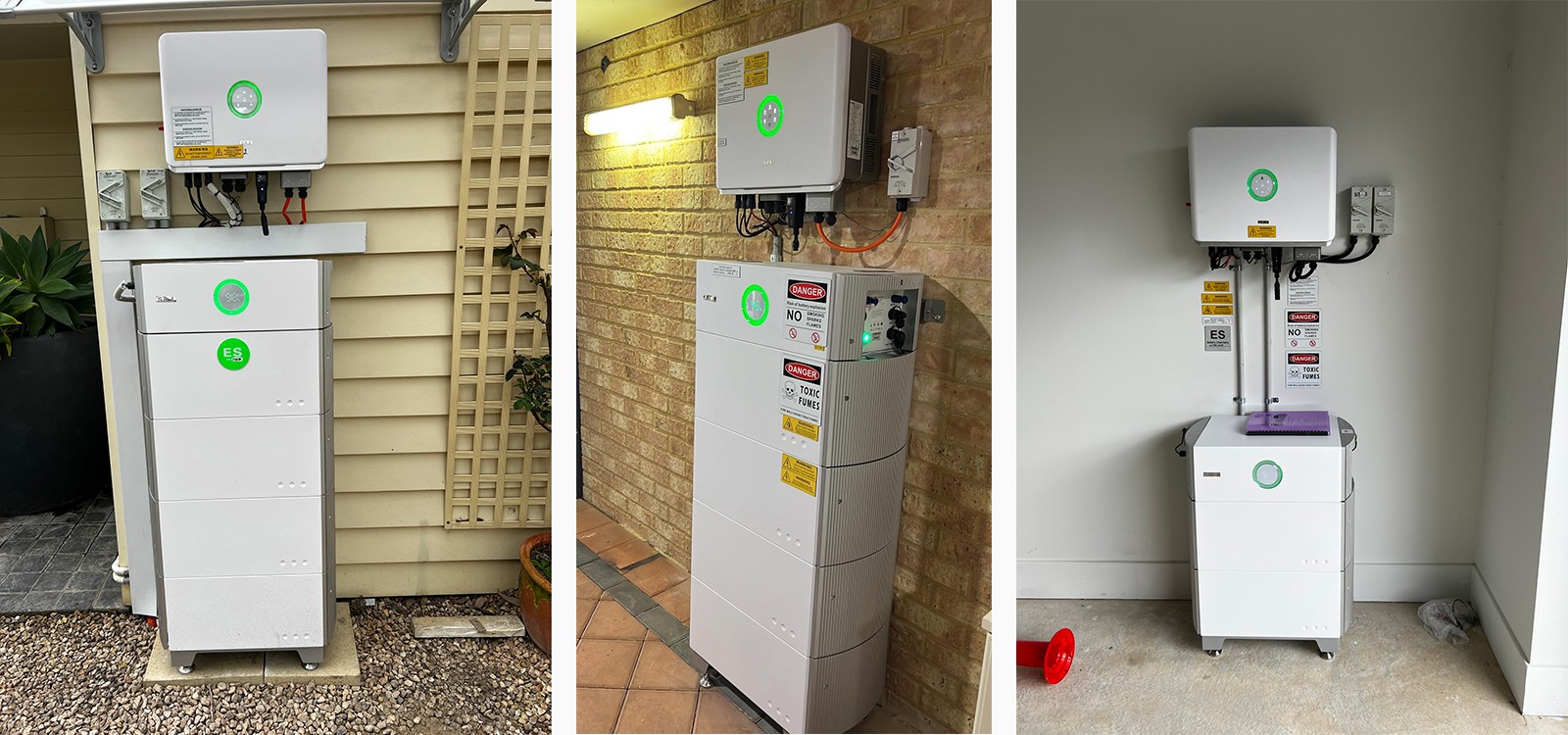

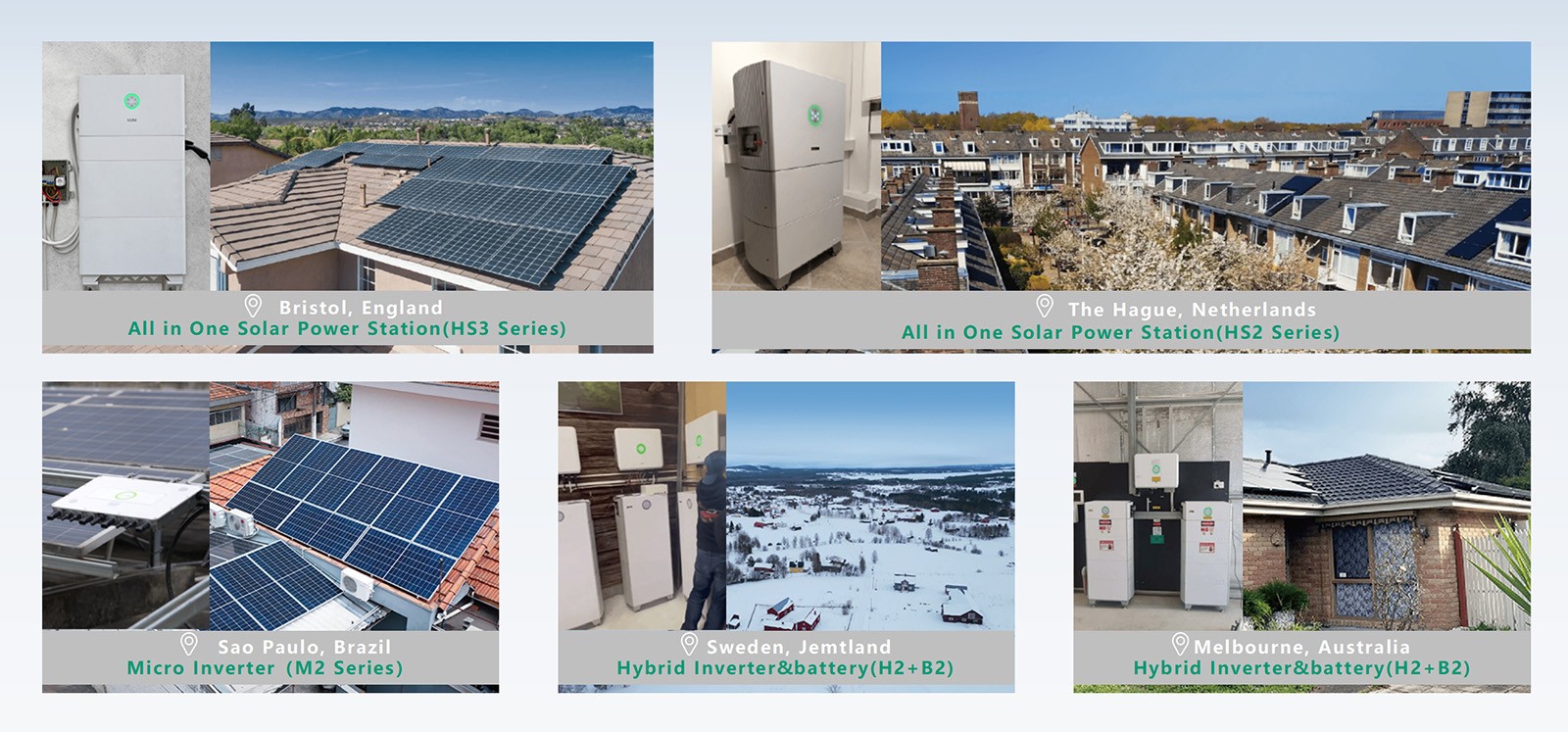

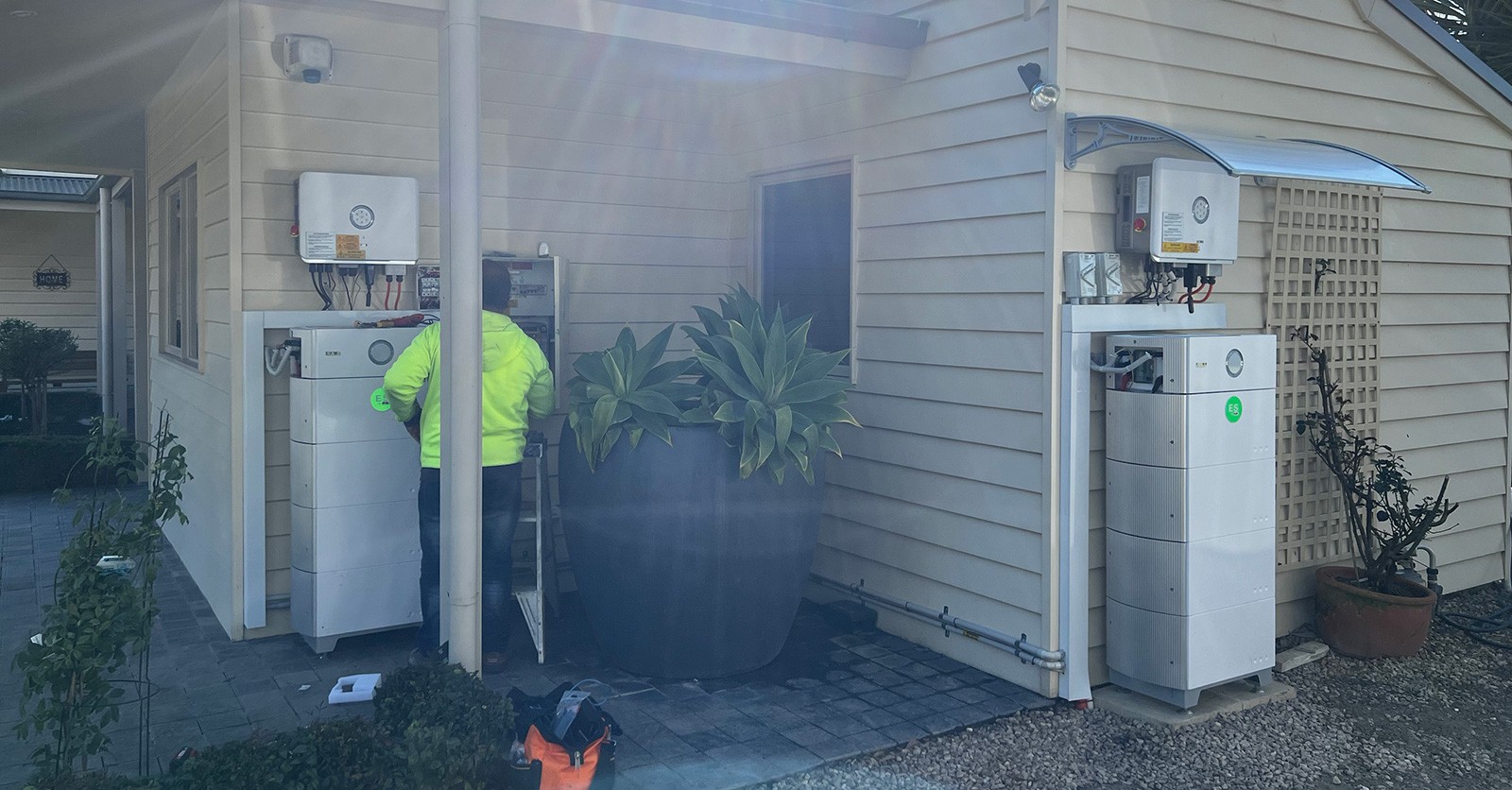

Smart Residential Energy Projects Display
PRODUCT SPECIFICATION
| Max. PV Array Power [Wp]@STC | 20000 | 24000 | 30000 | 30000 | 30000 | 40000 | 45000 | 45000 | 45000 | 45000 |
| Max. DC Voltage [V] | 1000 | |||||||||
| MPPT Voltage Range [V] | 180～900 | |||||||||
| Rated DC Voltage [V] | 600 | |||||||||
| Start Voltage [V] | 180 | |||||||||
| Max. DC Input Current [A] | 40/40/40 | 40/40 | 40/40/40 | 40/40 | 40/40/40 | |||||
| Max. DC Short Circuit Current [A] | 50/50/50 | 50/50 | 50/50/50 | 50/50 | 50/50/50 | |||||
| No. of MPPT | 3 | 2 | 3 | 2 | 3 | |||||
| Number of String per MPPT Tracker | 02/2/2 | 2/2 | 02/2/2 | 2/2 | 02/2/2 | |||||
| Battery Type | LiFePO4 | |||||||||
| Battery Voltage Range [V] | 180～800 | |||||||||
| Max. Charging/Discharging Current [A] | 50/50 | |||||||||
| No. of BAT | 2 | |||||||||
| Rated AC Power [W] | 10000 | 12000 | 15000 | 15000 | 20000 | 20000 | 25000 | 25000 | 29999 | 30000 |
| Max.Apparent Power [VA] | 11000 | 13200 | 16500 | 16500 | 22000 | 22000 | 25000 | 27500 | 29999 | 33000 |
| Rated Output Current [A]@230Vac | 14.5 | 17.4 | 21.8 | 21.8 | 29.0 | 29.0 | 36.3 | 36.3 | 43.4 | 43.5 |
| Max. Output Current [A] | 16 | 19.2 | 24.0 | 24.0 | 31.9 | 31.9 | 36.3 | 39.9 | 43.4 | 47.9 |
| Rated AC Voltage/Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | |||||||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | |||||||||
| Total Harmonic Distortion [THDi] | < 3% | |||||||||
| Rated AC Voltage/Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | |||||||||
| Rated Input Frequency [Hz] | 5,060 | |||||||||
| Max. Input Current [A]@230Vac | 28.3 | 28.3 | 28.3 | 28.3 | 37.7 | 37.7 | 47.2 | 47.2 | 56.5 | 56.6 |
| Max. Output Power [VA] | 10000 | 12000 | 15000 | 15000 | 20000 | 20000 | 25000 | 25000 | 29999 | 30000 |
| Max. Output Current [A] | 14.5 | 17.4 | 21.8 | 21.8 | 29.0 | 29.0 | 36.3 | 36.3 | 43.4 | 43.5 |
| Peak Output Apparent Power [VA] | 15000,3S | 18000,3S | 22500,3s | 22500,3s | 30000,3s | 30000,3s | 37500,3s | 37500,3s | 45000,3S | 45000,3s |
| Rated AC Voltage/Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | |||||||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||||||
| Output THDv (@ Linear Load) | < 3% | |||||||||
