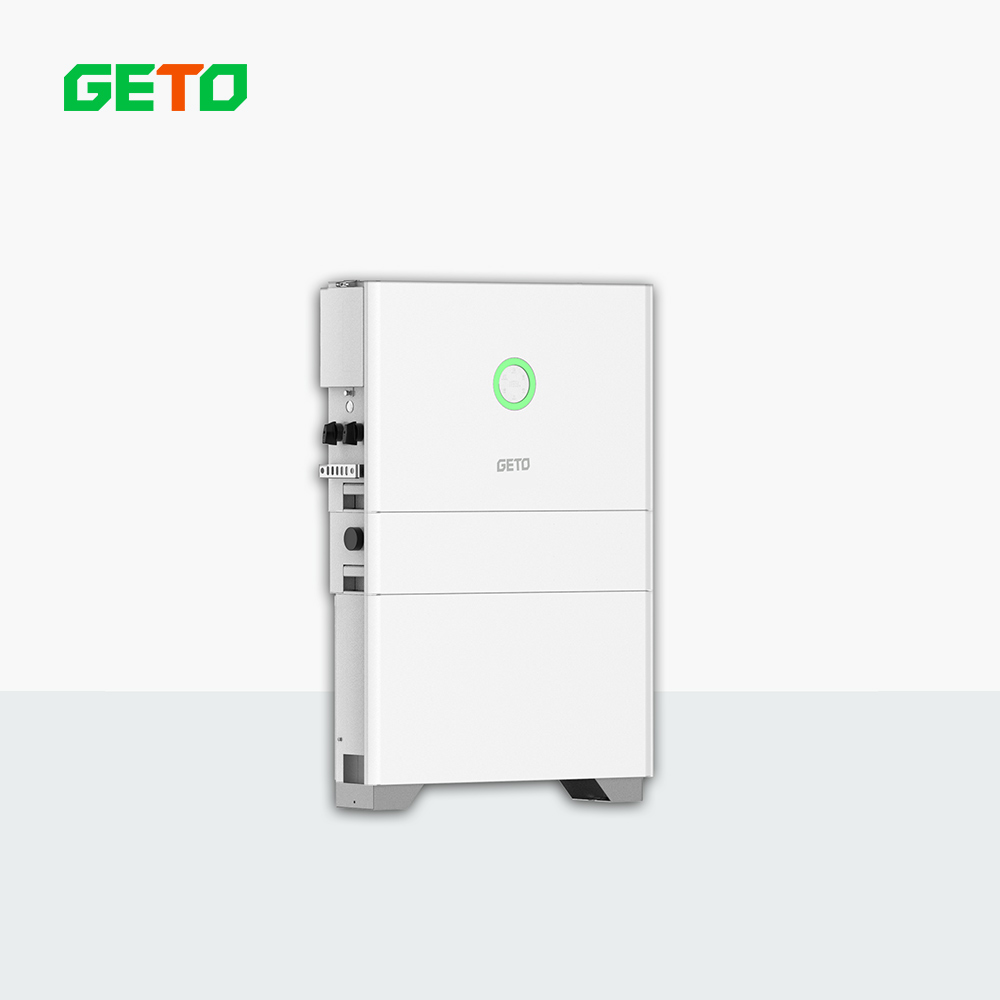

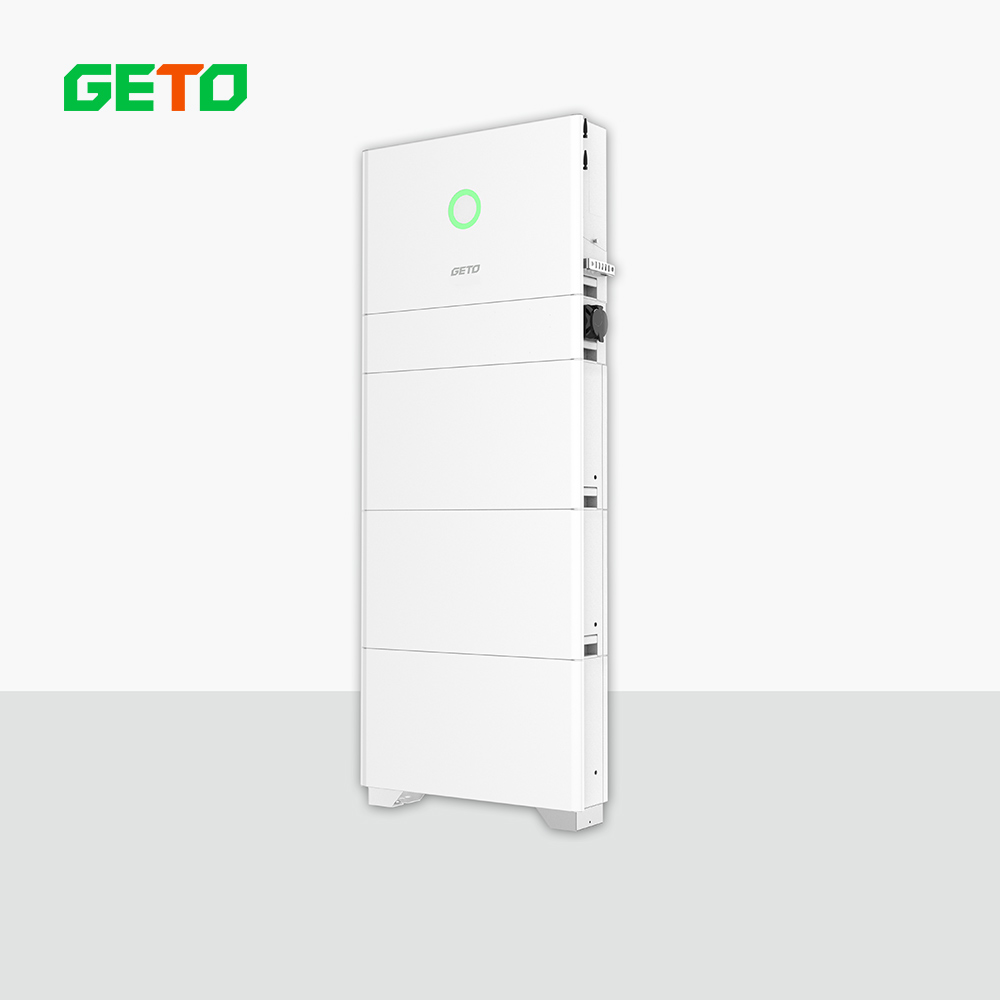

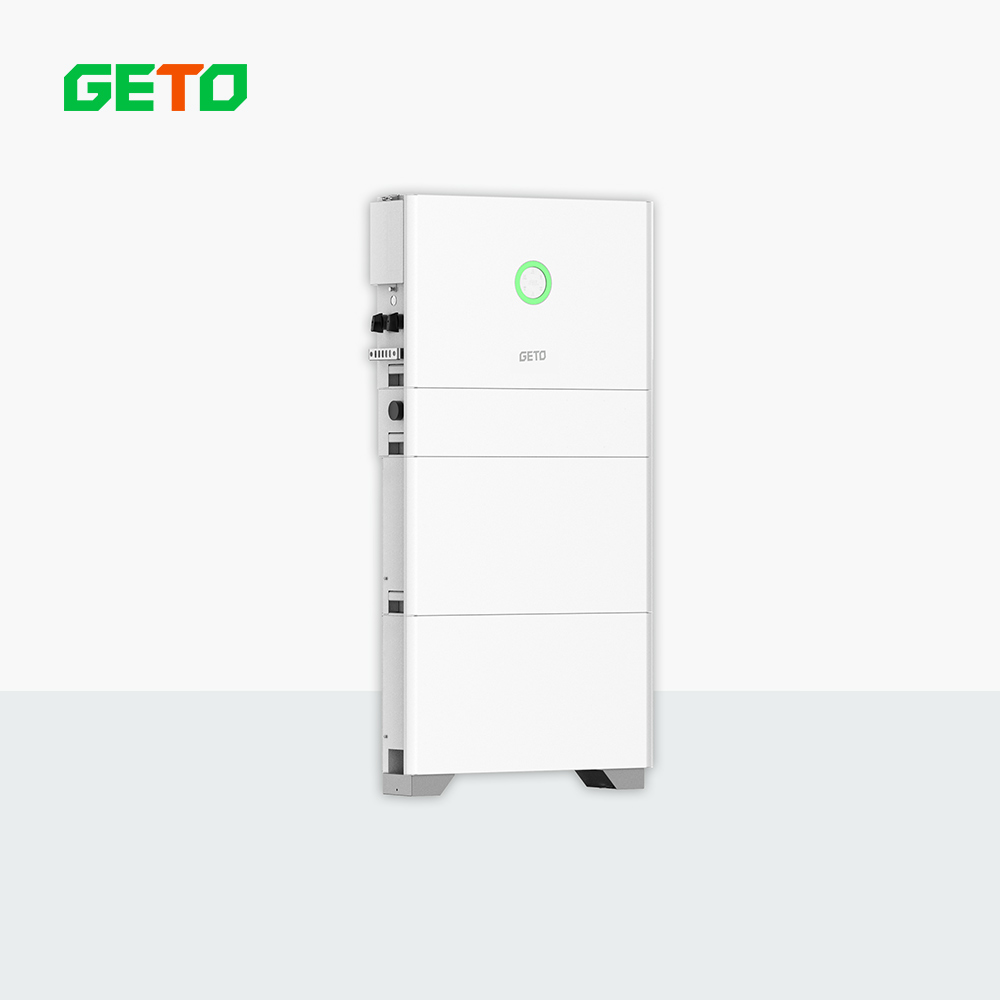

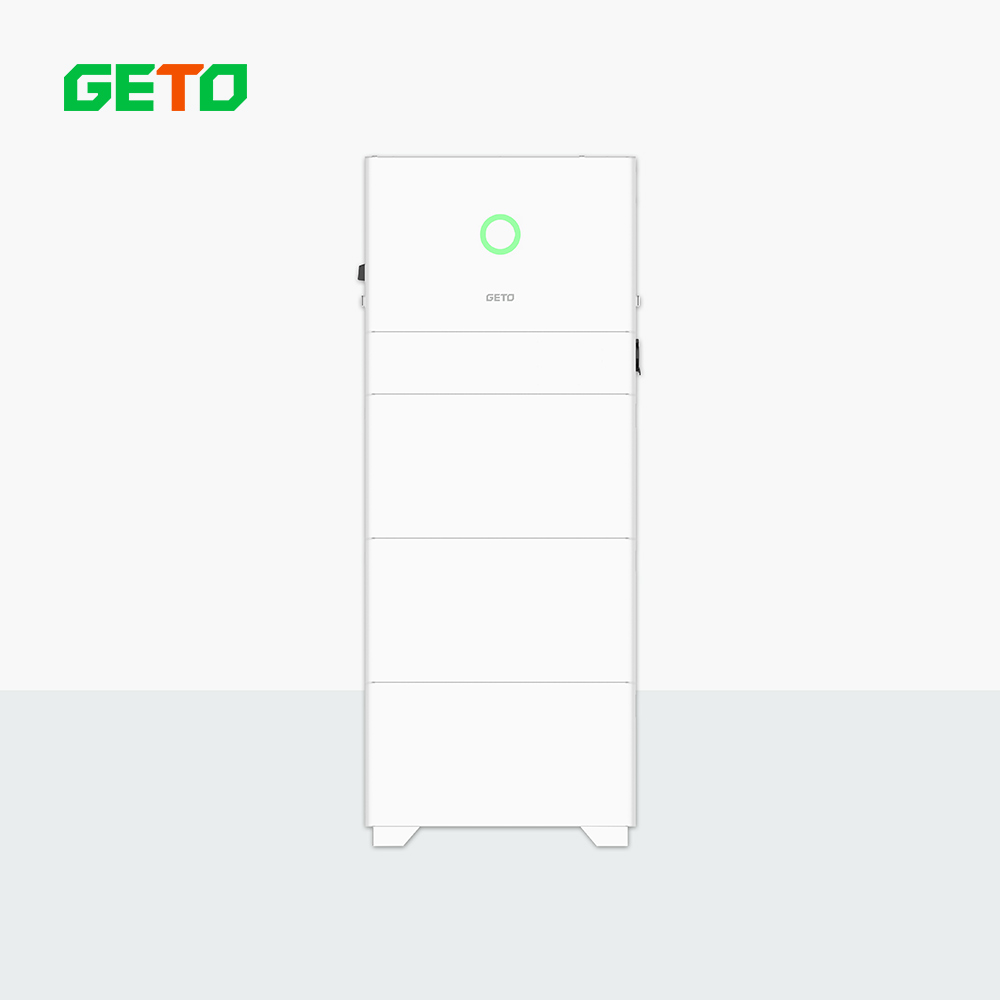

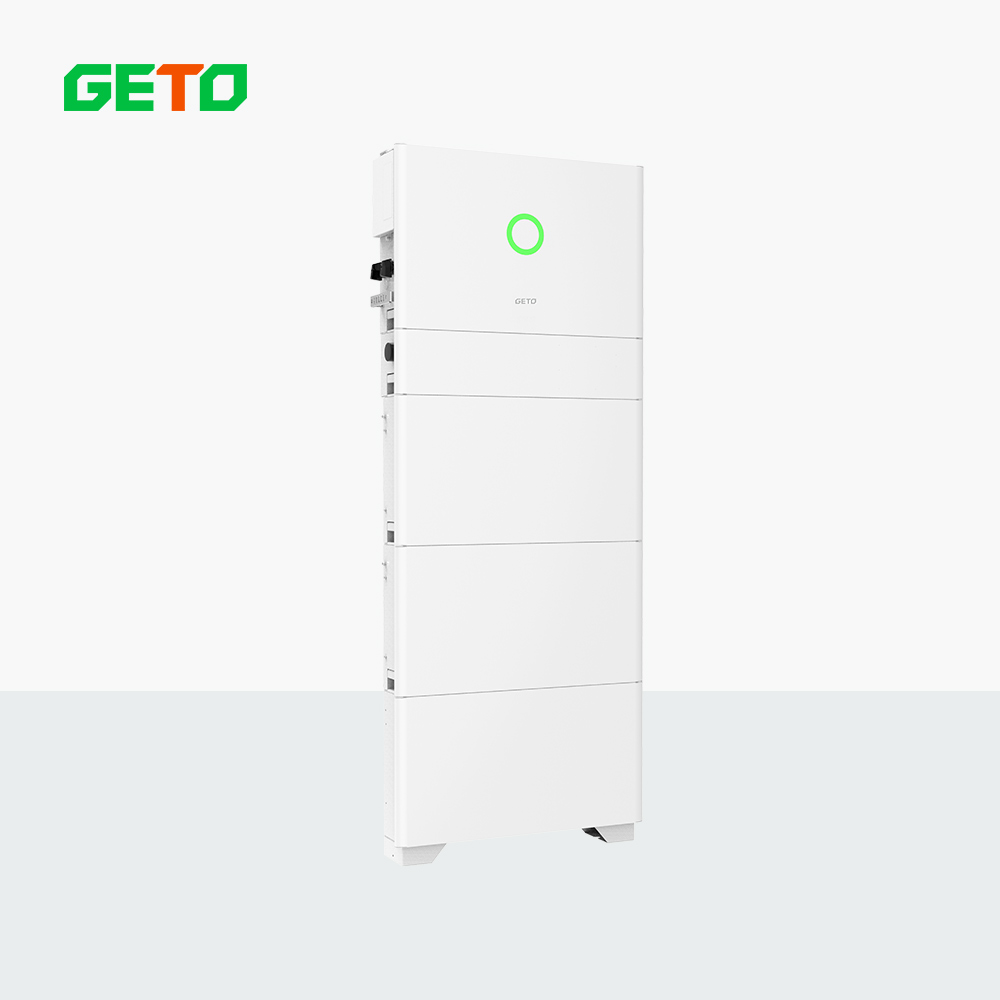

HS3 Three Phase All-in-one Solar Power System
Solar Hybrid all in one solar power system
Three phase ( Single phase optional)
Grade A+ NEW LiFePO4 battery cell

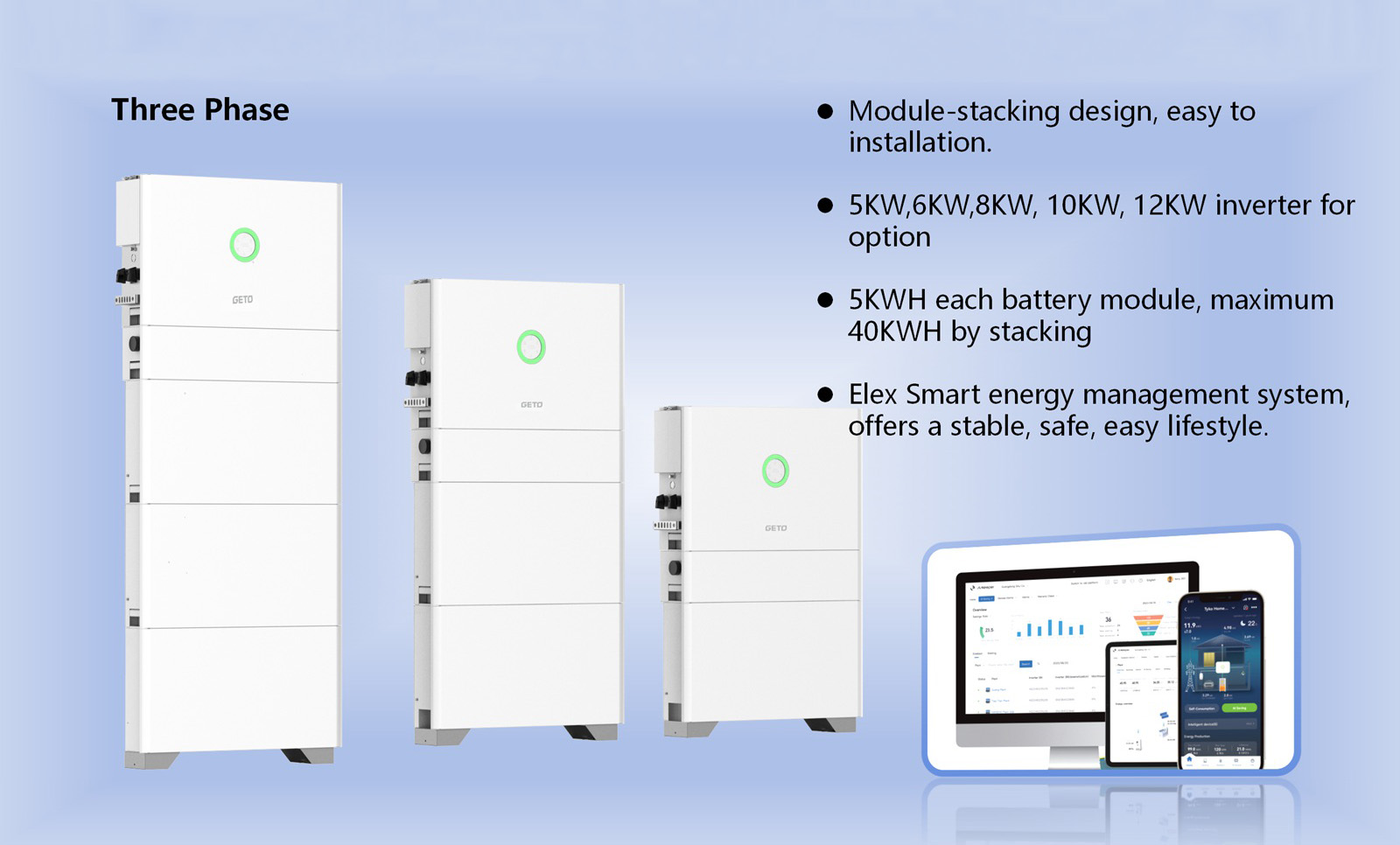

Inverter Option: 5KW/6KW/8KW/10KW/12KW

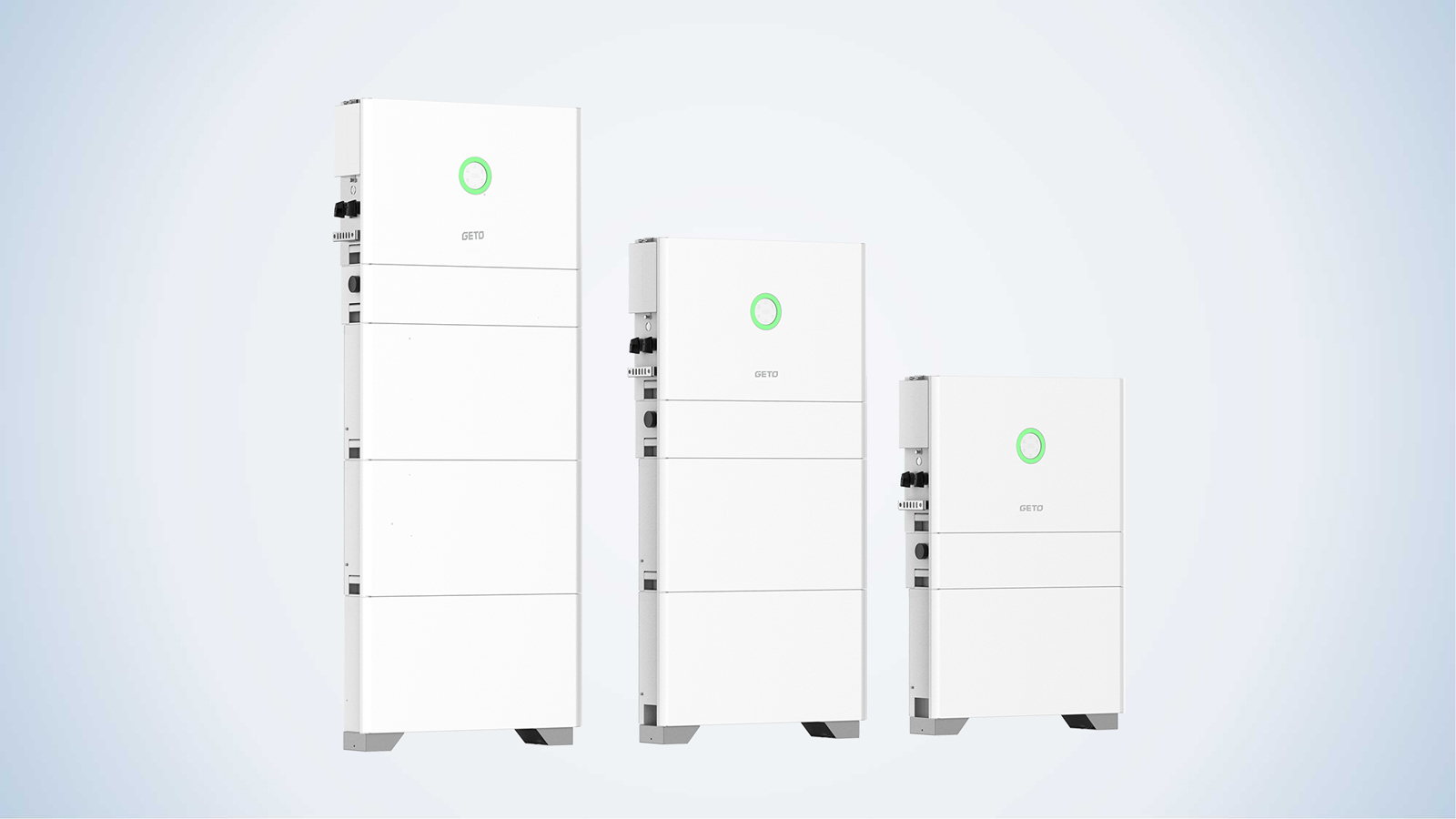

Battery Option: 5KWH/10KWH/15KWH/20KWH/25KWH/30KWH/35KWH/40KWH
Others: IP65/ 5 Years Warranty/Smart Energy Management

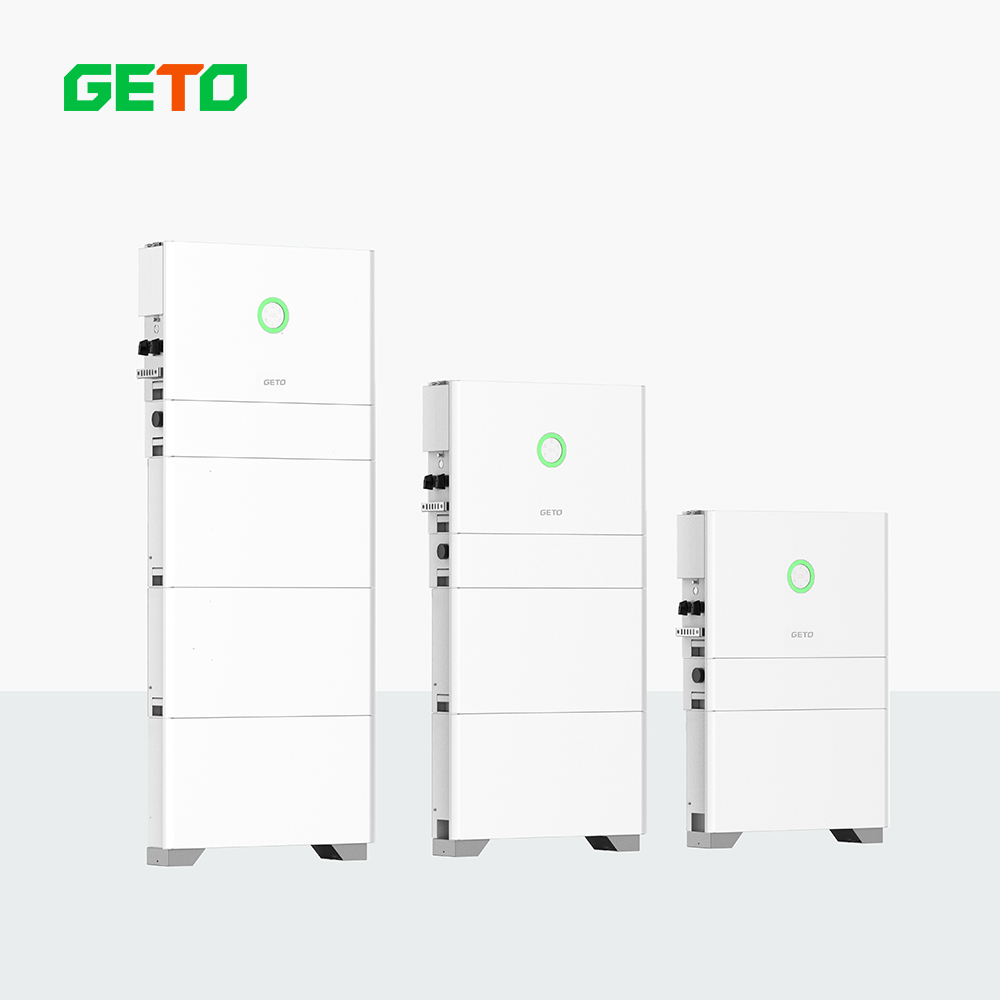

HS3 Series----- Three Phase All in One Solar Power System

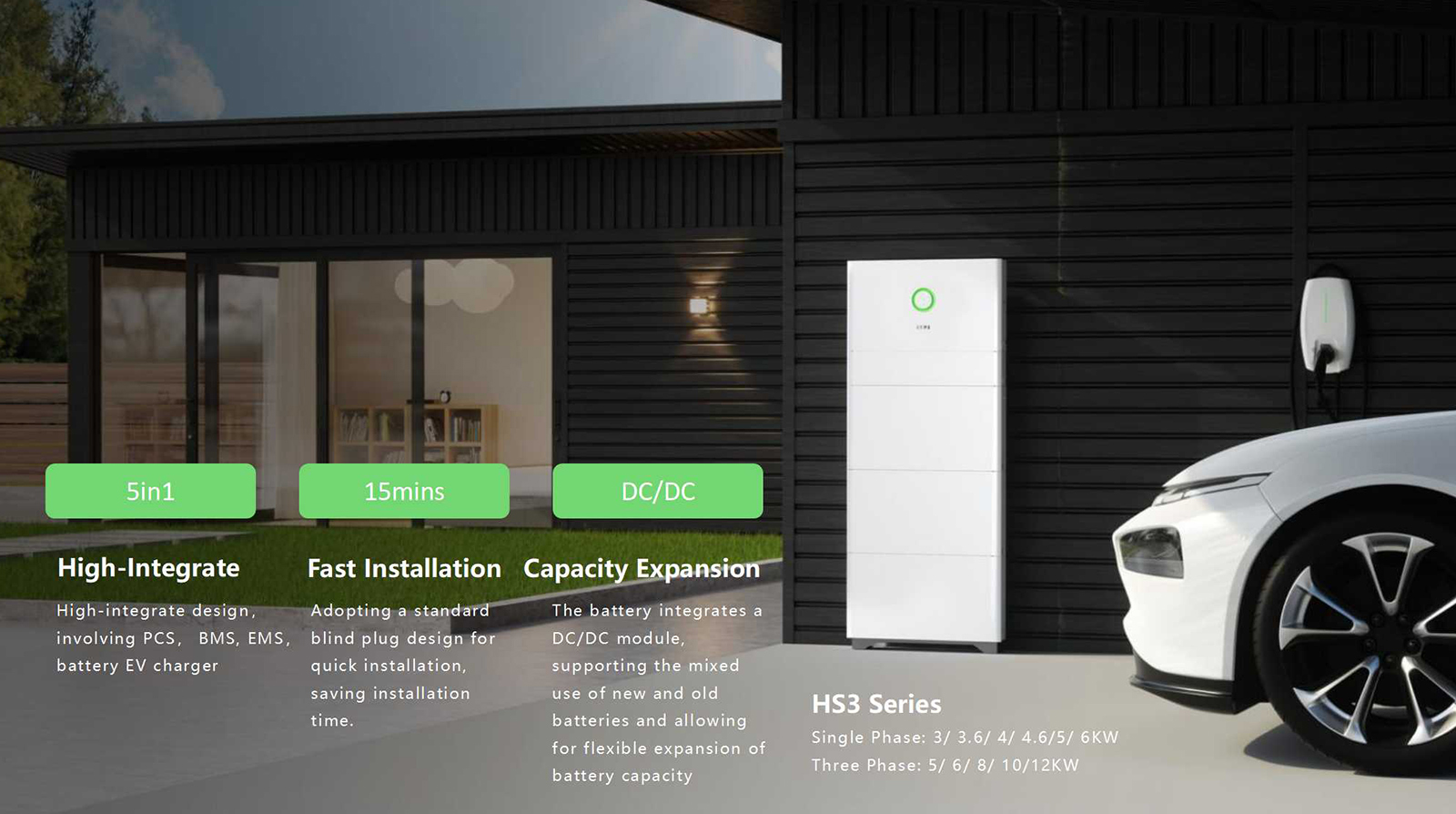

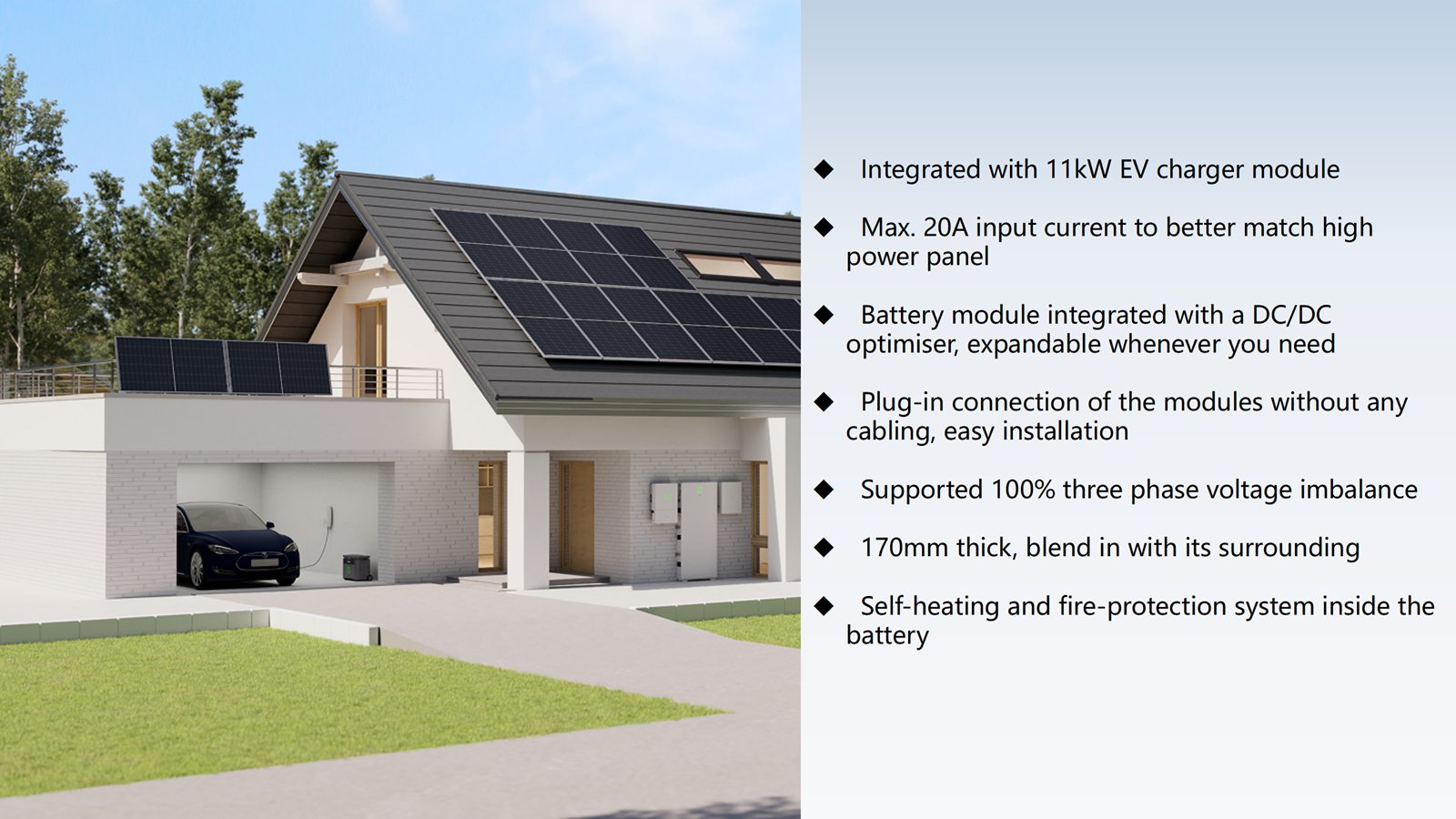

Geto latest all-in-one solution for residential energy storage system, integrated PCS, BMS, EMS, EV charger and battery, with plug-in play design, IP65 design and only 12 screws, making the installation a lot easier. HS3 covers from 5-12kW, 2 MPPTs and three phase grid.

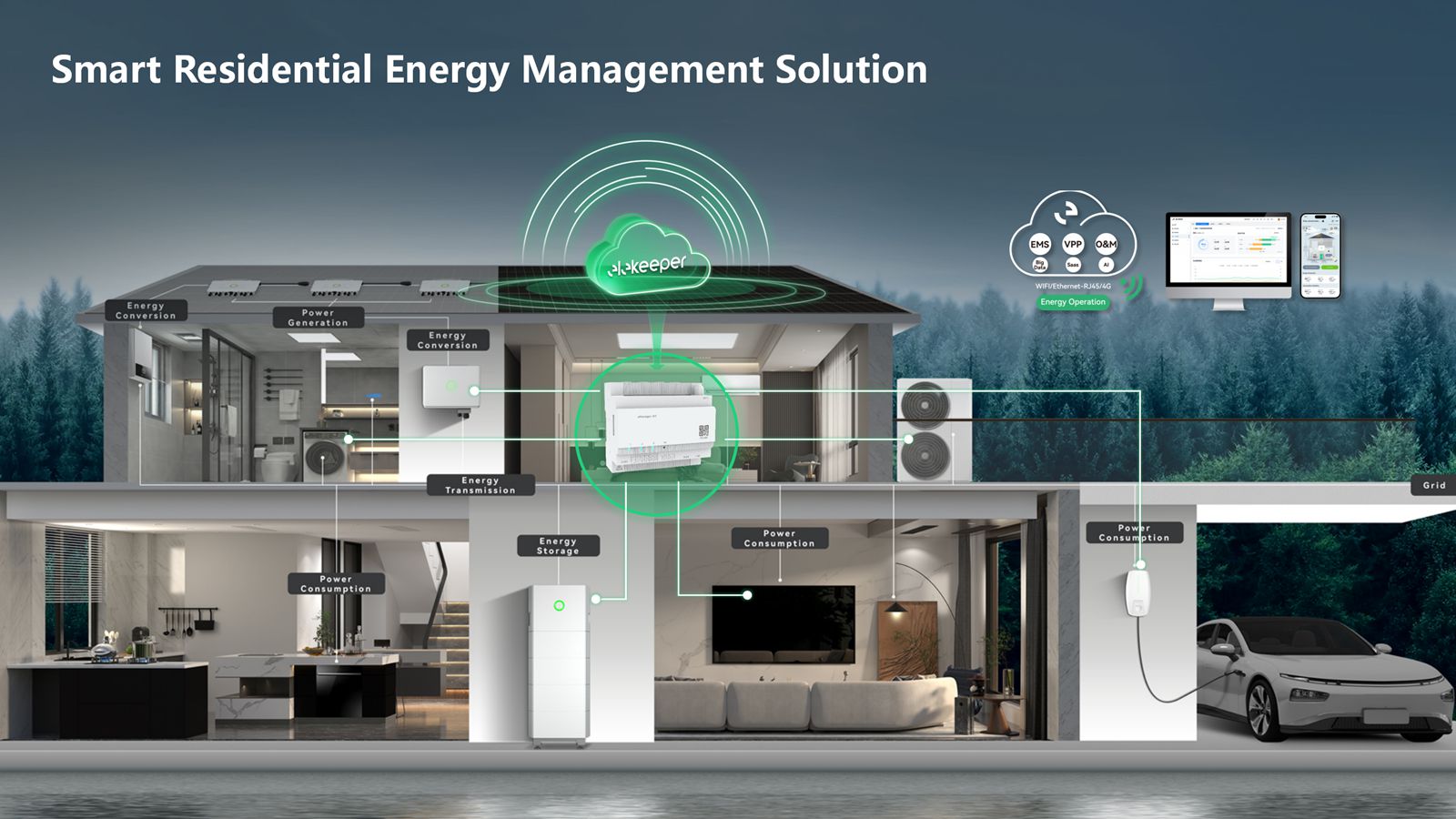

Smart All in One Solar Energy Management Solution Plus: HS3 Series

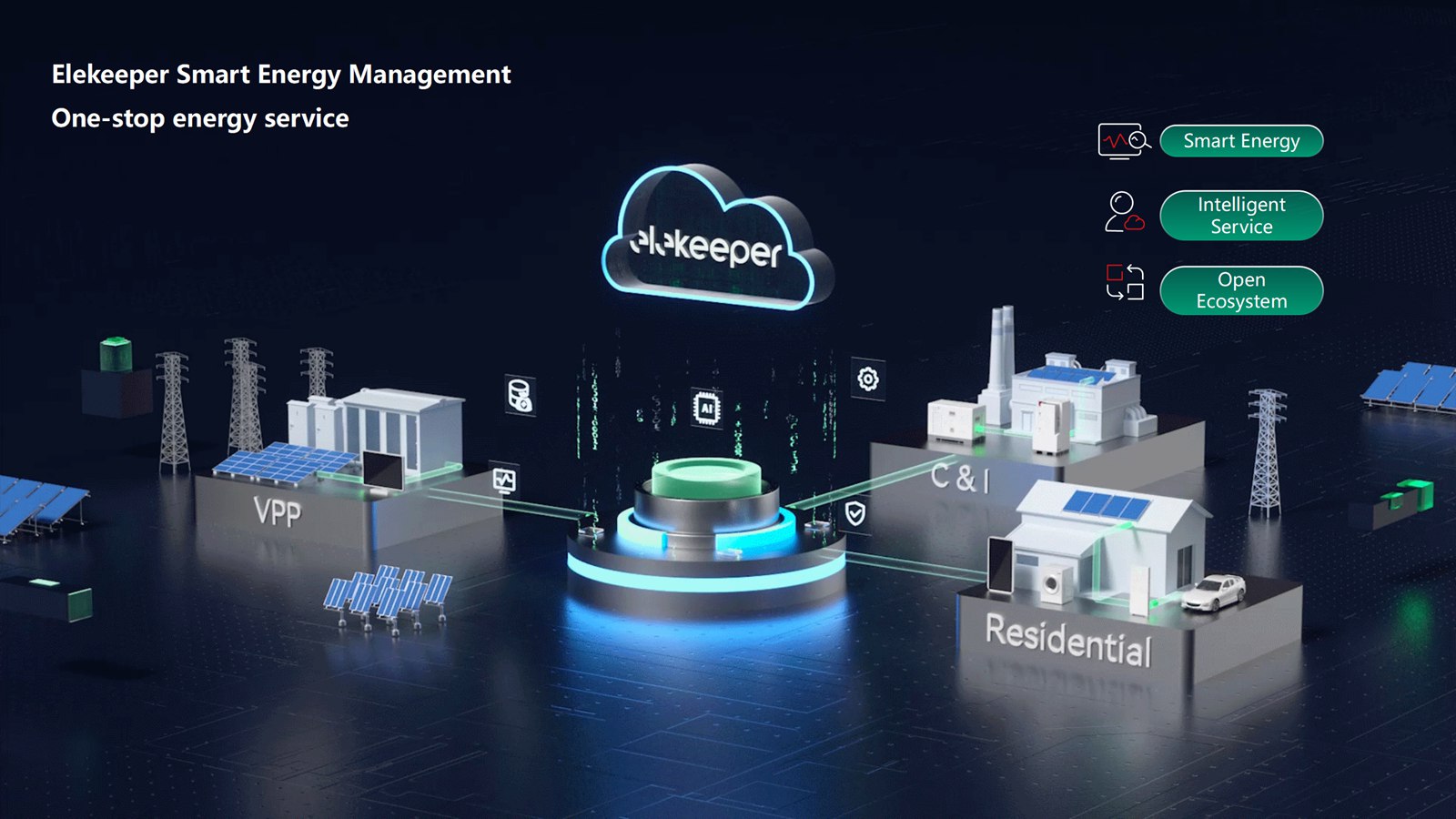

The eleX residential energy management solution, powered by advanced Al-based technology elManager, is specifically designed for residential scenario and offers a holistic software and hardware integration solution that covers energy generation, storage, consumption, and operation, enabling effective closed-loop energy management and operation within residential settings. By leveraging three core algorithms - power generation prediction, load prediction, and optimal energy utilization strategy - eleX can achieve Al-driven energy savings by 20% with just one click, helping users minimize energy costs while maximizing return on investment.

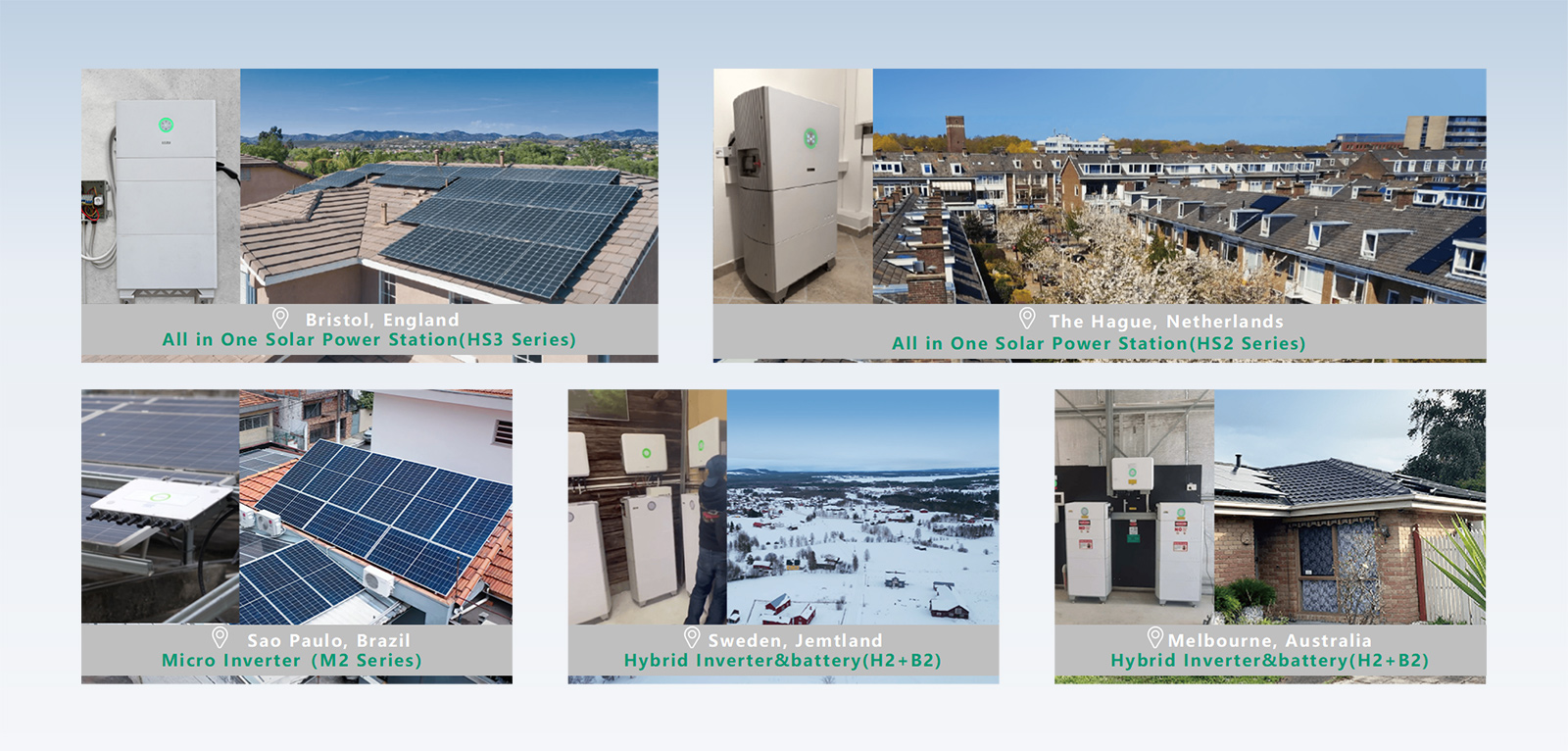

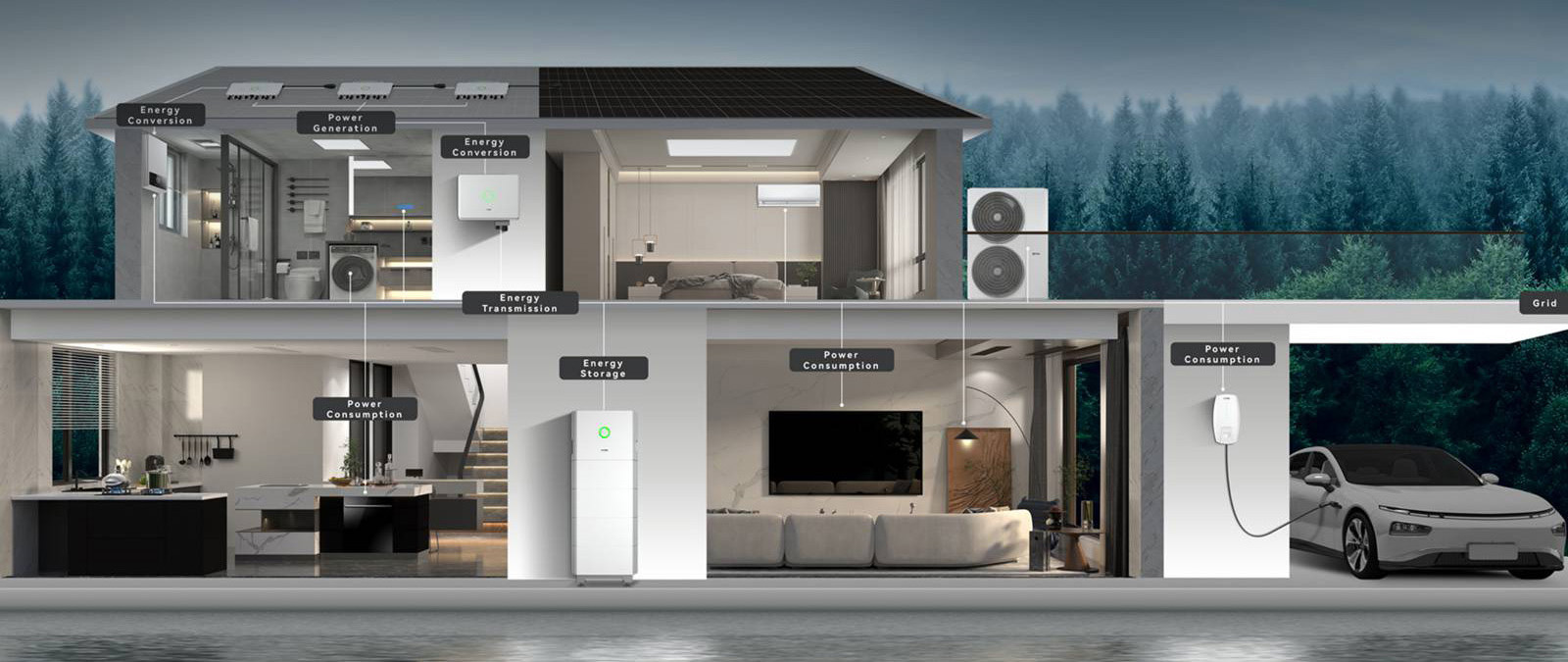

Smart Residential Energy Projects Display
PRODUCT SPECIFICATION
| Module | HS3-5K-T2-W/4G-P | HS3-6K-T2-W/4G-P | HS3-8K-T2-W/4G-P | HS3-10K-T2-W/4G-P | HS3-12K-T2-W/4G-P |
| Max. PV Array Power [Wp]@STC | 10000 | 12000 | 12000 | 15000 | 15000 |
| Max. DC Voltage [V] | 1000 | ||||
| MPPT Voltage Range [V] | 180～900 | ||||
| Rated DC Voltage [V] | 600 | ||||
| Start Voltage [V] | 180 | ||||
| Max. DC Input Current [A] | 20 | ||||
| Max. DC Short Circuit Current [A] | 24 | ||||
| No. of MPPT | 2 | ||||
| Rated AC Power [W] | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max. Apparent Power [VA] | 5000 | 6000 | 8000 | 10000 | 12000 |
| Rated Output Current [A]@230Vac | 7.2 | 8.7 | 11.6 | 14.5 | 17.4 |
| Max. Output Current [A] | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 |
| Max. Input Current [A]@230Vac | 14.5 | 17.4 | 23.2 | 29.0 | 29.0 |
| Rated AC Voltage/Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | ||||
| Rated Output Frequency/Range [Hz] | 50, 60/45～55, 55～65 | ||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | ||||
| Total Harmonic Distortion [THDi] | < 3% | ||||
| Battery Type | LiFePO4 | ||||
| Battery Voltage Range[V] | 350～500 | ||||
| Max. Charging/Discharging Current [A] | 30/30 | ||||
| Scalability | BU3-5.0-TV2-PRO (up to 8 battery modules) | ||||
| Rated Output Power [W] | 5000 | 6000 | 8000 | 10000 | 12000 |
| Peak Output Apparent Power [VA] | 7500,60s | 9000,60s | 12000,60s | 15000,60s | 15000,60s |
| Rated AC Voltage/Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | ||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | ||||
| Output THDv (@ Linear Load) | < 3% | ||||
