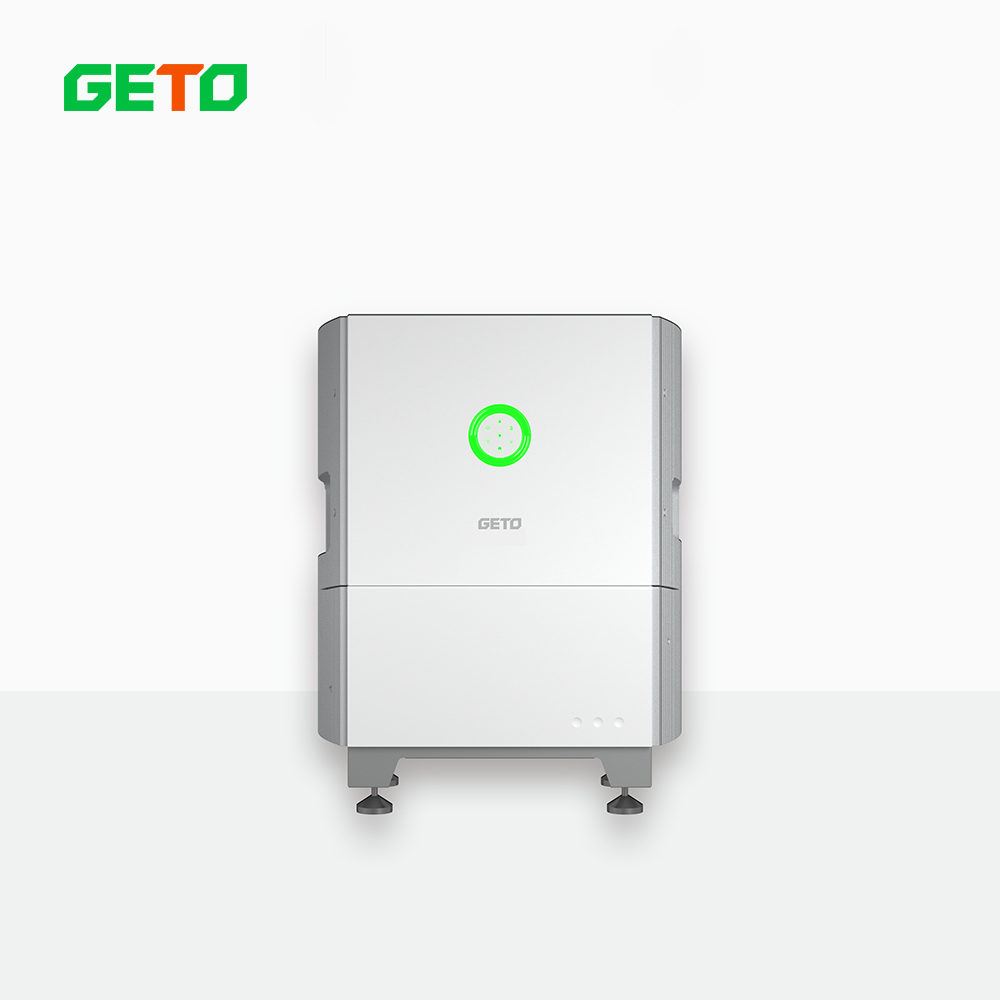

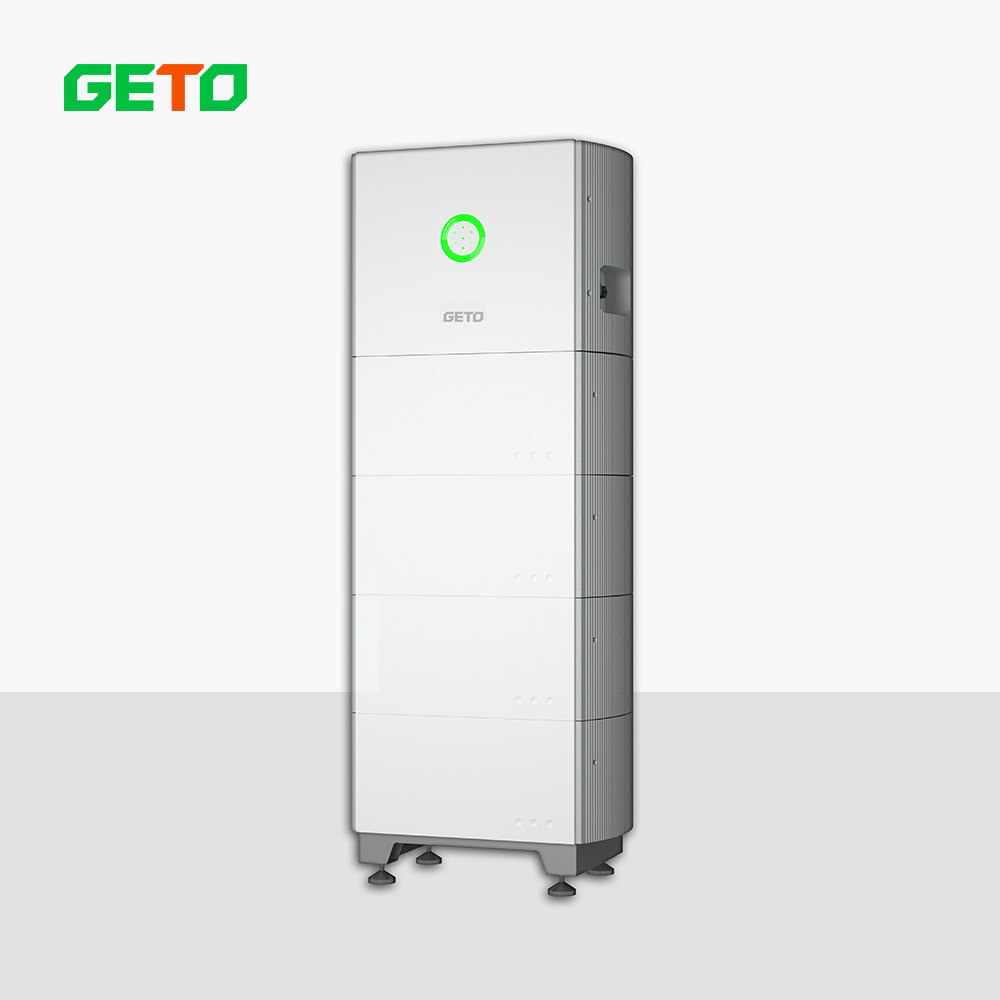

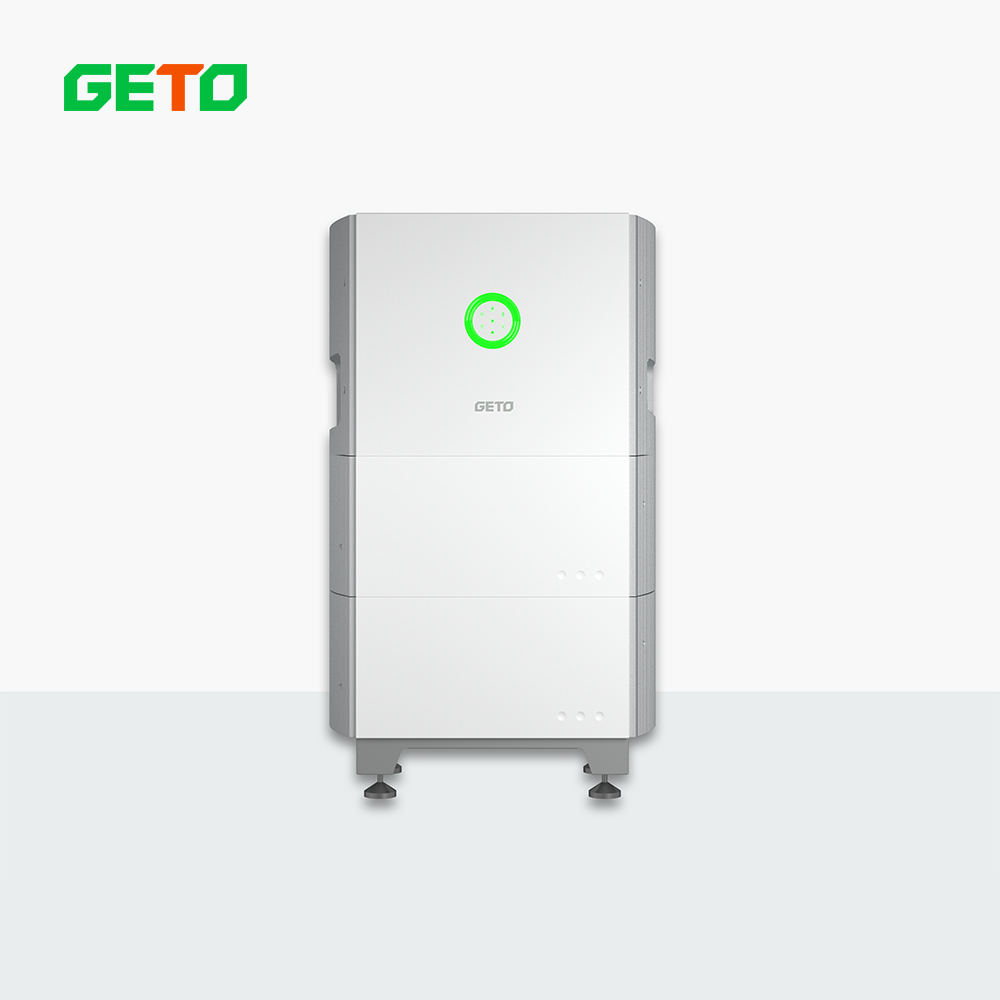

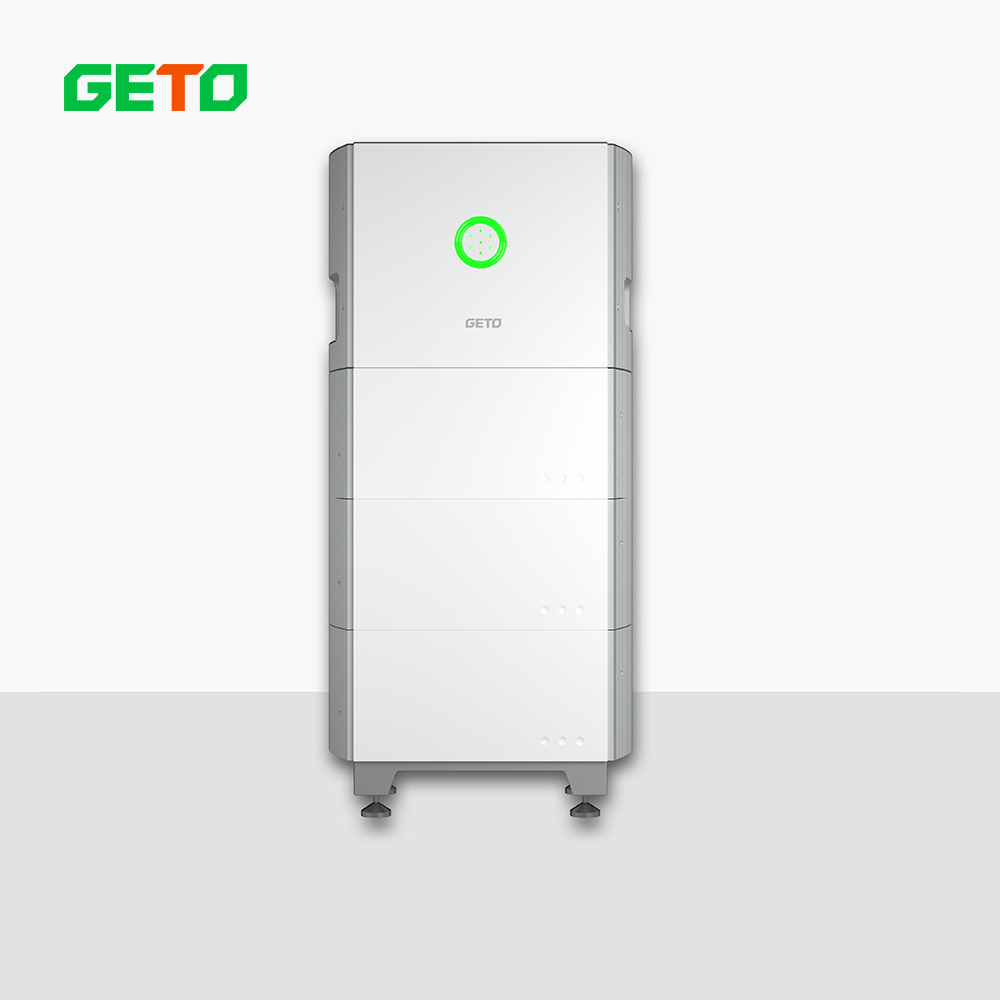

HS2 Three Phase All-in-one Solar Power System
Solar Hybrid all in one solar power system
Three phase ( Single phase optional)
Grade A+ NEW LiFePO4 battery cell
Inverter Option: 5KW/6KW/8KW/10KW

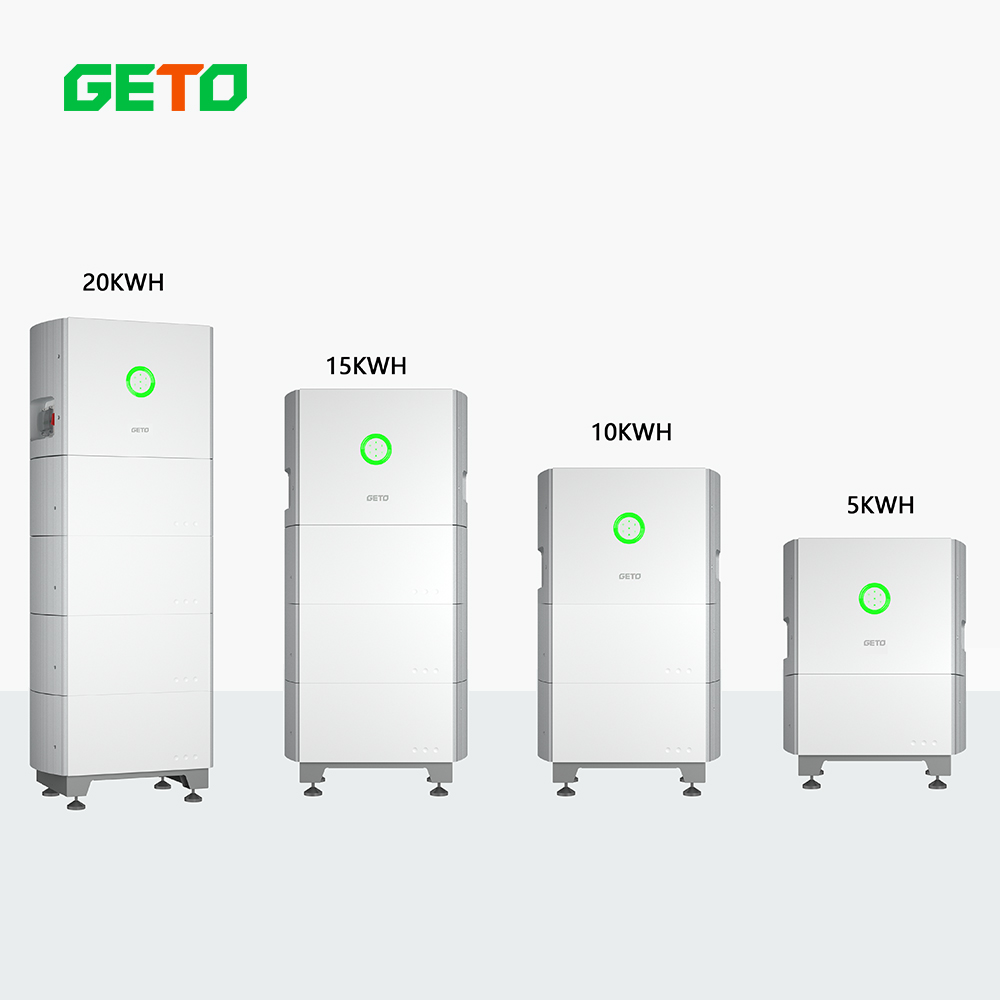

Battery Option: 5KWH/10KWH/15KWH/20KWH/25KWH
Others: IP65 / 5 Years Warranty / Smart Energy Management

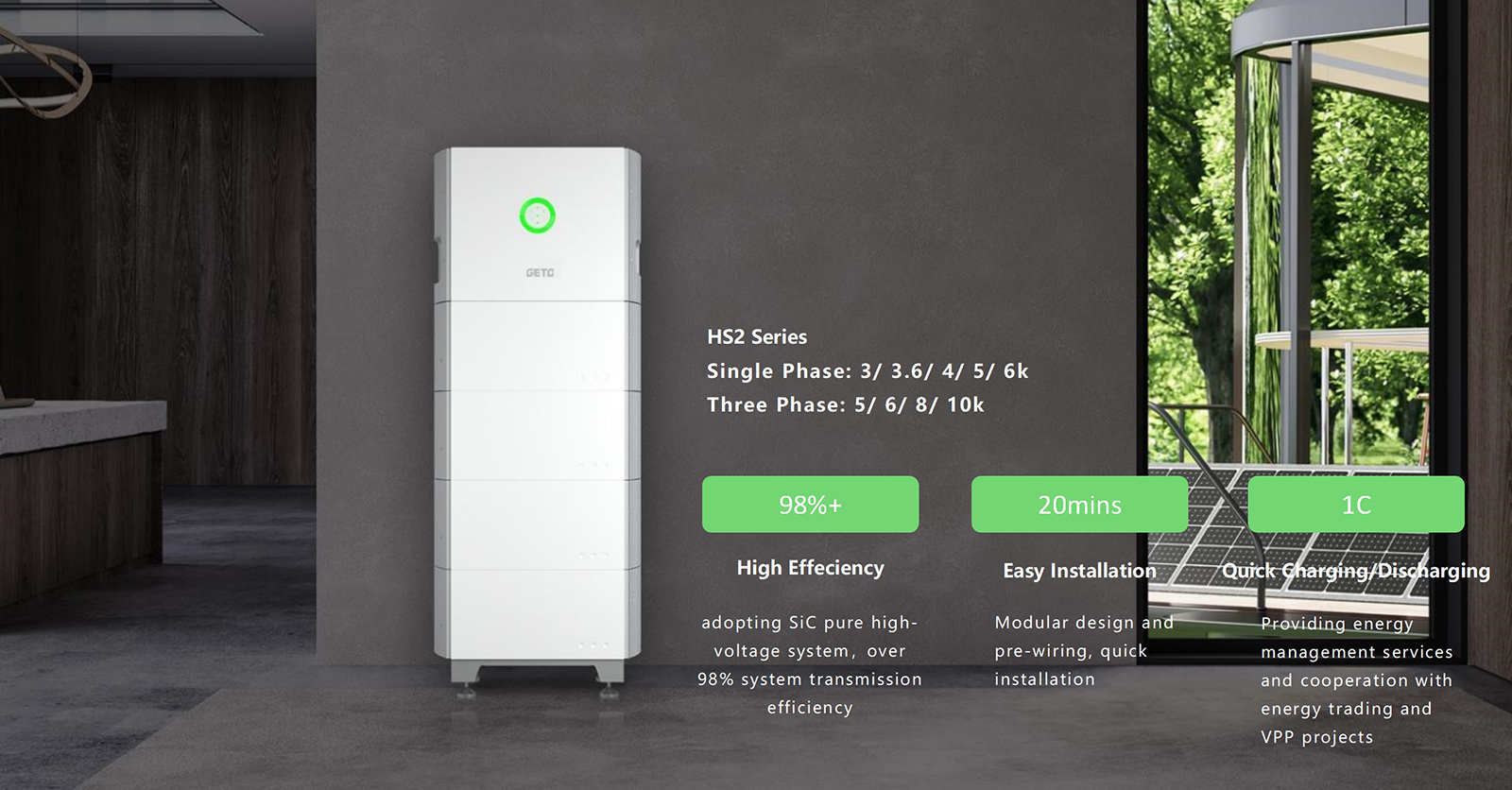

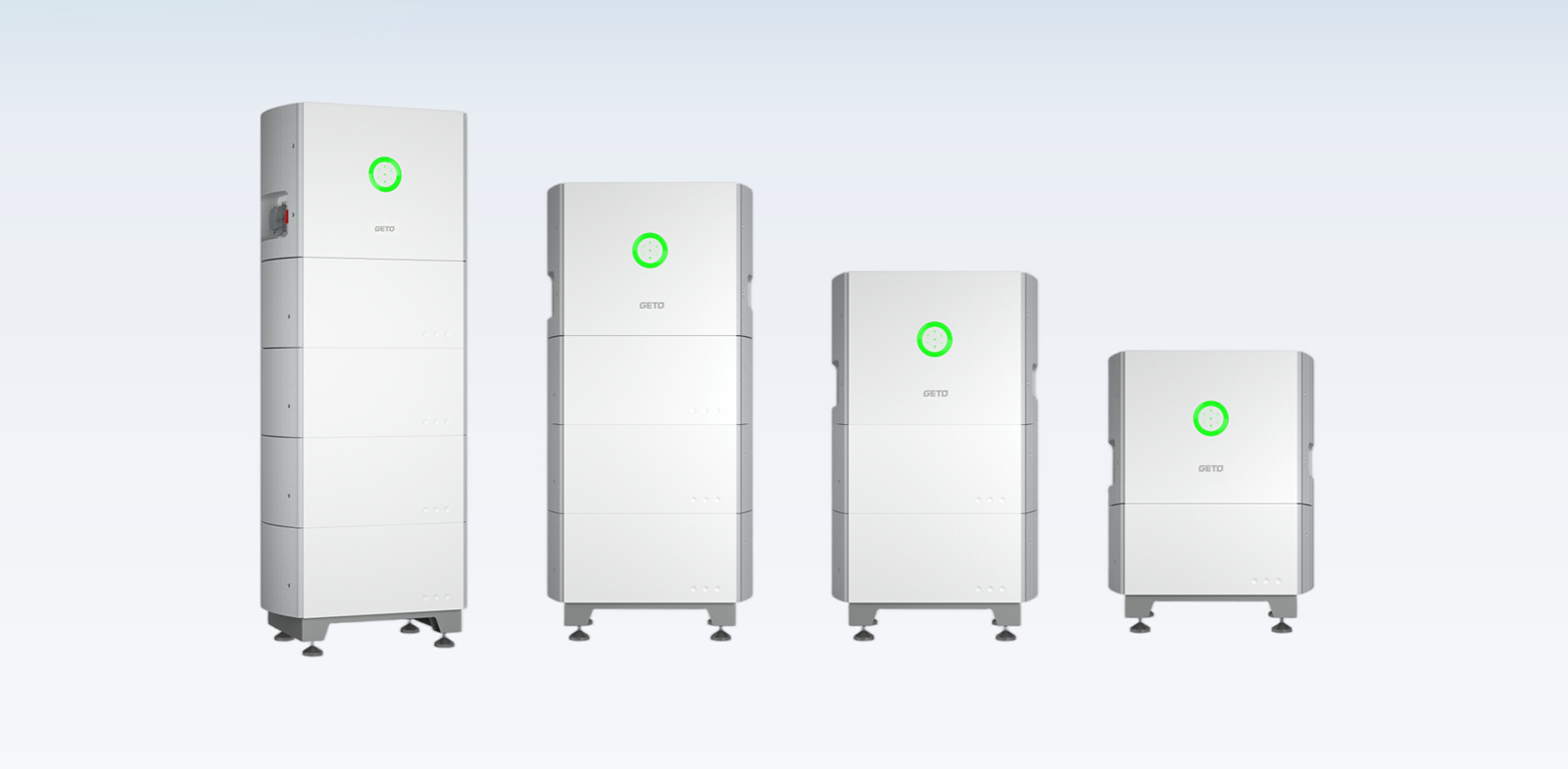

HS2 Series----- All in One Solar Power System
Geto first all-in-one solution for residential energy storage system, integrated PCS, BMS and battery, with module and IP65 design, no external wire, suitable for outdoor easy installation. HS2 covers from 5-10kW, 2 MPPTs and three phase grid.

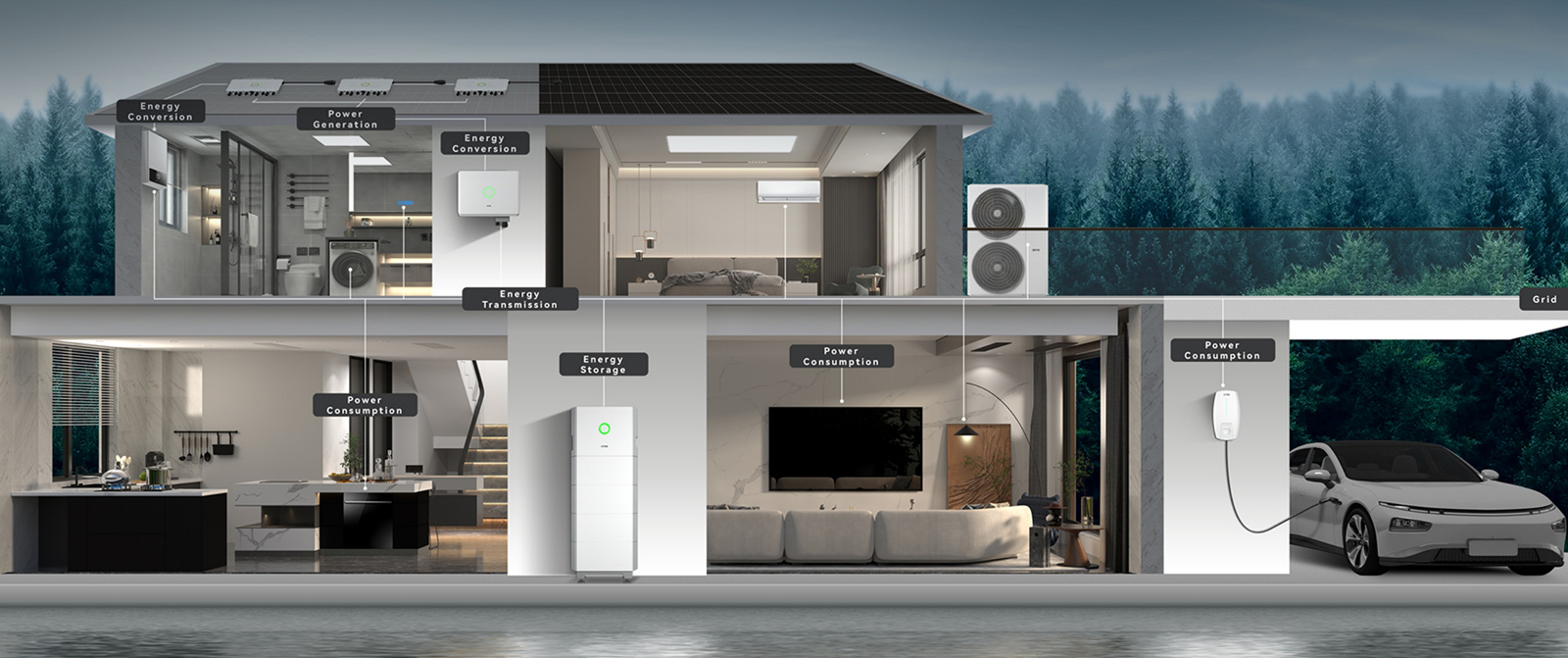

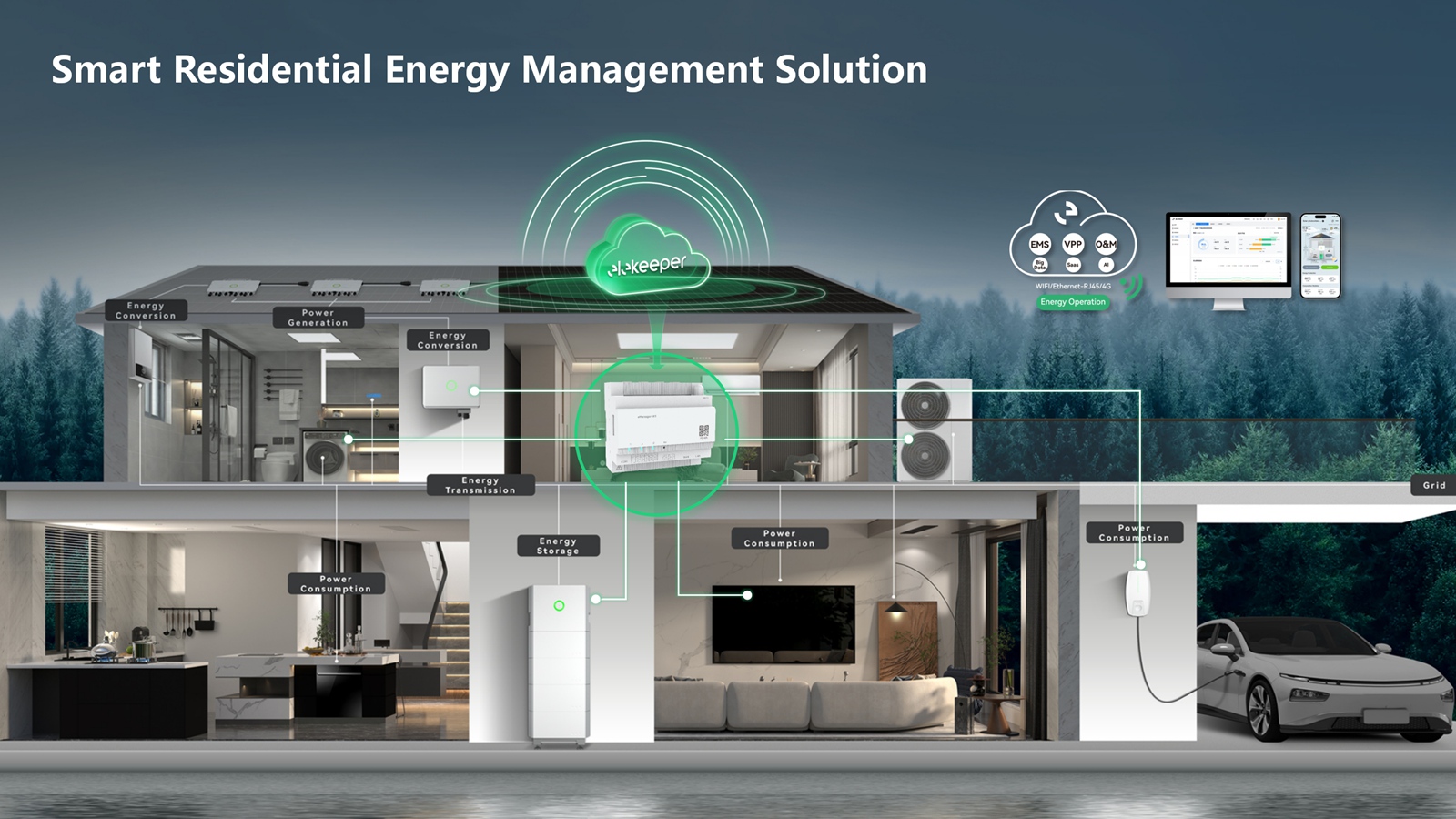

Smart All in One Solar Energy Management Solution Plus: HS2 Series

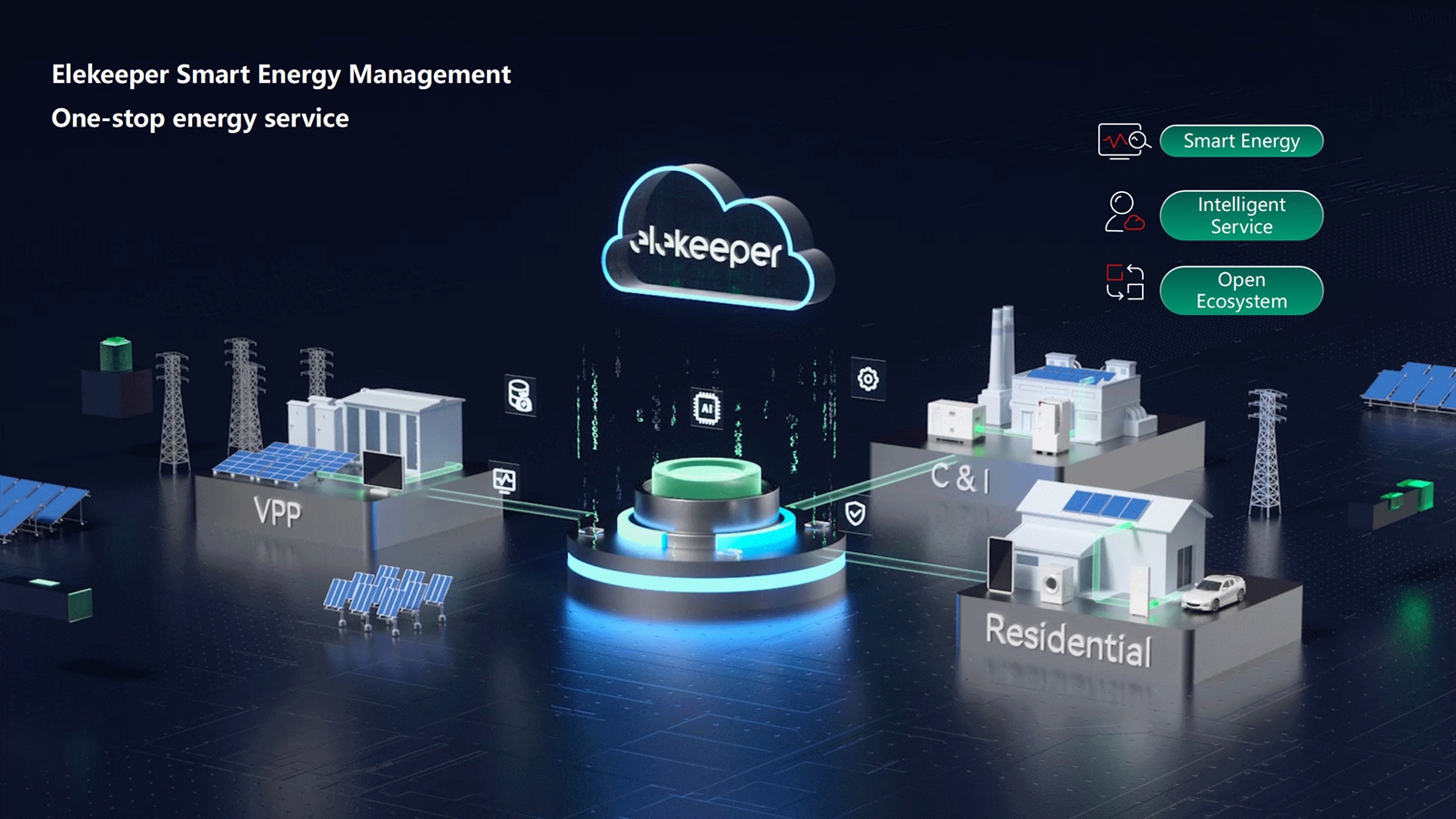

The eleX residential energy management solution, powered by advanced Al-based technology eManager, is specifically designed for residential scenario and offers a holistic software and hardware integration solution that covers energy generation, storage, consumption, and operation, enabling effective closed-loop energy management and operation within residential settings. By leveraging three core algorithms - power generation prediction, load prediction, and optimal energy utilization strategy - eleX can achieve Al-driven energy savings by 20% with just one click, helping users minimize energy costs while maximizing return on investment.

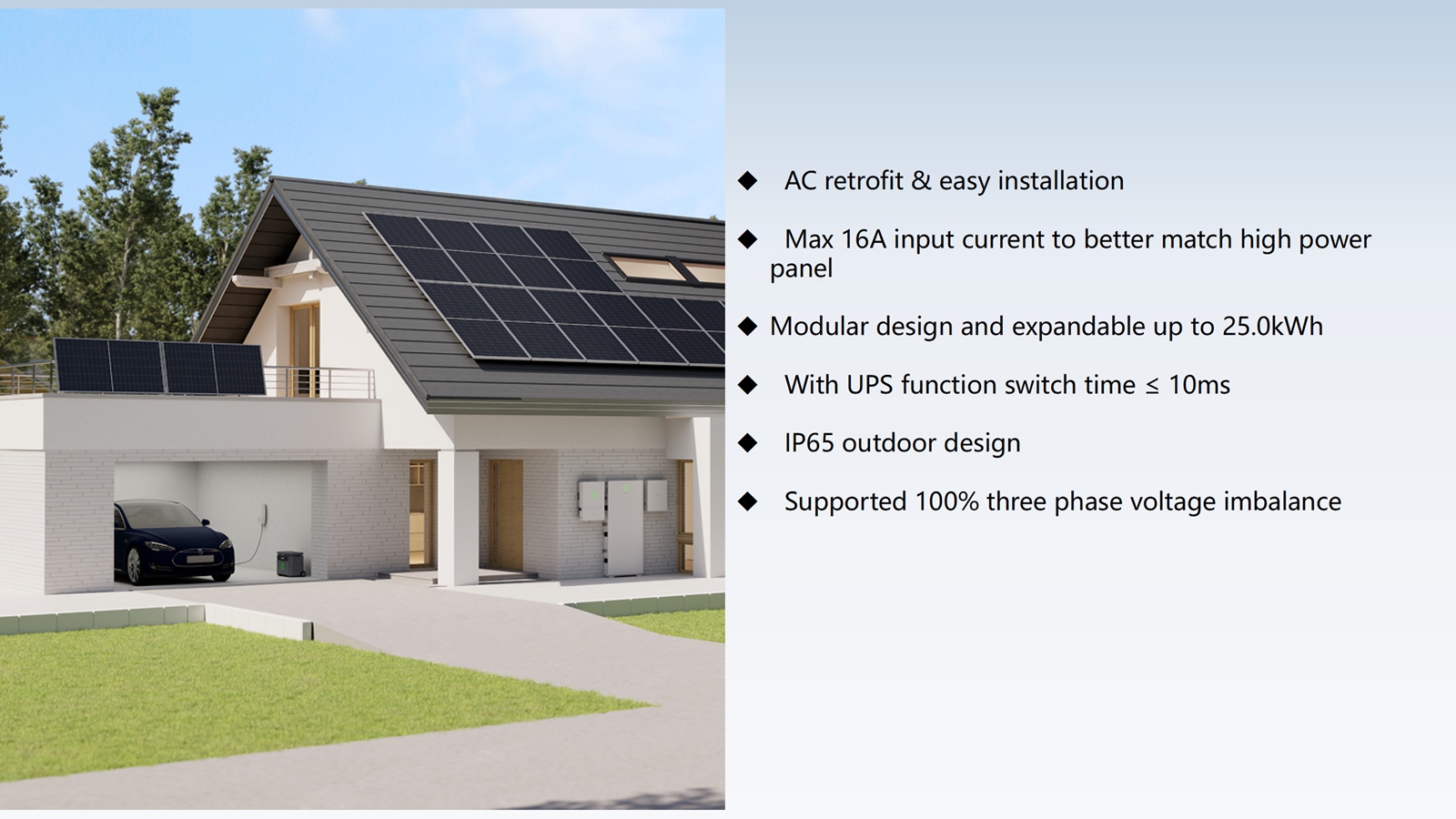

Smart Residential Energy Projects Display
PRODUCT SPECIFICATION
| Max. PV Array Power [Wp]@ STC | 7500 | 9000 | 12000 | 15000 | 15000 |
| Max. DC Voltage [V] | 1000 | ||||
| MPPT Voltage Range [V] | 180～900 | ||||
| Rated DC Voltage [V] | 600 | ||||
| Start Voltage [V] | 180 | ||||
| Max. DC Input Current [A] | 16/16 | ||||
| Max. DC Short Circuit Current [A] | 19.2/19.2 | ||||
| No. of MPPT | 2 | ||||
| Battery Type | LiFePO4 | ||||
| Battery Voltage Range [V] | 180～600 | ||||
| Max. Charging/ Discharging Current [A] | 30/30 | ||||
| Scalability | BU2-5.0-HV1/5 (up to 5 battery modules) | ||||
| Rated AC Power [W] | 5000 | 6000 | 8000 | 10000 | 10000 |
| Max. Apparent Power [VA] | 5500 | 6600 | 8800 | 11000 | 10000 |
| Rated Output Current [A]@ 230Vac | 7.2 | 8.7 | 11.6 | 14.5 | 14.5 |
| Max. Output Current [A] | 8.3 | 10.0 | 13.3 | 16.7 | 15.2 |
| Current Inrush [A] | 52.0 | ||||
| Max. AC Fault Current [A] | 45.0 | ||||
| Max. AC Over Current Protection [A] | 20.8 | 25.0 | 33.3 | 41.8 | 41.8 |
| Rated AC Voltage/ Range [V] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | ||||
| Rated Output Frequency/ Range [Hz] | 50,60/45～55,55～65 | ||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | ||||
| Total Harmonic Distortion [THDi] | <3%<> | ||||
| Rated AC Voltage/ Range [V] | L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | ||||
| Rated Input Frequency [Hz] | 50,60 | ||||
| Max. Input Current [A]@ 230Vac | 14.5 | 17.4 | 23.2 | 29 | 29 |
| Max. Output Power [VA] Max. Output Current [A] | 5000 | 6000 | 8000 | 10000 | 10000 |
| Peak Output Apparent Power [VA] | 8 | 9.6 | 12.8 | 15.9 | 15.9 |
| Rated AC Voltage/Range [V] | 10000, 60s | 12000, 60s | 16000, 60s | 16500, 60s | 16500, 60s |
| Rated Output Frequency/Range [Hz] | 3L+N+PE, 220/380, 230/400, 240/415; 180～280/312～485 | ||||
| Output THDv (@ Linear Load) | 50,60/45～55,55～65 | ||||
