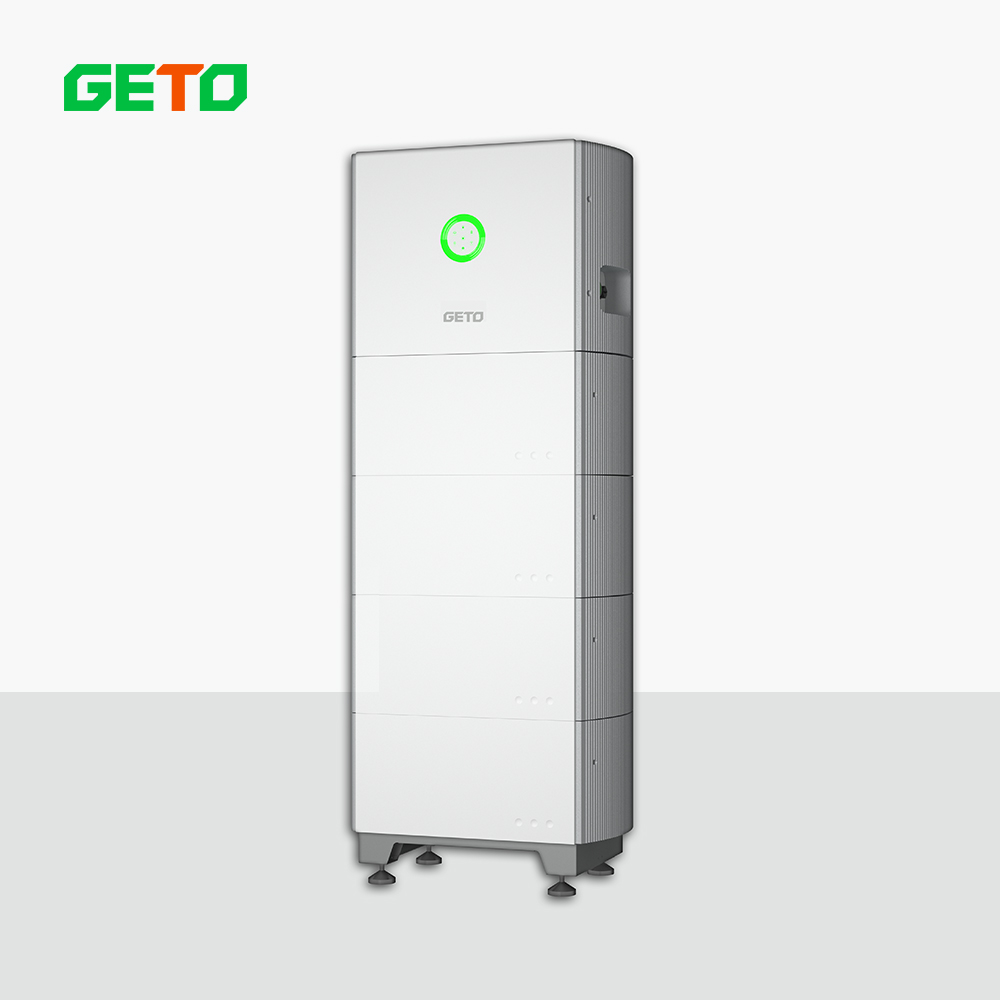

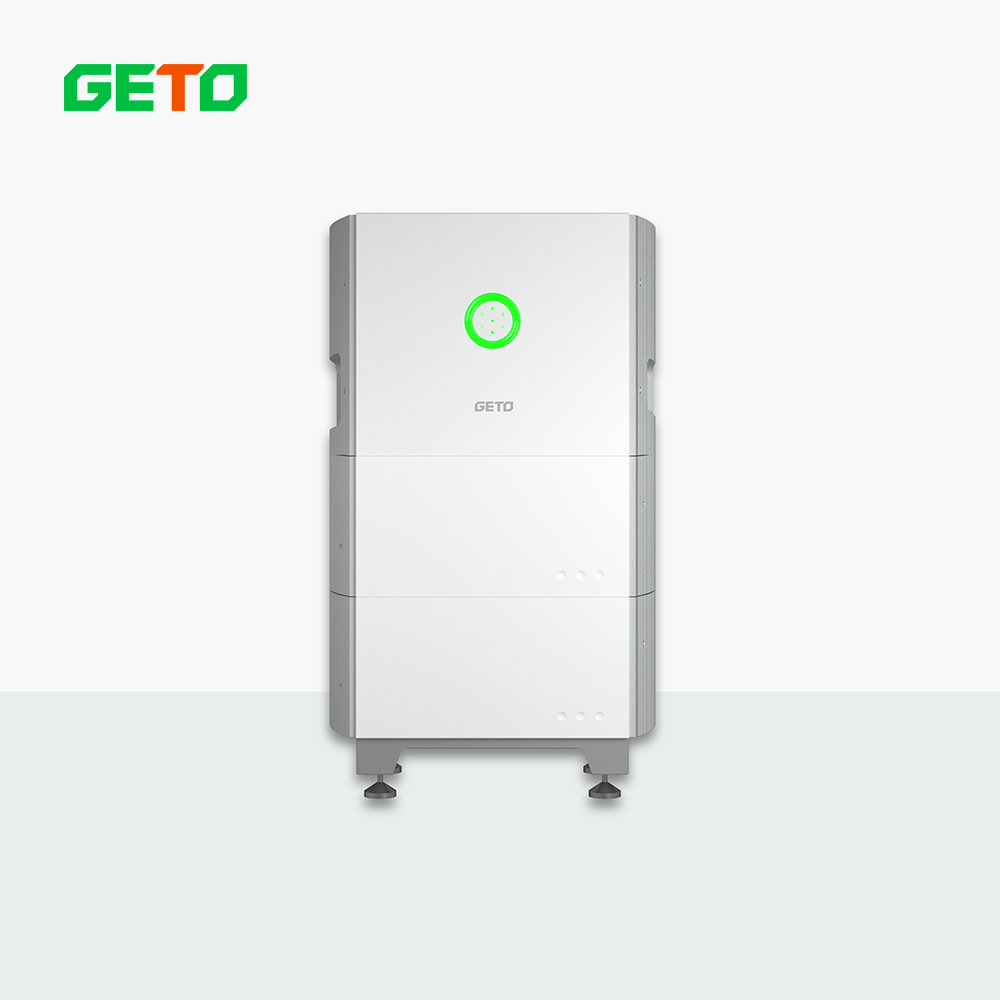

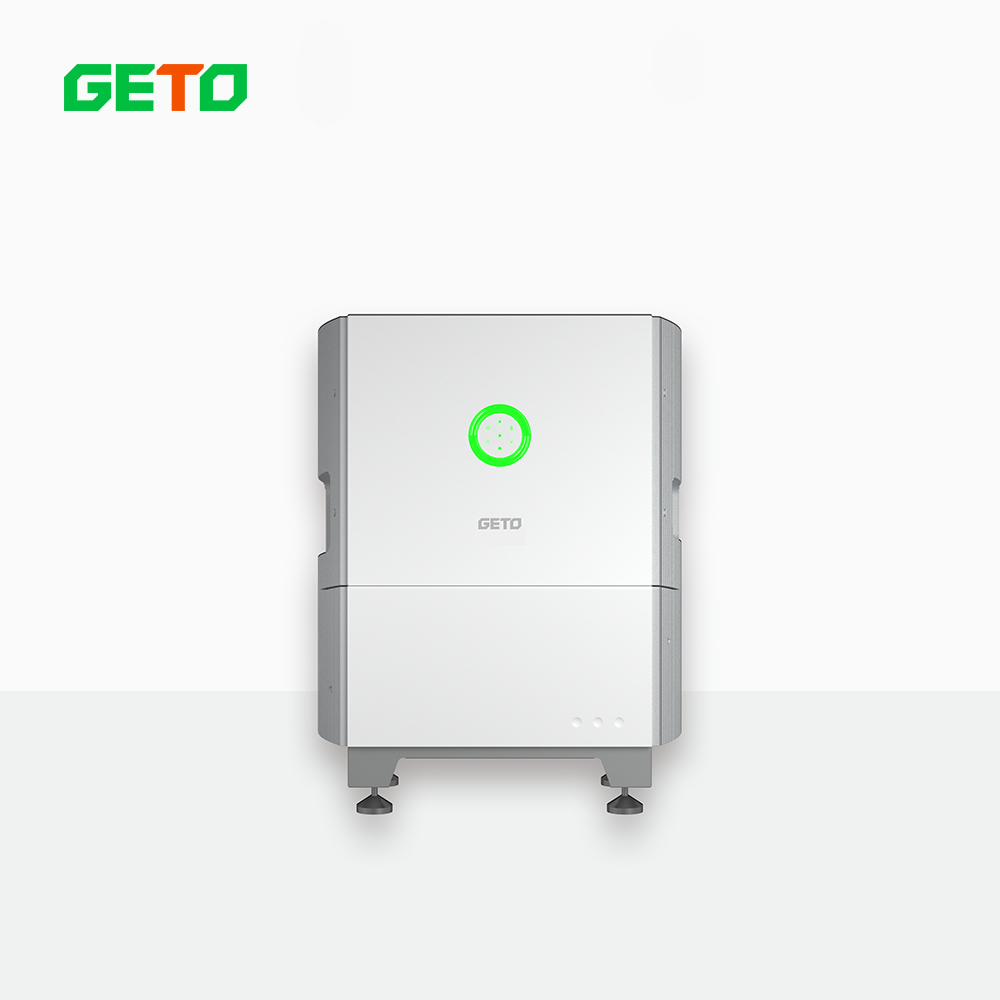

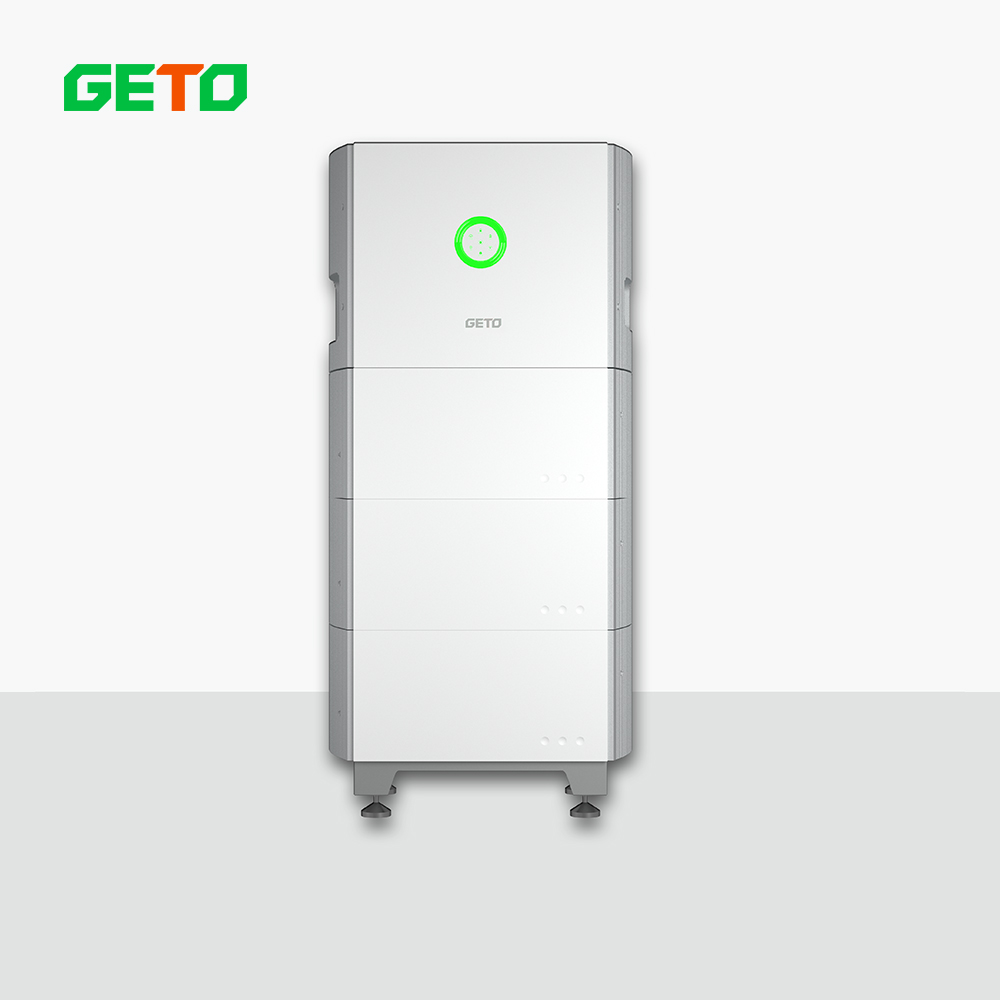

HS2 Single Phase All-in-one Solar Power System
Solar Hybrid all in one solar power system
Single phase (Three phase optional)
Stackable design / 102V 50AH each module
Grade A+ NEW LiFePO4 battery cell
Inverter Option: 3KW/3.6KW/4KW/4.6KW/5KW/6KW

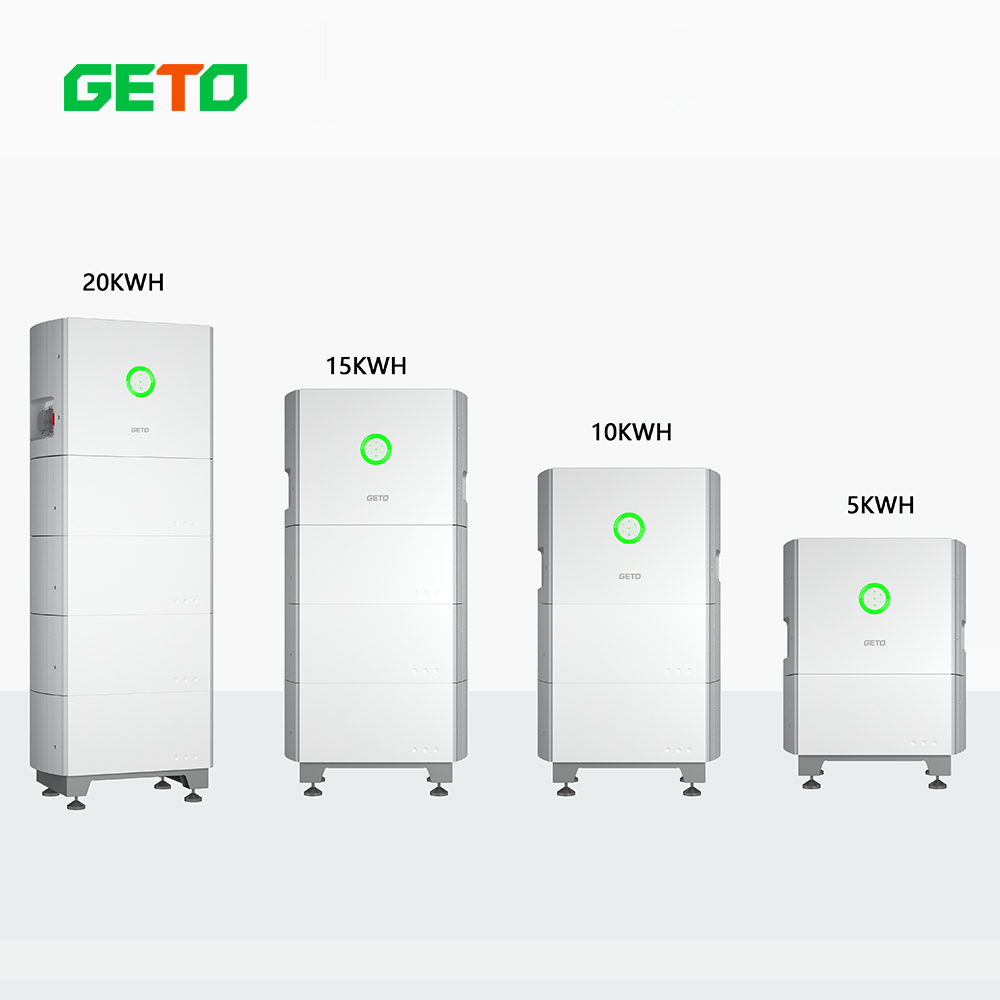

Battery Option: 5KWH/10KWH/15KWH/20KWH
Others: IP65 / 5 Years Warranty / Smart Energy Management
HS2 Series----- All in One Solar Power System

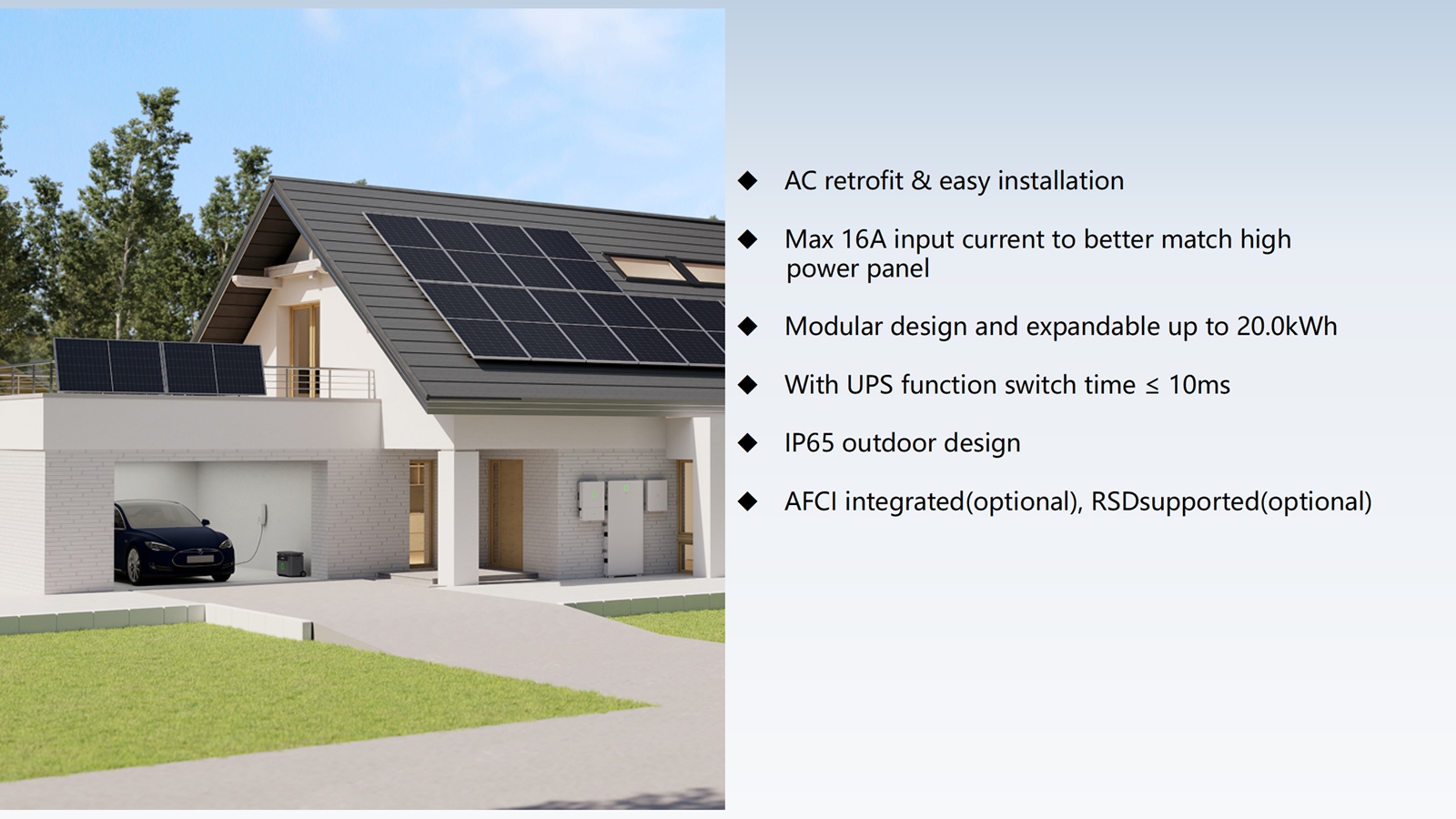

Geto first all-in-one solution for residential energy storage system, integrated PCS, BMS and battery, with module and IP65 design, no external wire, suitable for outdoor easy installation. HS2 covers from 3-6kW, 2 MPPTs and single phase grid.

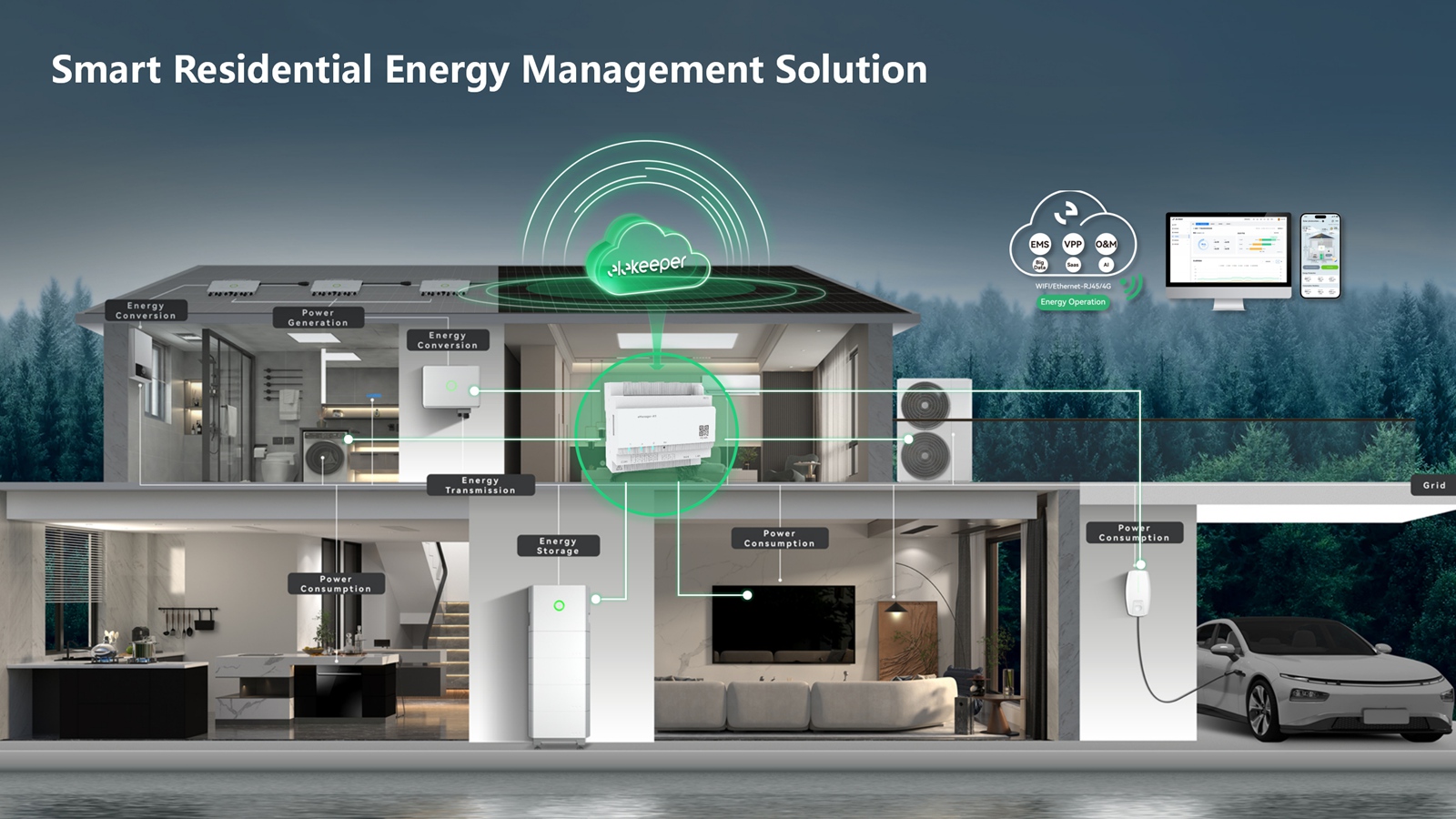

Smart All in One Solar Energy Management Solution Plus: HS2 Series
The eleX residential energy management solution, powered by advanced Al-based technology eManager, is specifically designed for residential scenario and offers a holistic software and hardware integration solution that covers energy generation, storage, consumption, and operation, enabling effective closed-loop energy management and operation within residential settings. By leveraging three core algorithms - power generation prediction, load prediction, and optimal energy utilization strategy - eleX can achieve Al-driven energy savings by 20% with just one click, helping users minimize energy costs while maximizing return on investment.
Smart Residential Energy Projects Display
PRODUCT SPECIFICATION
| Max. PV Array Power [Wp]@ STC | 4500 | 5400 | 6000 | 6900 | 7500 | 7500 | 9000 | 9000 |
| Max. DC Voltage [V] | 550 | |||||||
| MPPT Voltage Range [V] | 90～500 | |||||||
| Rated DC Voltage [V] | 360 | |||||||
| Start Voltage [V] | 100 | |||||||
| Max. DC Input Current [A] | 16/16 | |||||||
| Max. DC Short Circuit Current [A] | 19.2/19.2 | |||||||
| No. of MPPT | 2 | |||||||
| Battery Type | LiFePO4 | |||||||
| Battery Voltage Range [V] | 85～450 | |||||||
| Max. Charging/ Discharging Current [A] | 30/30 | |||||||
| Scalability | BU2-5.0-HV1/5 (up to 4 battery modules) | |||||||
| Rated AC Power [W] | 3000 | 3680 | 4000 | 4600 | 5000 | 5000 | 5500 | 6000 |
| Max. Apparent Power [VA] | 3300 | 3680 | 4400 | 4600 | 5500 | 5000 | 5500 | 6000 |
| Rated Output Current [A]@ 230Vac | 13.0 | 16.0 | 17.4 | 20.0 | 21.7*1 | 21.7 | 25.0 | 26.1 |
| Max. Output Current [A] | 15.0 | 16.0 | 20.0 | 20.0 | 25.0 | 22.7 | 25.0 | 27.3 |
| Current Inrush [A] | 100.0 | |||||||
| Max. AC Fault Current [A] | 55.0 | |||||||
| Max. AC Over Current Protection [A] | 55.0 | |||||||
| Rated AC Voltage/ Range [V] | L+N+PE, 220,230,240/180～280 | |||||||
| Rated Output Frequency/ Range [Hz] | 50,60/45～55,55～65 | |||||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | |||||||
| Total Harmonic Distortion [THDi] | <3%<> | |||||||
| Rated AC Voltage/ Range [V] | L+N+PE, 220,230,240/180～280 | |||||||
| Rated Input Frequency [Hz] | 5,060 | |||||||
| Max. Input Current [A]@ 230Vac | 26.1 | 32.0 | 34.8 | 40.0 | 43.5 | 43.5 | 52.2 | 52.2 |
| Max. Output Power [VA] | 3000 | 3680 | 4000 | 4600 | 5000 | 5000 | 5500 | 6000 |
| Max. Output Current [A] | 13.6 | 16.7 | 18.2 | 20.9 | 22.7 | 22.7 | 25.0 | 27.3 |
| Peak Output Apparent Power [VA] | 3600,60s | 4416,60s | 4800,60s | 5520,60s | 6000,60s | 6000,60s | 7200,60s | 7200,60s |
| Rated AC Voltage/Range [V] | L+N+PE, 220,230,240/180～280 | |||||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||||
| Output THDv (@ Linear Load) | < 3% | |||||||
