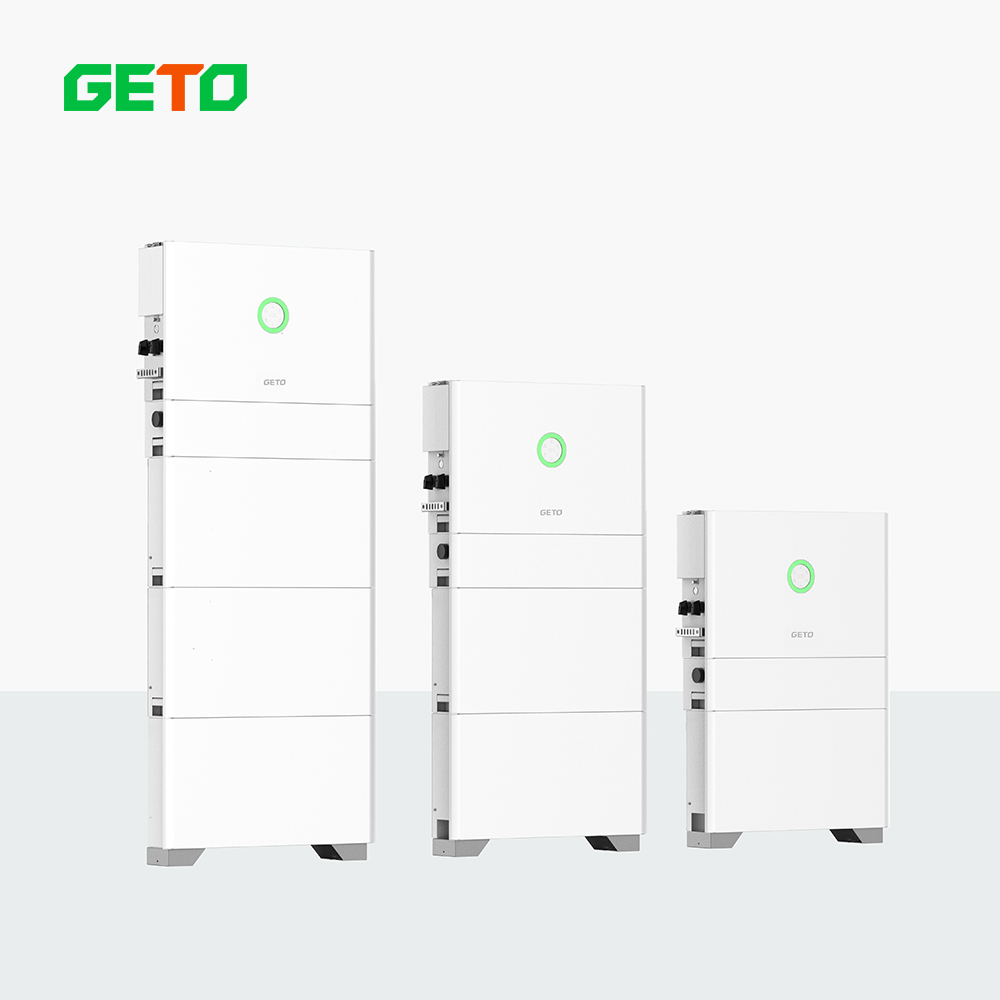

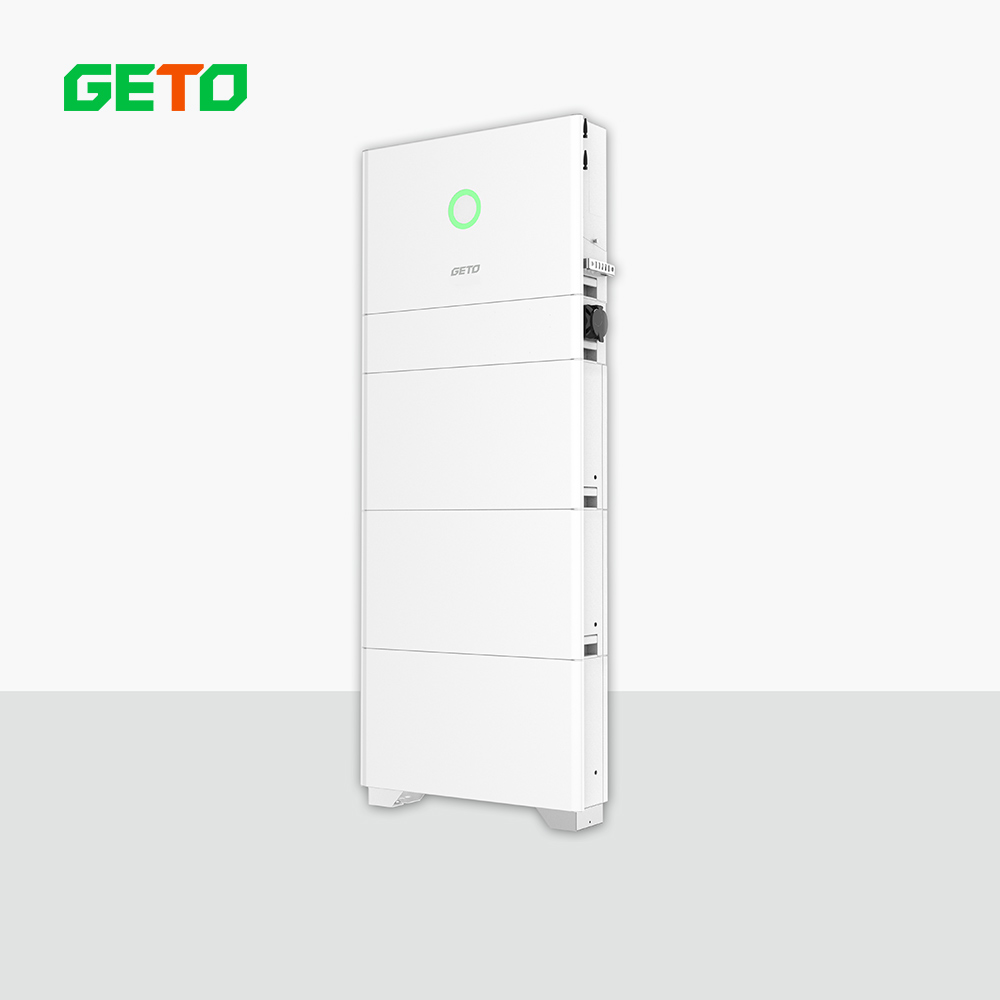

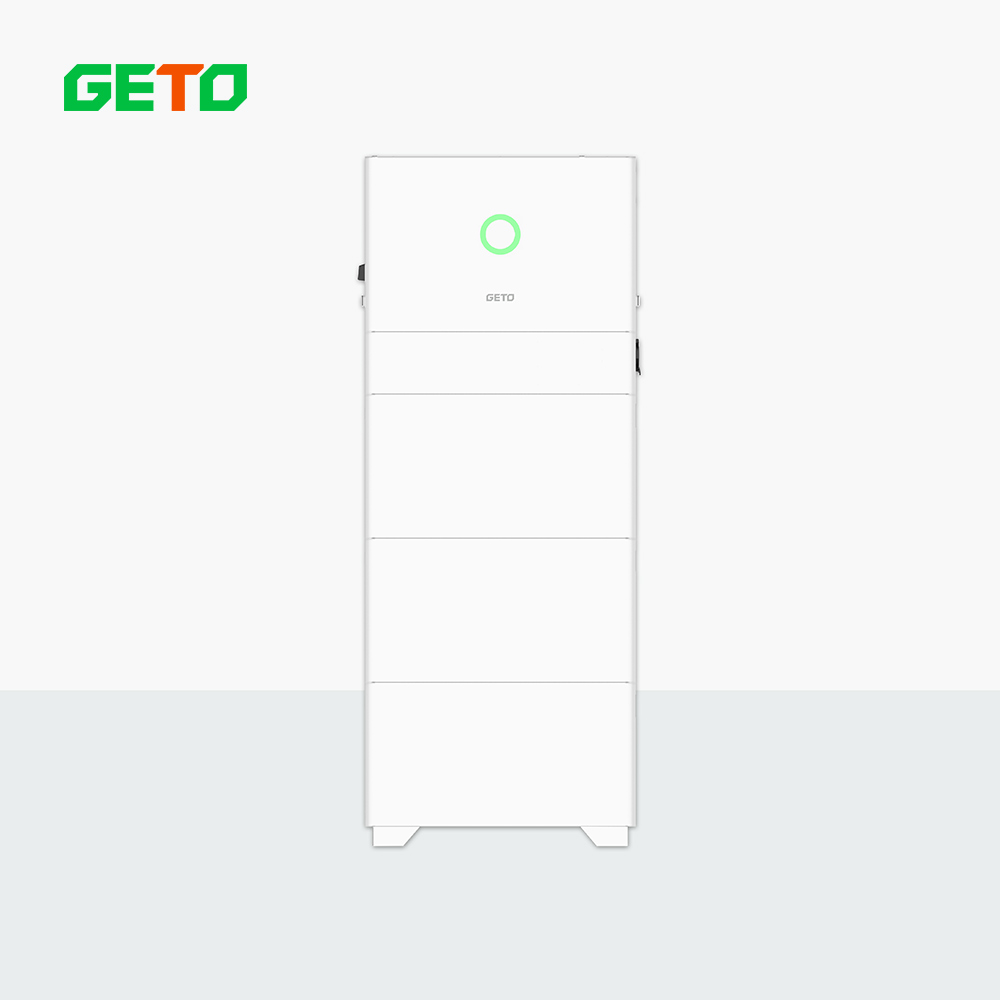

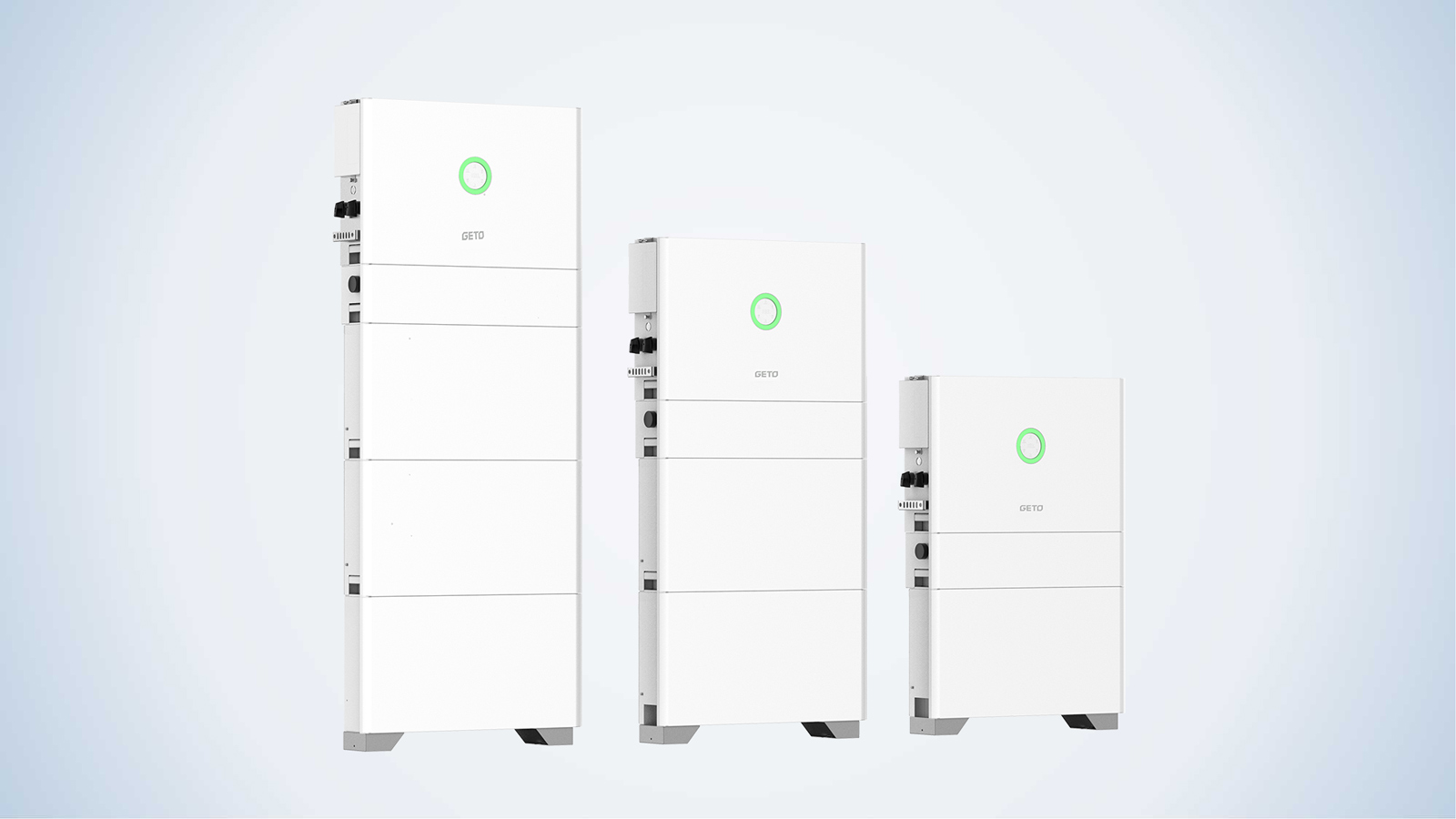

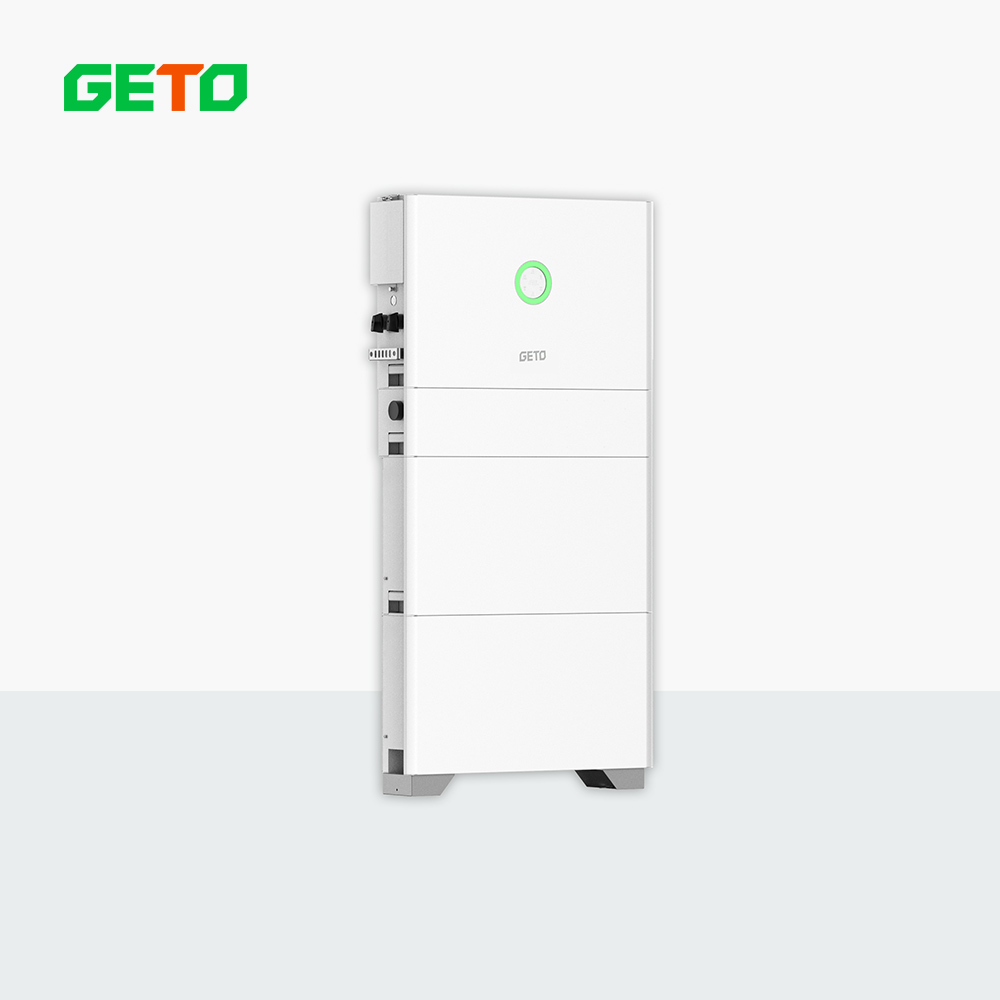

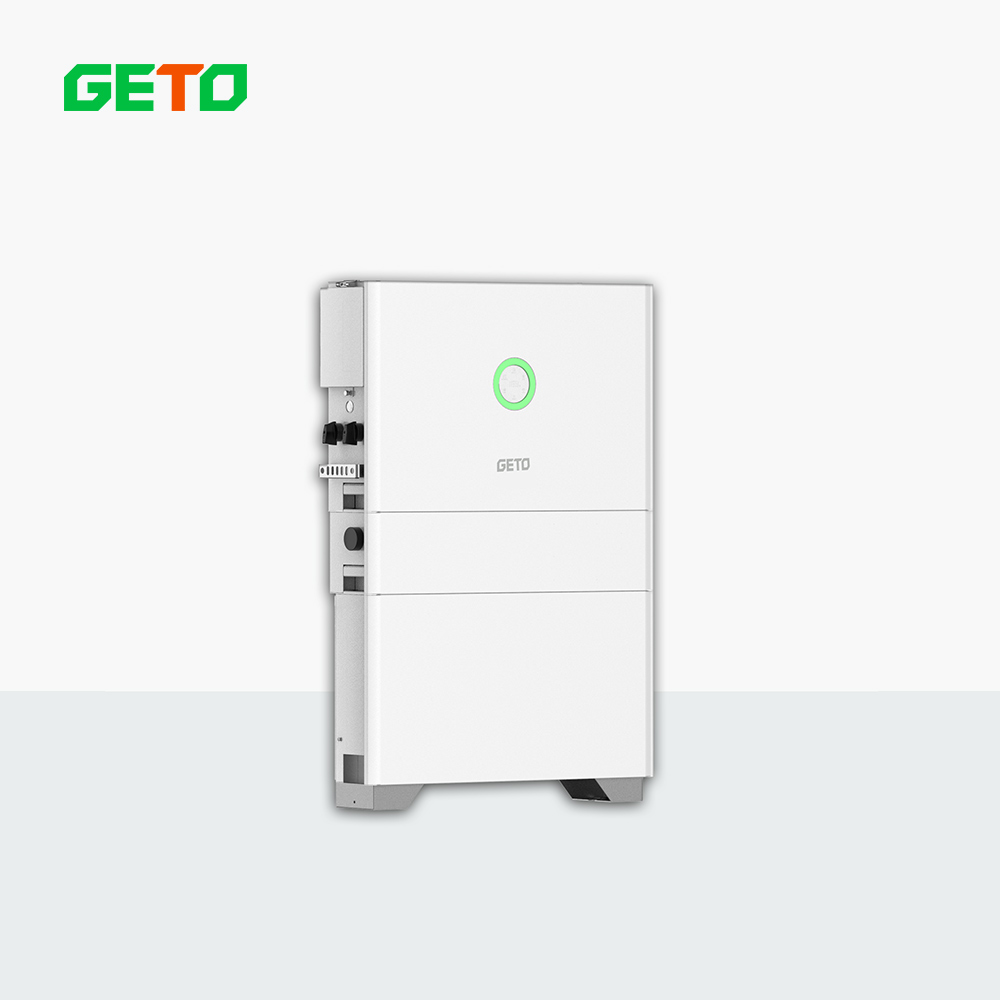

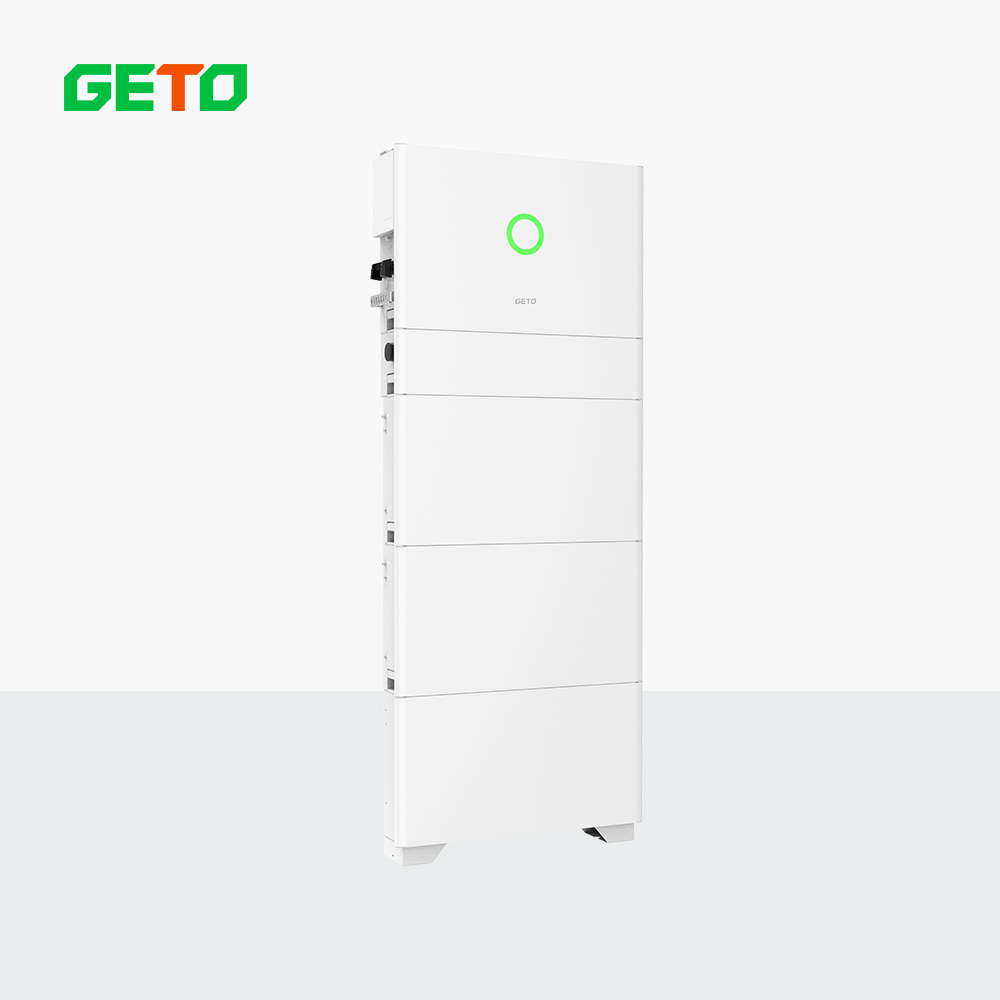

HS3 Single Phase All-in-one Solar Power System
Solar Hybrid all in one solar power system
Single phase ( Three phase optional)
Stackable design/ 102V 50AH each module
Grade A+ NEW LiFePO4 battery cell
Inverter Option: 3KW/3.6KW/4KW/4.6KW/5KW/6KW
Battery Option: 5KWH/10KWH/15KWH/20KWH/25KW/30KW/35KW/40KWH
Others: IP65 / 5 Years Warranty / Smart Energy Management

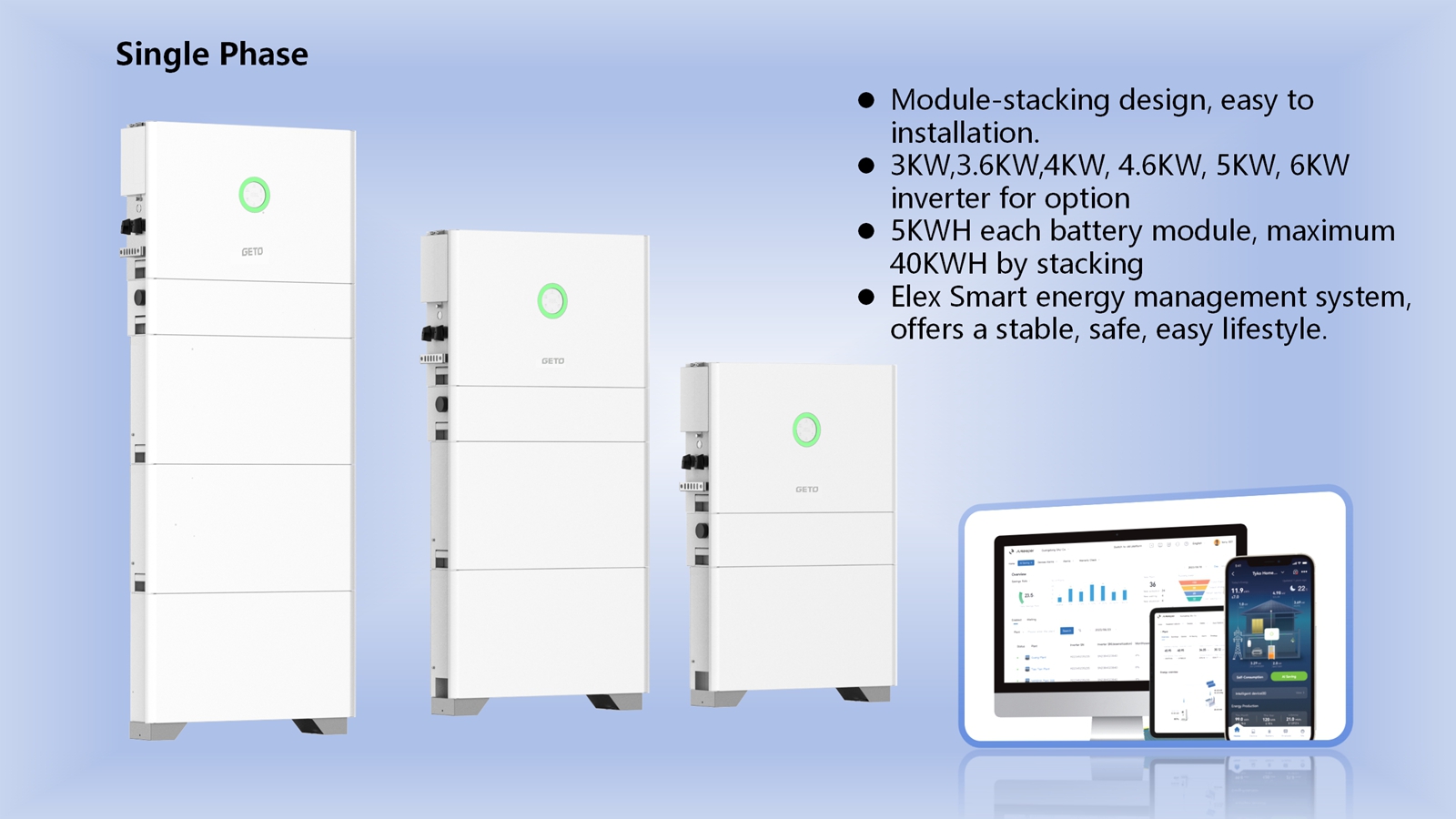

HS3 Series----- All in One Solar Power System

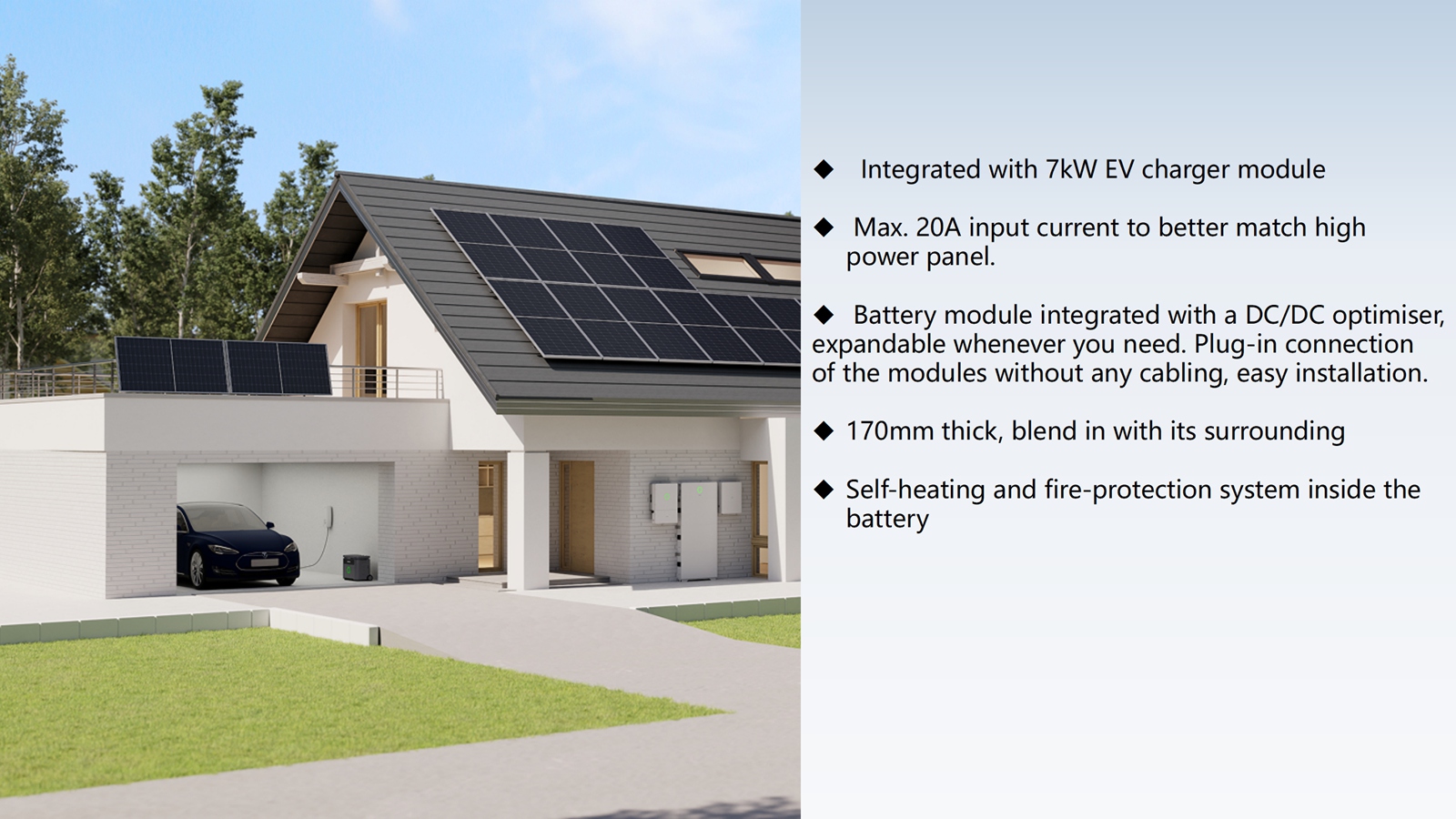

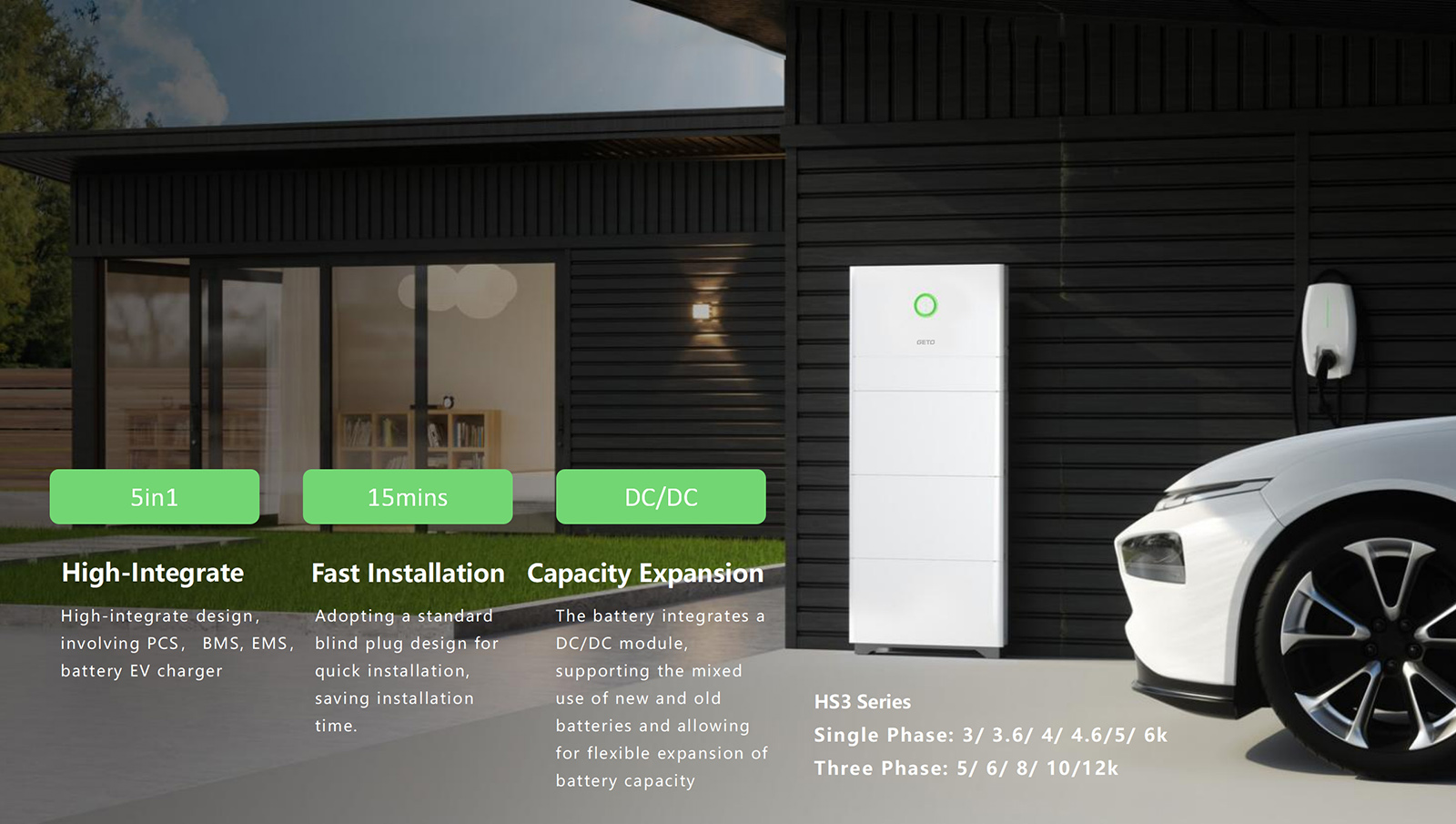

Geto latest all-in-one solution for residential energy storage system, integrated PCS, BMS, EMS, EV charger and battery, with plug-in play design, IP65 design and only 12 screws, making the installation a lot easier. HS3 covers from 3-6kW, 2 MPPTs and single phase grid.

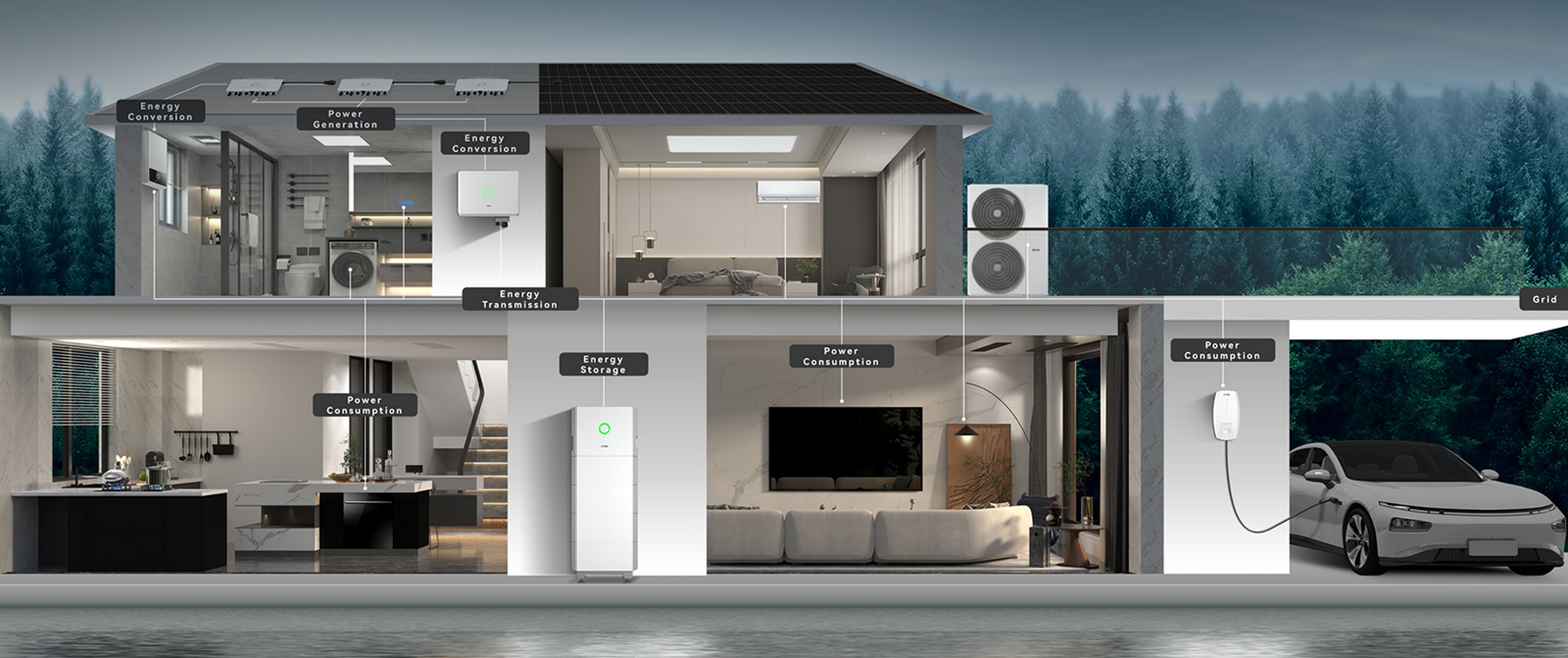

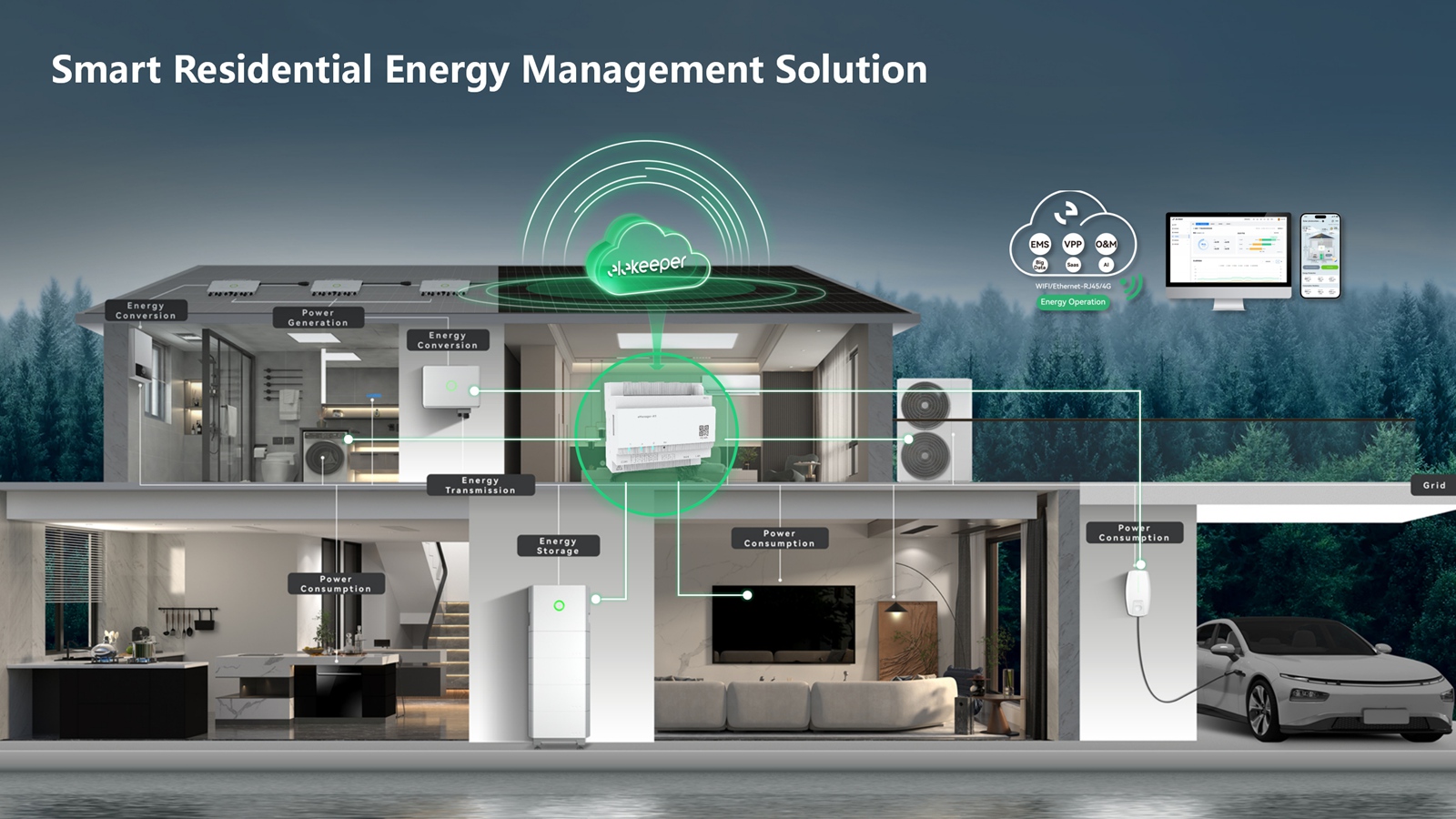

Smart All in One Solar Energy Management Solution Plus: HS3 Series

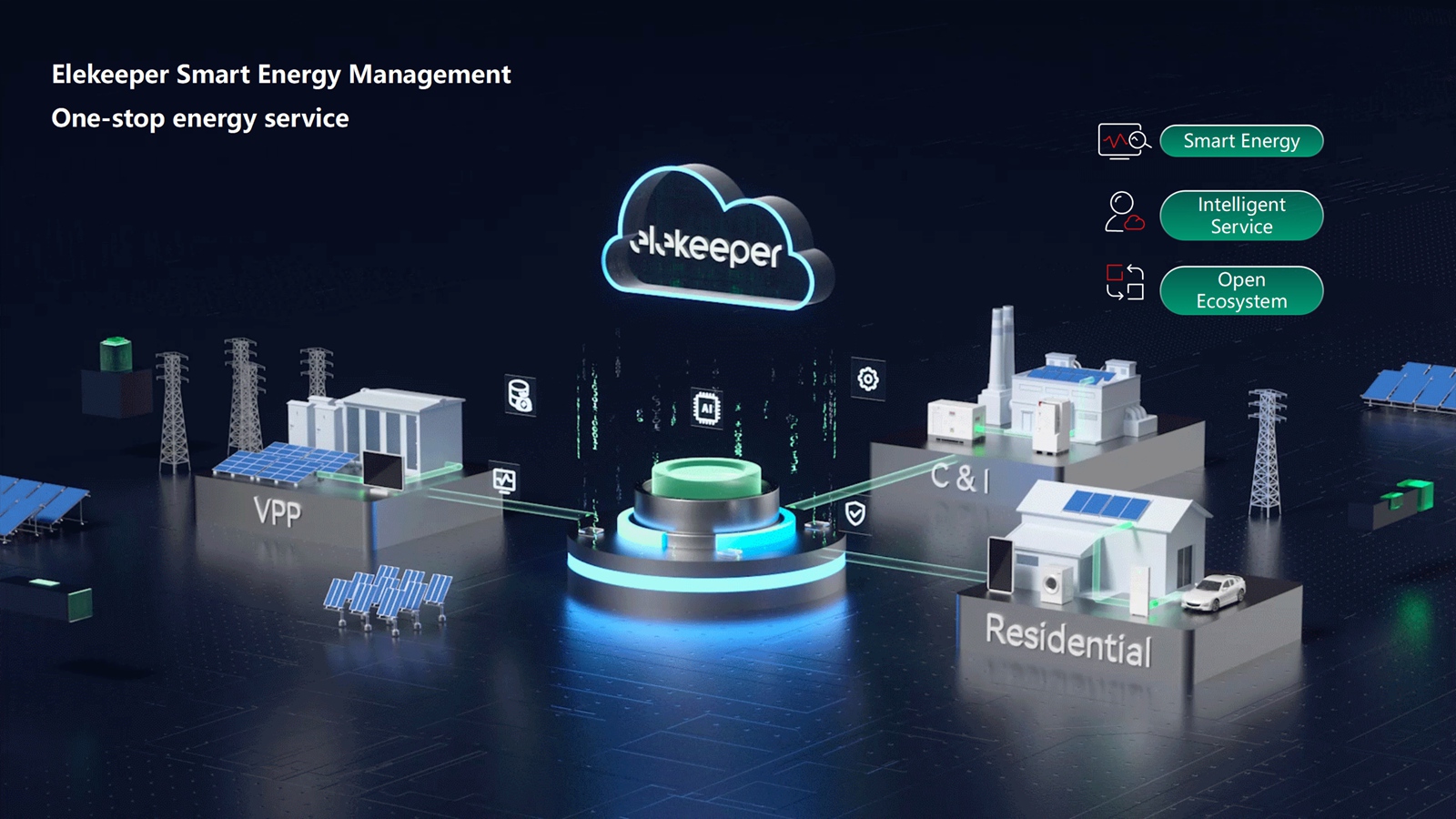

The eleX residential energy management solution, powered by advanced Al-based technology eManager, is specifically designed for residential scenario and offers a holistic software and hardware integration solution that covers energy generation, storage, consumption, and operation, enabling effective closed-loop energy management and operation within residential settings. By leveraging three core algorithms - power generation prediction, load prediction, and optimal energy utilization strategy - eleX can achieve Al-driven energy savings by 20% with just one click, helping users minimize energy costs while maximizing return on investment.

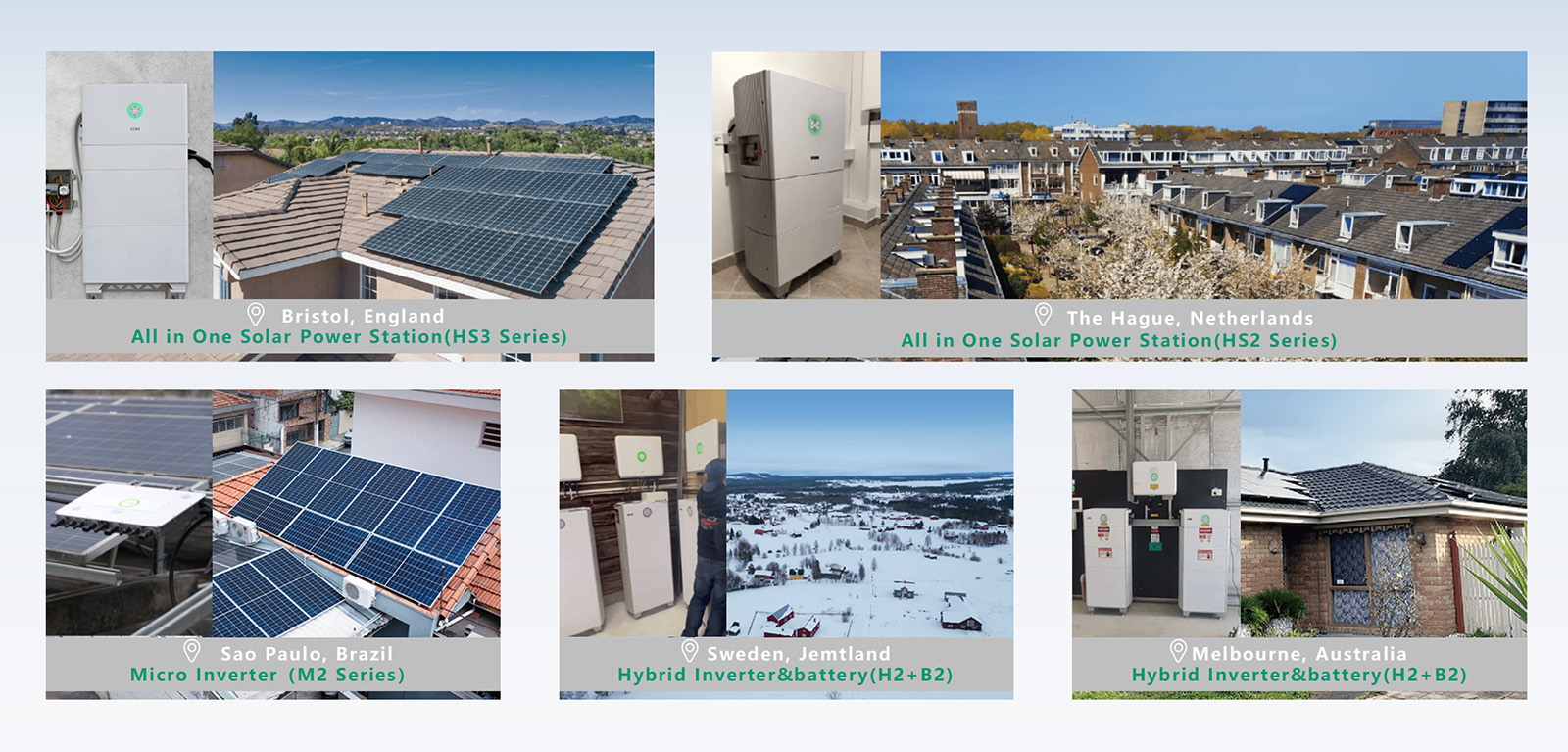

Smart Residential Energy Projects Display
PRODUCT SPECIFICATION
| Module | HS3-3K-S2-W/4G-P | HS3-3.6K-S2-W/4G-P | HS3-4K-S2-W/4G-P | HS3-4.6K-S2-W/4G-P | HS3-5K-S2-W/4G-P | HS3-6K-S2-W/4G-P |
| Max. PV Array Power [Wp]@STC | 6000 | 7200 | 8000 | 9200 | 10000 | 12000 |
| Max. DC Voltage [V] | 600 | |||||
| MPPT Voltage Range [V] | 90~550 | |||||
| Rated DC Voltage [V] | 360 | |||||
| Start Voltage [V] | 100 | |||||
| Max. DC Input Current [A] | 20/20 | |||||
| Max. DC Short Circuit Current [A] | 24/24 | |||||
| No. of MPPT | 2 | |||||
| Rated AC Power [W] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 |
| Max. Apparent Power [VA] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 |
| Rated Output Current [A]@230Vac | 13.0 | 15.7 | 17.4 | 20.0 | 21.7 | 26.1 |
| Max. Output Current [A] | 13.6 | 16.4 | 18.2 | 20.9 | 22.7 | 27.3 |
| Max. Input Current [A]@230Vac | 26.1 | 32.0 | 34.8 | 40.0 | 43.5 | 52.2 |
| Rated AC Voltage/Range [V] | L+N+PE, 220, 230, 240/180～280 | |||||
| Rated Output Frequency/Range [Hz] | 50, 60/45～55, 55～65 | |||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | |||||
| Total Harmonic Distortion [THDi] | < 3% | |||||
| Battery Type | LiFePO4 | |||||
| Battery Voltage Range[V] | 350～500 | |||||
| Max. Charging/Discharging Current [A] | 20/20 | |||||
| Scalability | BU3-5.0-TV2-PRO (up to 8 battery modules) | |||||
| Rated Output Power [W] | 3000 | 3680 | 4000 | 4600 | 5000 | 6000 |
| Peak Output Apparent Power [VA] | 3600,60s | 4416,60s | 4800,60s | 5520,60s | 6000,60s | 7200,60s |
| Rated AC Voltage/Range [V] | L+N+PE, 220,230,240/180～280 | |||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||
| Output THDv (@ Linear Load) | < 3% | |||||
